9 MECHANICAL ADJUSTMENTS
42 Planmeca ProX Technical manual

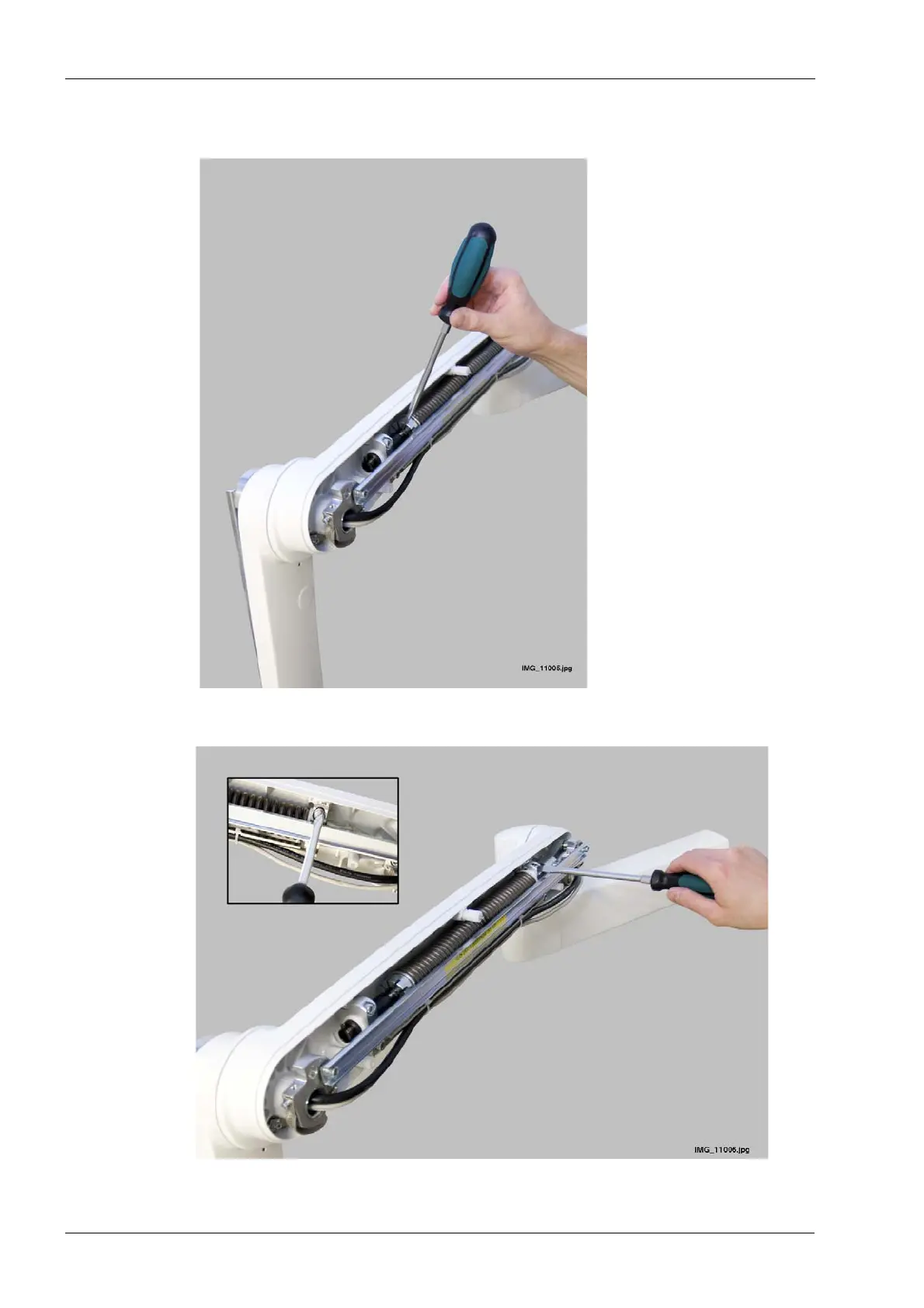

Adjust the balance of the arm by turning the adjustment nuts with a slot head screwdriver.
Tightening the nut will increase the tension.
If needed, increase the arm friction after adjusting the balance with the adjustment screw
using a slot head screwdriver. Tightening the screw will increase the friction.
