10 PARTS REPLACEMENT & REPAIR
46 Planmeca ProX Technical manual

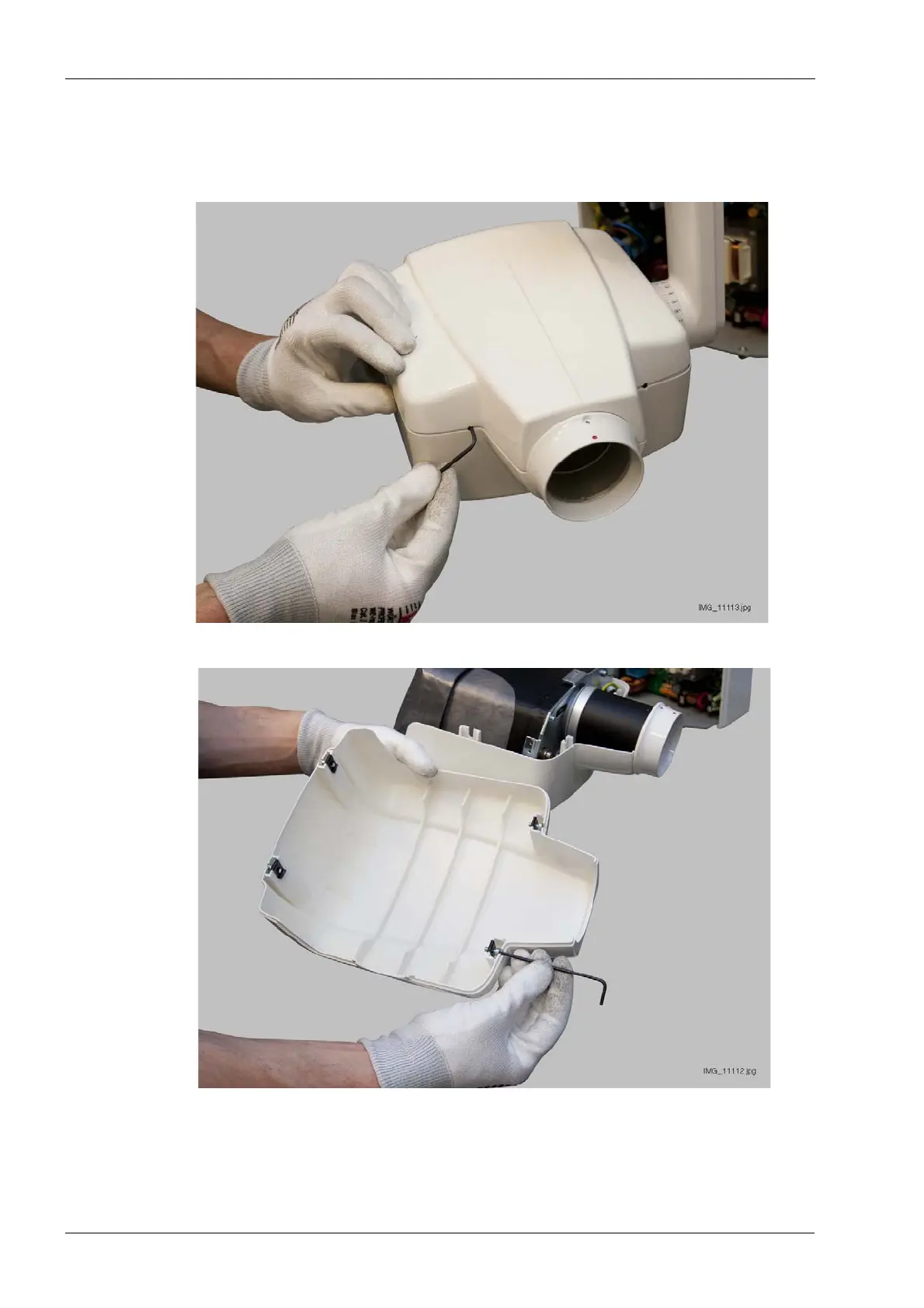

10.2 Removing tube head covers
1. Disconnect the X-ray unit from the mains or switch off the power supply.
2. Loosen four attachment screws of the upper cover using a 2.5 mm Allen key.
3. Lift off the upper cover.
