Planmeca ProX Technical Manual

10 PARTS REPLACEMENT & REPAIR
Technical manual Planmeca ProX 57
8. Connect the power supply cable to the Generator PCB. Secure the wires with a cable tie.

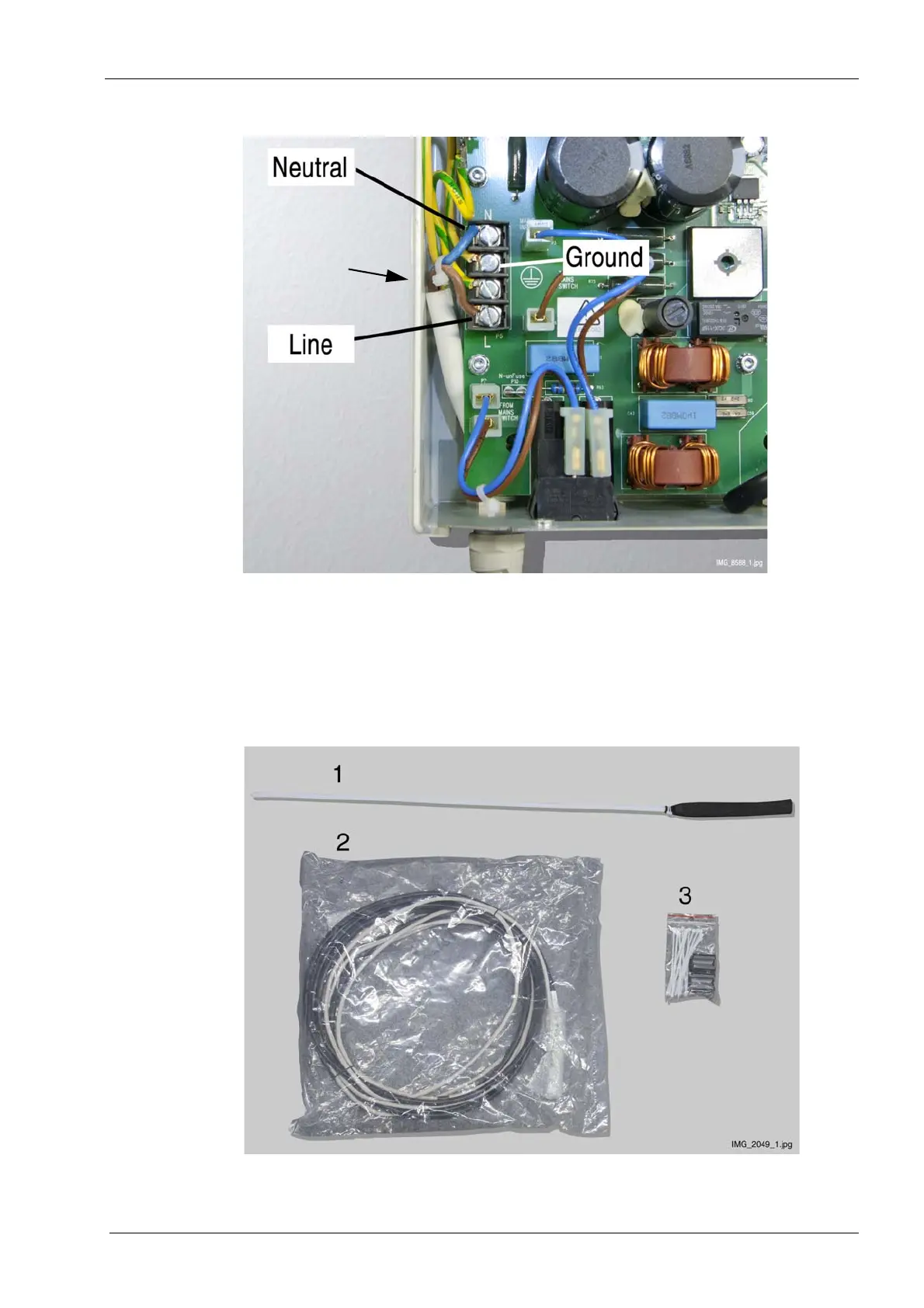

Figure 1
9. Attach the generator housing to its position.
10.10 Replacing arm cable
1. Disconnect the X-ray unit from the mains or switch off the power supply.
2. The arm cable kit includes drawing tool (1), arm cables (2) and cable ties and ferrite (3).
Cable tie

Planmeca ProX Specifications

General

Type	Intraoral X-ray
Tube current	7 mA
Imaging Technology	Digital
Focal spot	0.4 mm
X-ray generator	High-frequency
Power Requirements	100–240 V AC, 50/60 Hz
Tube voltage	60-70 kV
