9 MECHANICAL ADJUSTMENTS
44 Planmeca ProX Technical manual

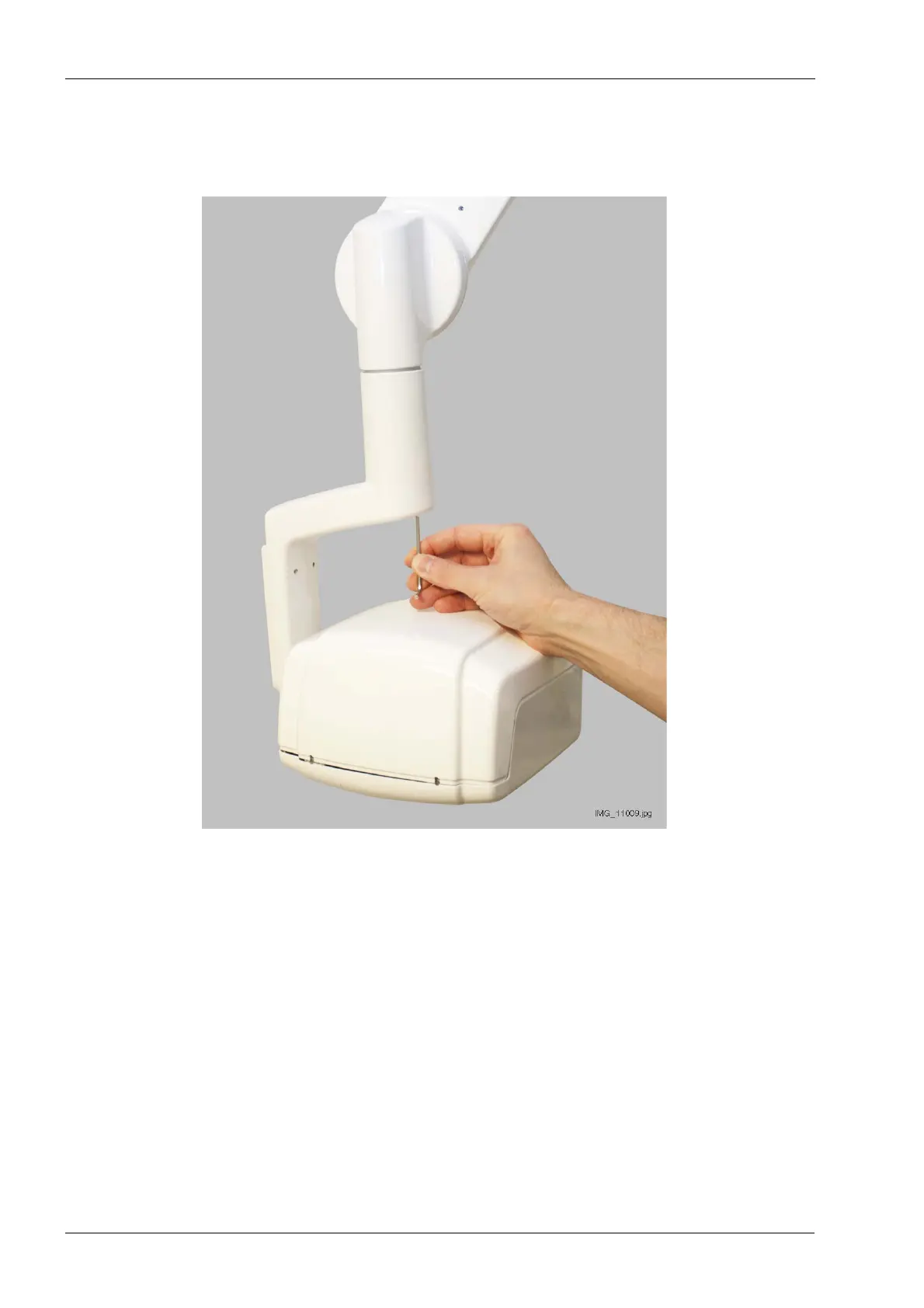

9.4 Adjusting tube head arm’s rotational friction
Adjust the friction with one adjustment screw located below the arm curve using a 3 mm
Allen key. Tightening the screw will increase the friction.
