10 PARTS REPLACEMENT & REPAIR
48 Planmeca ProX Technical manual

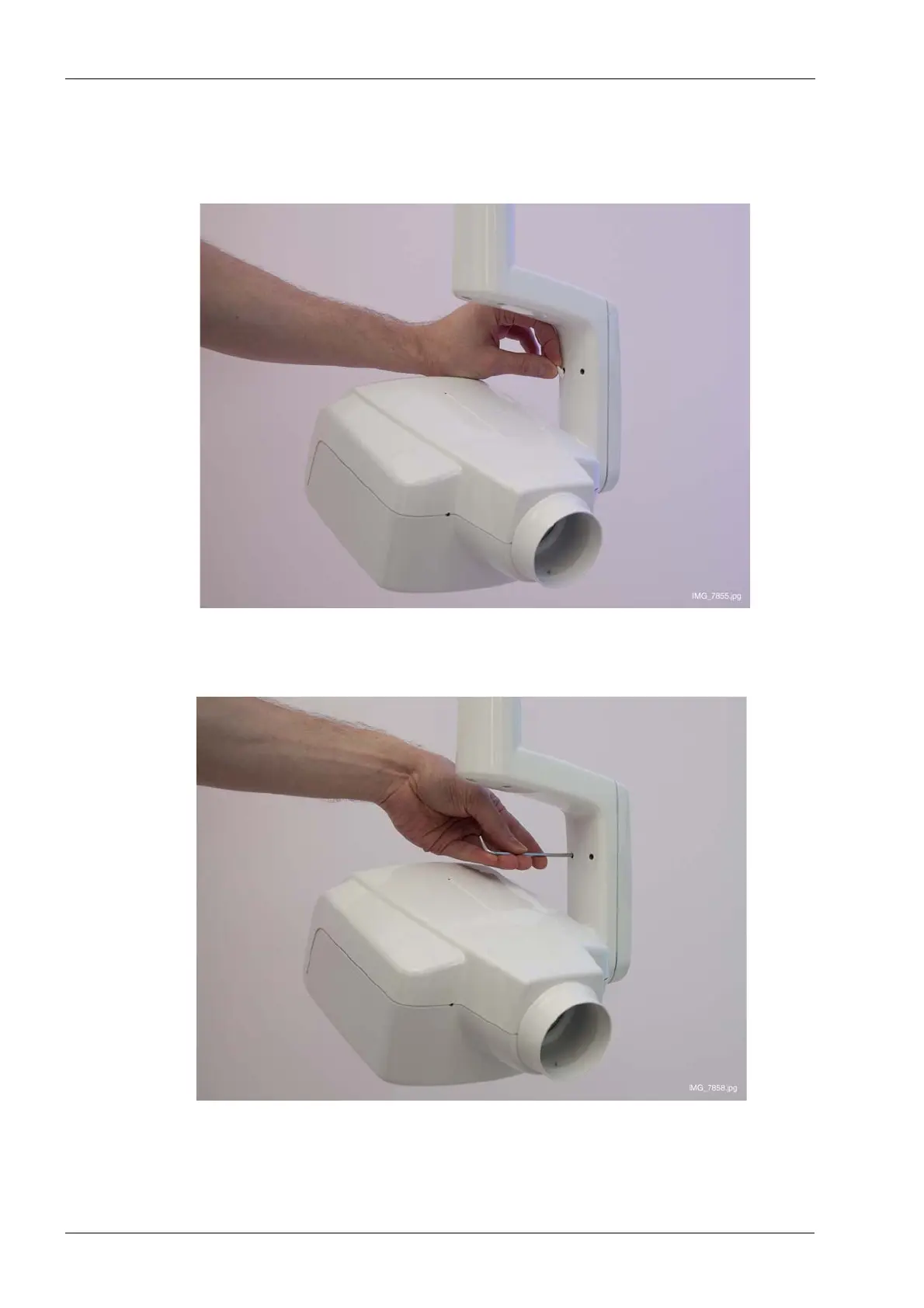

10.3 Removing tube head support cover
1. Disconnect the X-ray unit from the mains or switch off the power supply.
2. Remove the cover plugs from the tube head support.
3. Loosen the tube head support cover attachment screws using a 3 mm Allen key and
remove the cover.
