6 PREVENTIVE MAINTENANCE
Technical manual Planmeca ProX 31
Adjust if needed. Refer to section 9.4 “Adjusting tube head arm’s rotational friction” on
page 44.

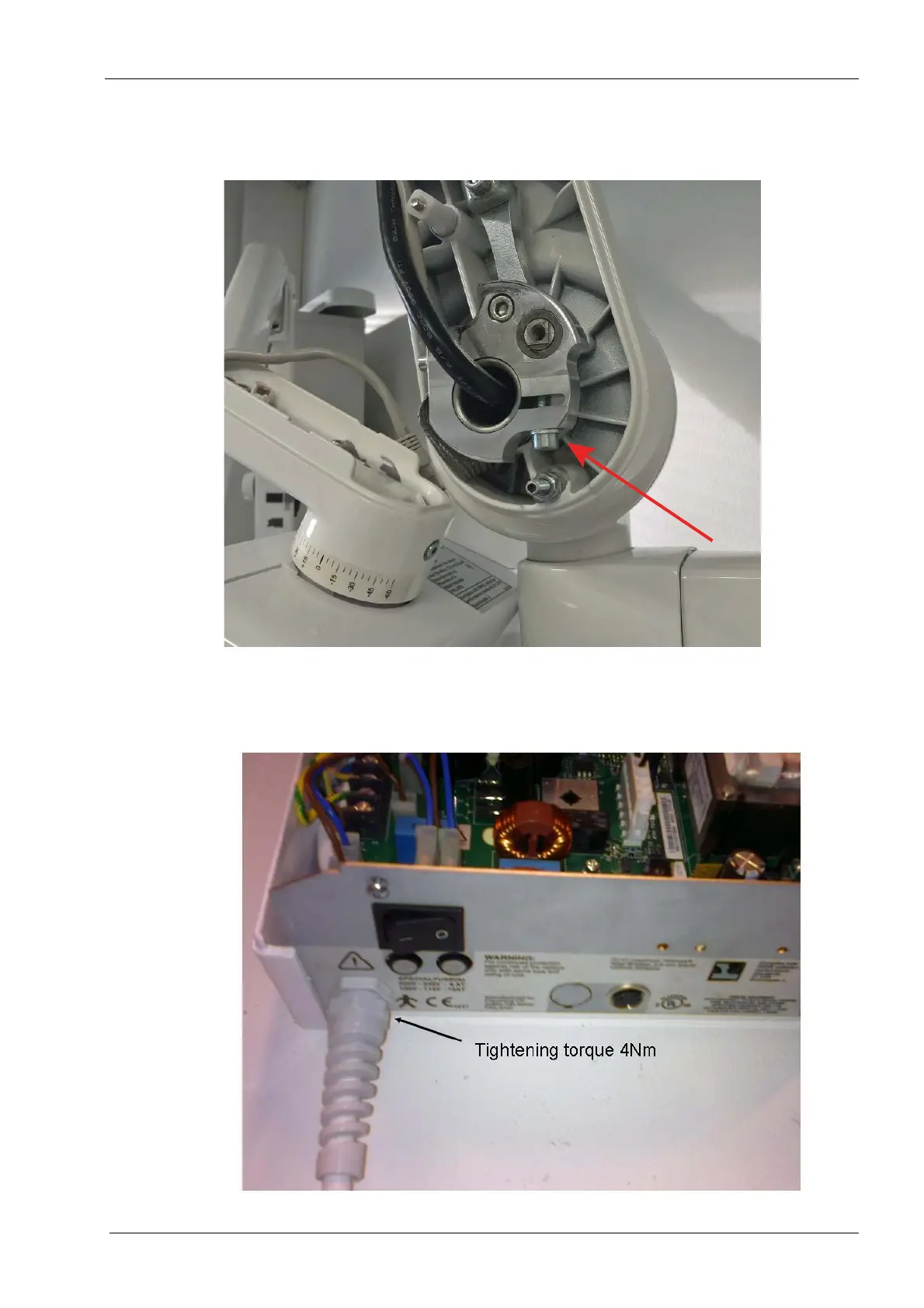

• Check and tighten the tightening screw for 10 Nm torque if needed
6.4 Power supply cable
Check the strain relief of the power supply cable. The tightening torque must be 4 Nm.
