Planmeca ProX Technical Manual

10 PARTS REPLACEMENT & REPAIR
Technical manual Planmeca ProX 55
10.8 Replacing control panel cable
1. Disconnect the X-ray unit from the mains or switch off the power supply.

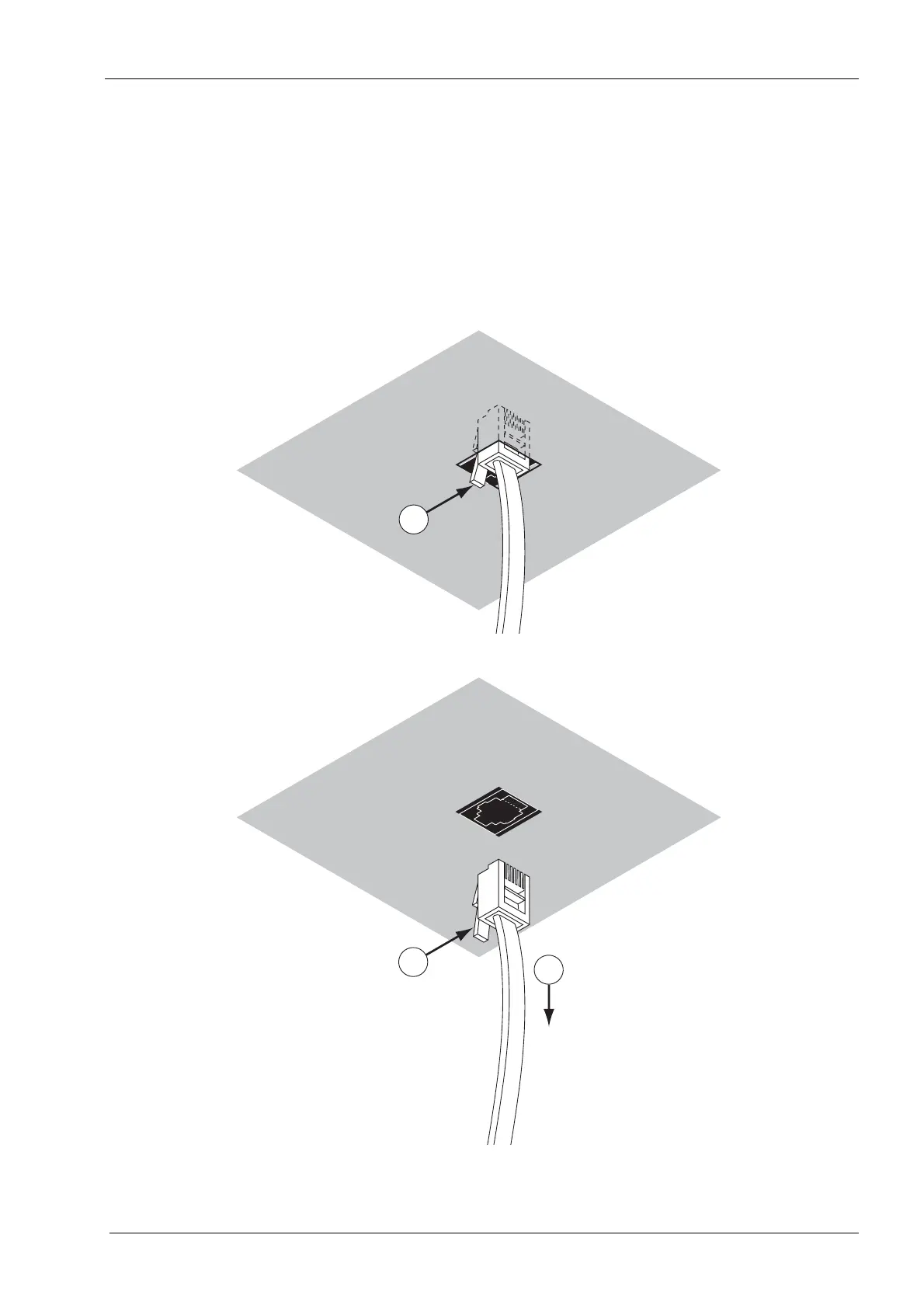

2. Press the clip of the connector (1) and pull the socket from the terminal of the generator
box (2).
3. Detach the connector from the control panel in the same way as from the generator box.
4. Connect the new cable to the generator box and to the control panel.
CAUTION
Do not connect any other equipment to the terminal of the generator box.
1
1
2

Planmeca ProX Specifications

General

Type	Intraoral X-ray
Tube current	7 mA
Imaging Technology	Digital
Focal spot	0.4 mm
X-ray generator	High-frequency
Power Requirements	100–240 V AC, 50/60 Hz
Tube voltage	60-70 kV
