INSTALLING THE CUSPIDOR
22 Planmeca Sovereign
Installation manual
Attach the anchors according to the manufacturer’s instructions.
CAUTION IMPORTANT: Tighten the anchors to torque 14 Nm with the torque wrench.
Move the cuspidor to its place. Position the dental unit according to the instructions given in
installation pattern supplied with the dental unit. Note, that the openings on the base are in
the direction of the chair legrest.

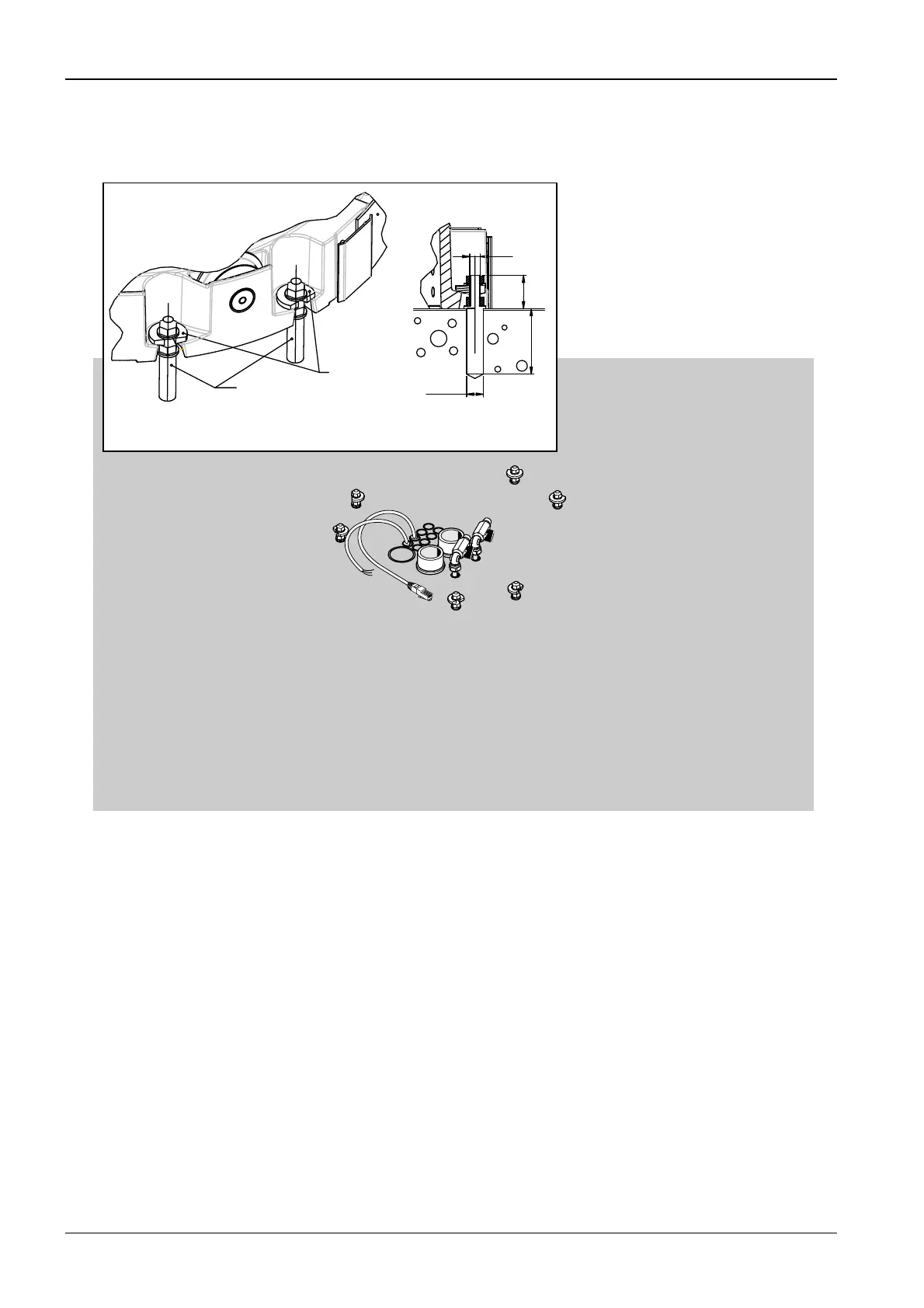

S77.eps
6 pcs 10014979
M8
28
(1.1")
Min 55
(2.2")
Ø14
(0.6")
6 pcs 10013744
6 pcs 00003003
6 pcs 00327031
