Trimmer, continued
1 Set counter
2 Exit drive lifting lever
3 Trimmer stop
4 Exit drive release
5 Exit compressing brackets
6 Infeed roller shaft
7 Trimmer fan
8 Transport belt
9 Upper trim knife

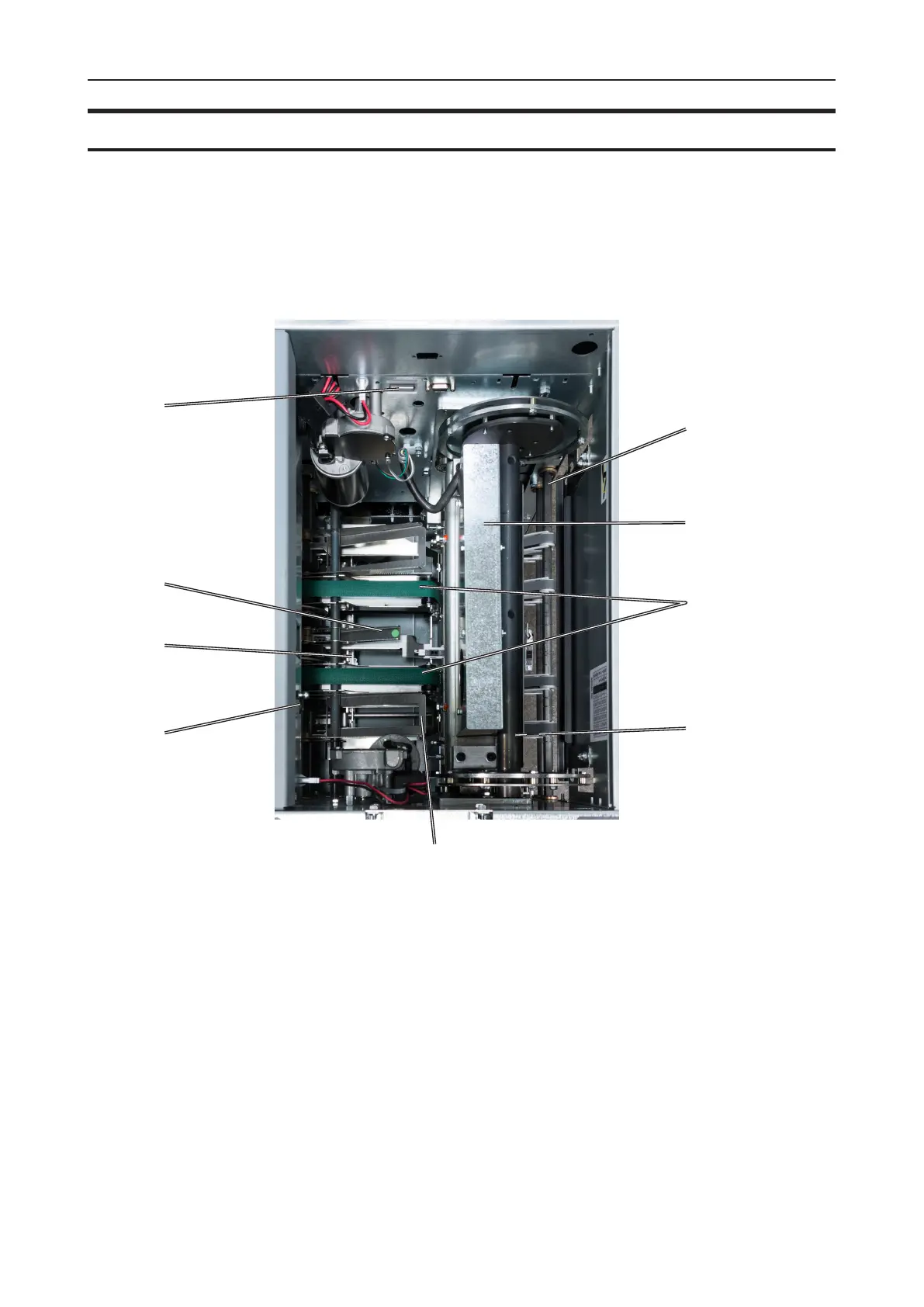

Trimmer, top view
Parts that are important for setup, adjustments, troubleshooting or maintenance are high-
lighted below.
