T10198 Operator Manual - Booklet Maker System BM2000 Generation 3 Rev. date: 5 June 2014
31
The belt is triggered by a signal from the Booklet Maker and will run for a set time.
The belt speed can be adjusted in order to optimize the stacking function for various mate-
rials.
The Run-out button is used to gather the material after a job is nished.
The belt then moves at the highest speed, independent of the speed setting.
The power switch is also used to reset the unit after an overload situation.

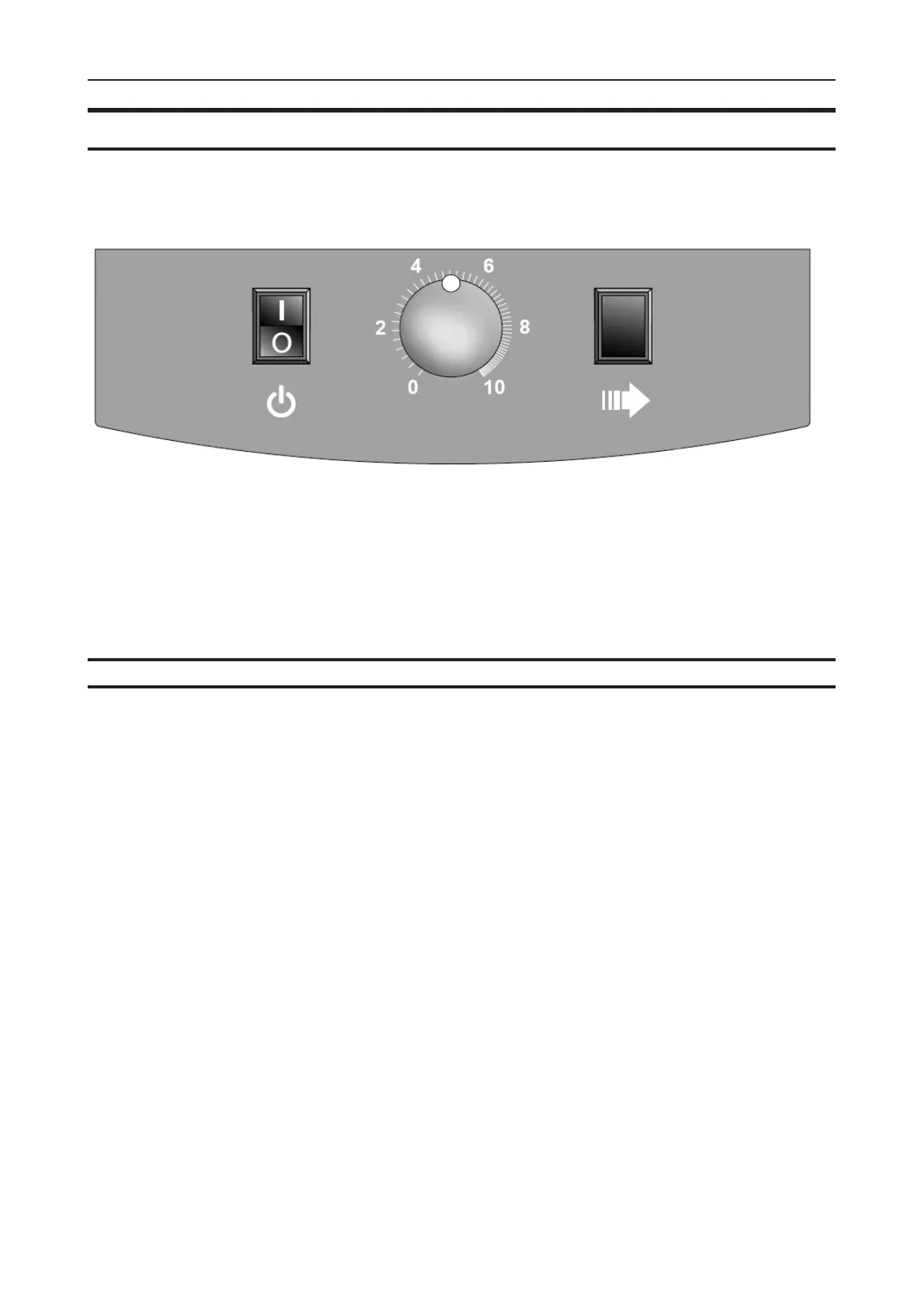

BST4000-1 Control Panel
BST4000-1 Principle of Operation
(1)
(2)
(3)
1. Power switch (on/off)
2. Belt speed selector
3. Run-out button (full speed)
1 Power switch (on/off)
2 Belt speed selector
3 Run-out button (full speed)
BST4000-1 Belt Stacker Module, continued
BST4000-1 Principle of Operation
The belt is triggered by a signal from the Booklet Maker and will run for a set time.
The belt speed can be adjusted in order to optimize the stacking function for various
materials.
The Run-out button is used to gather the material after a job is nished.
The belt then moves at the highest speed, independent of the speed setting.
The power switch is also used to reset the unit after an overload situation.
