T10198 Operator Manual - Booklet Maker System BM2000 Generation 3 Rev. date: 5 June 2014
The Stacker can be used in either right-angled or in-line conguration with the Booklet
Maker. In-line mode is preferred if running heavy and large booklets.

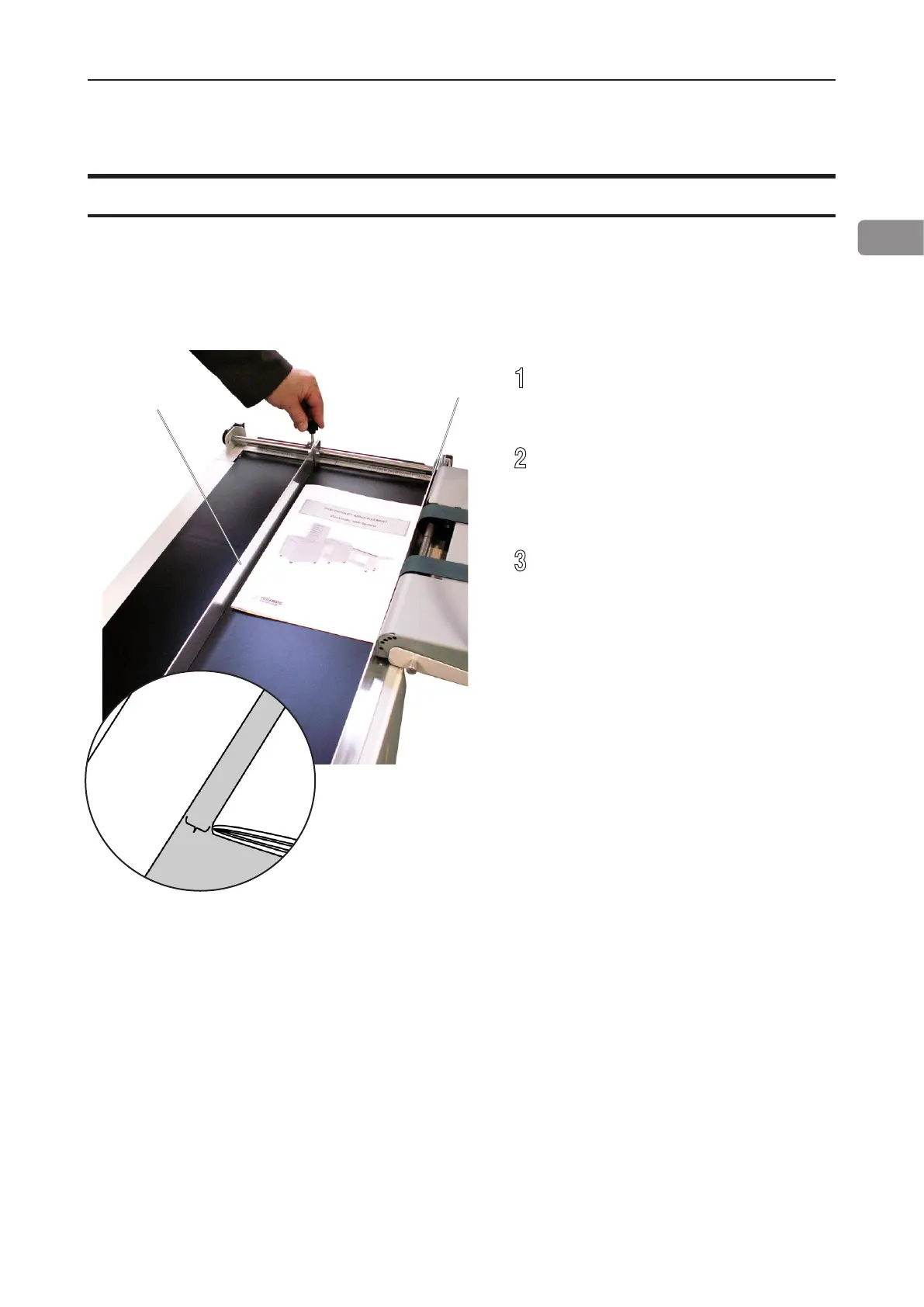

Setting up Belt Stacker for Right-Angled Mode
Follow these steps to correctly set up the Stacker
[A]
[B]
5 mm
Adjust the outer Side Guide [B]
to give at least 5 mm play.
Tighten the Side Guides at both
ends.
Adjust the stacking with belt
speed selector. See page
11.
Move the inner Side Guide [A]
as far as possible towards the
Booklet Maker.
Setting up Belt Stacker BST4000-1
1 Move the inner Side Guide [A] as
far as possible towards the Booklet
Maker.
2 Adjust the outer Side Guide [B] to
give at least 5mm (1/4”) play.
Tighten the Side Guides at both
ends.
3 Adjust the stacking with belt speed
selector.
Belt Stacker
Setting up Belt Stacker for right-angled mode
