Plockmatic BLM 50 - Bleed Trimmer Registration Angle Adjustment; Adjusting Bleed Trimmer Angle

91
7
[A] [B]

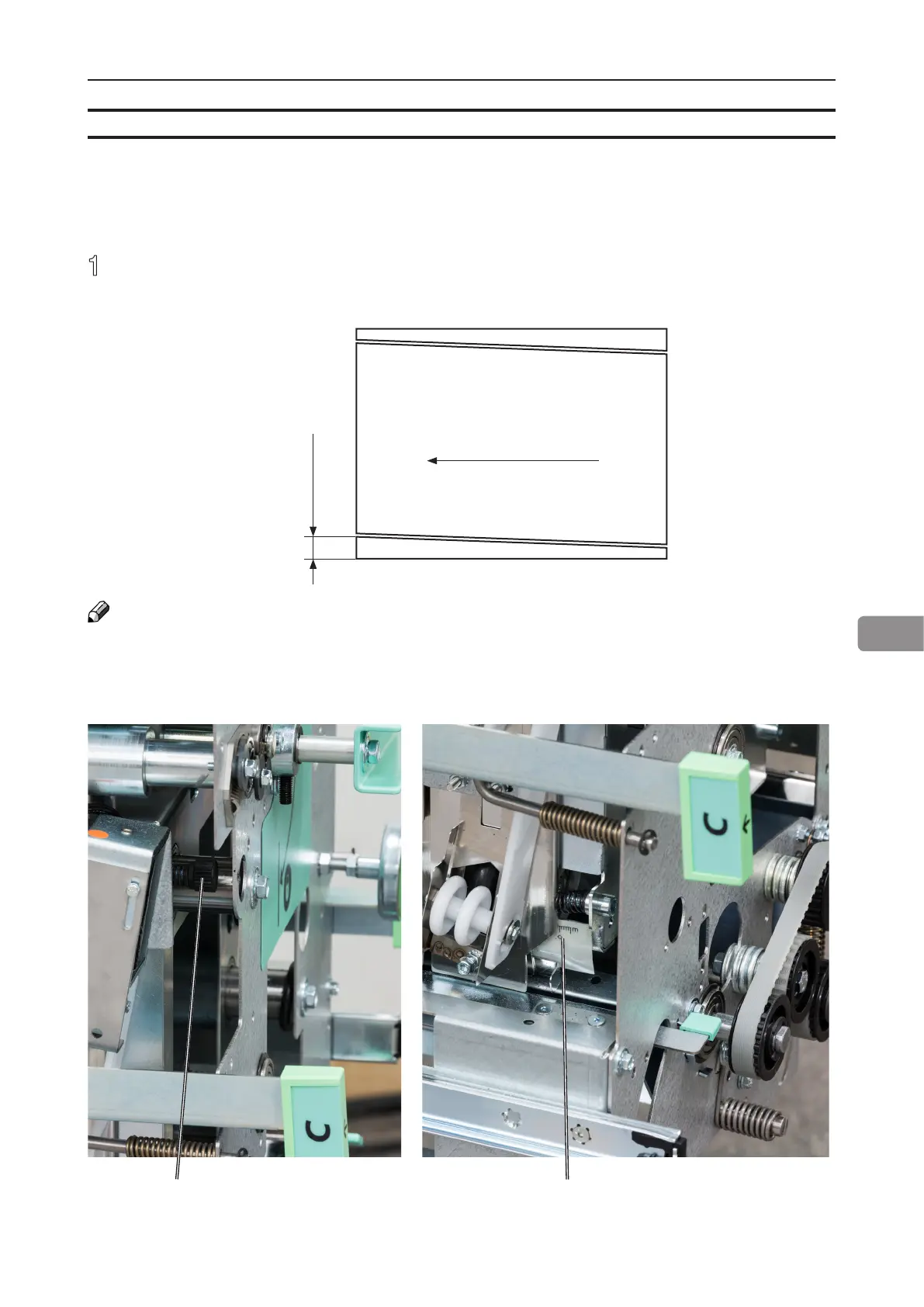

Adjustment of Bleed Trimmer registration angle (parallel cut)
Adjustment of Bleed Trimmer registration angle (trimmer cut parallel to registration
(operator side) edge)
1 Turn adjustment screw [A] in desired direction. Change in adjustment is reected on
the reference scale [B].
Turn the adjustment
screw clockwise to
remedy this mis-
alignment
NOTE:
Sheets may show wrinkles in the process direction if adjustment is set too tight.
Turn adjustment screw counter clockwise until wrinkles disappear.
Process direction
