MAINTENANCE
Winch Wire Locations
The winch wires can be located under the front cab area. Locate
the wires, remove the cap and hook up to winch the Blue and
Yellow (6 Ga.) wires to the winch. Refer to the installation
instructions for more details.
Locate the Red wire (6 Ga.) with the yellow crimp cover is
located in the rear fender area. The red wire connects to the
battery.
The Orange/White wires are located under the front cover
(under headlight pod). The Orange/White wires supply the
control power to the winch.

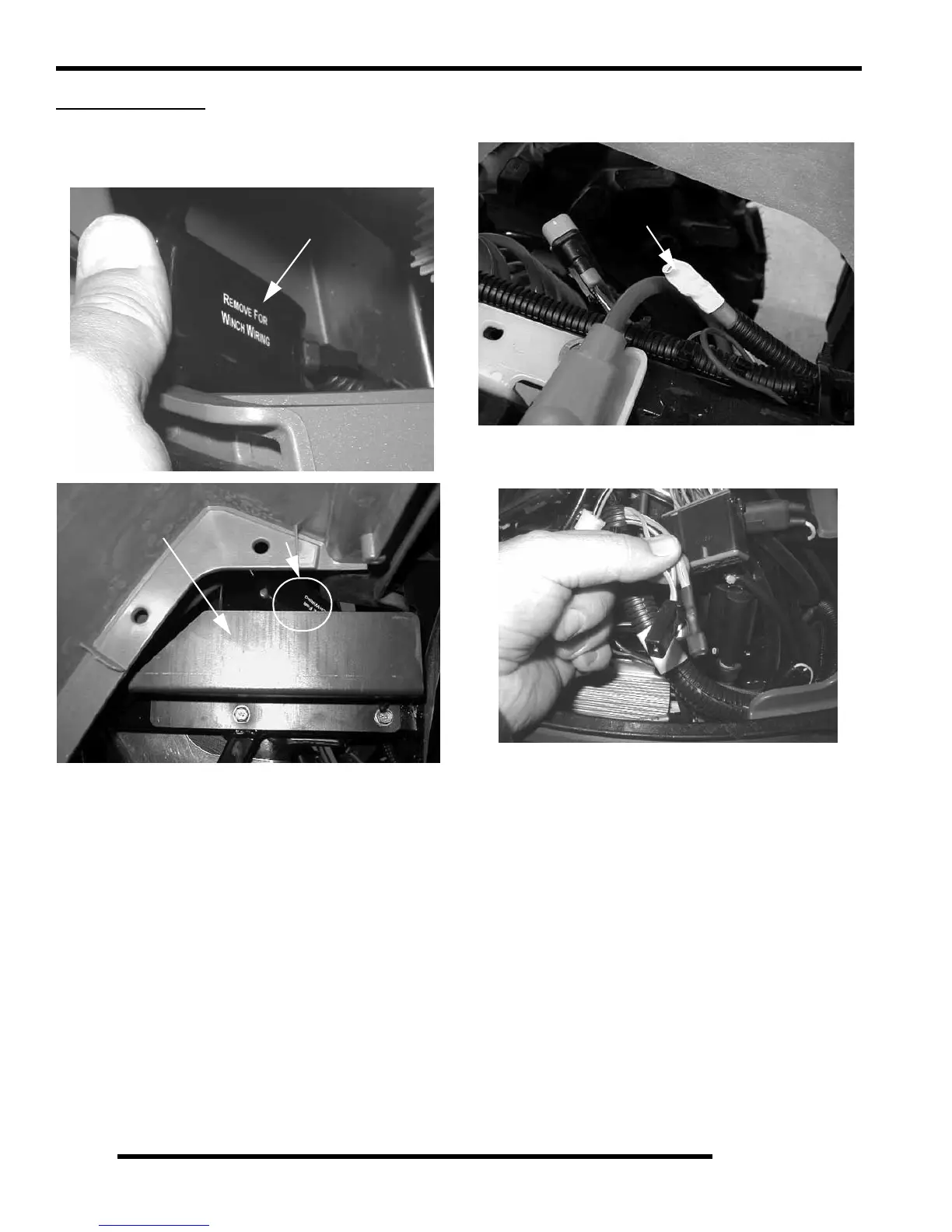

Winch Connector
Splash Guard for
Contactor mount
Winch Connecting
Harness
Right Side Front Fender
Winch Connecting Wire
To Next Page
