FINAL DRIVE

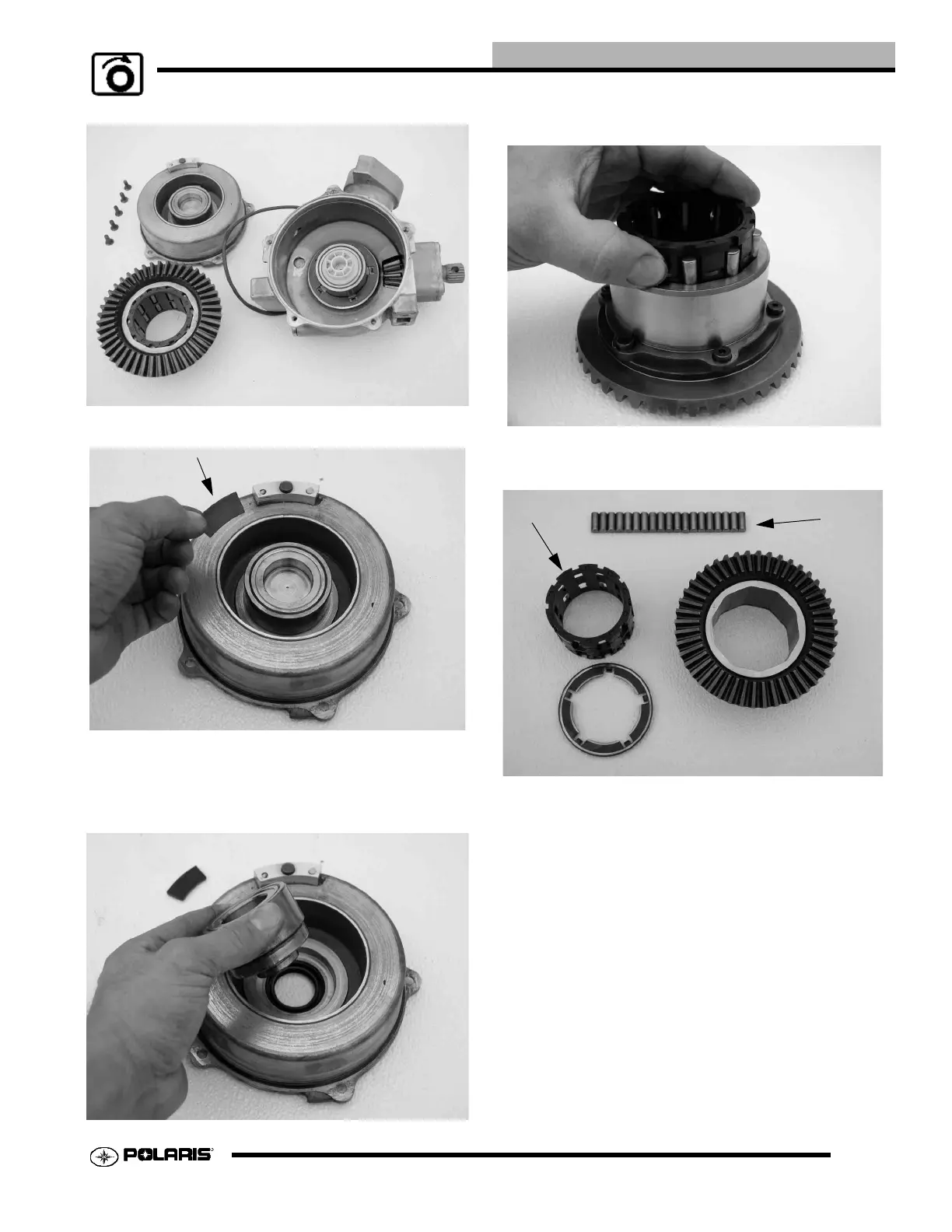

3. Remove ring gear and roller assembly.
4. Clean all parts and inspect for wear. Inspect ring gear
backlash pad (arrow) for wear or damage.
NOTE: Backlash for the front gearcase is set at the
factory. No adjustment can be made.
5. Remove the output hub assembly from the left-hand
gearcase half. Inspect surfaces for wear or signs of
damage. Replace component if found to worn or damaged.
6. Remove the ring gear, roll cage assembly, rollers, and H-
springs from the gearcase.
7. Thoroughly clean all parts. Inspect the rollers (A) for
nicks and scratches. The rollers must slide up and down
freely within the roller cage surfaces (B).
8. Inspect the ring gear (C) for consistent wear patterns. The
surfaces should be free of nicks and scratches.
B
A
