7.14
FINAL DRIVE

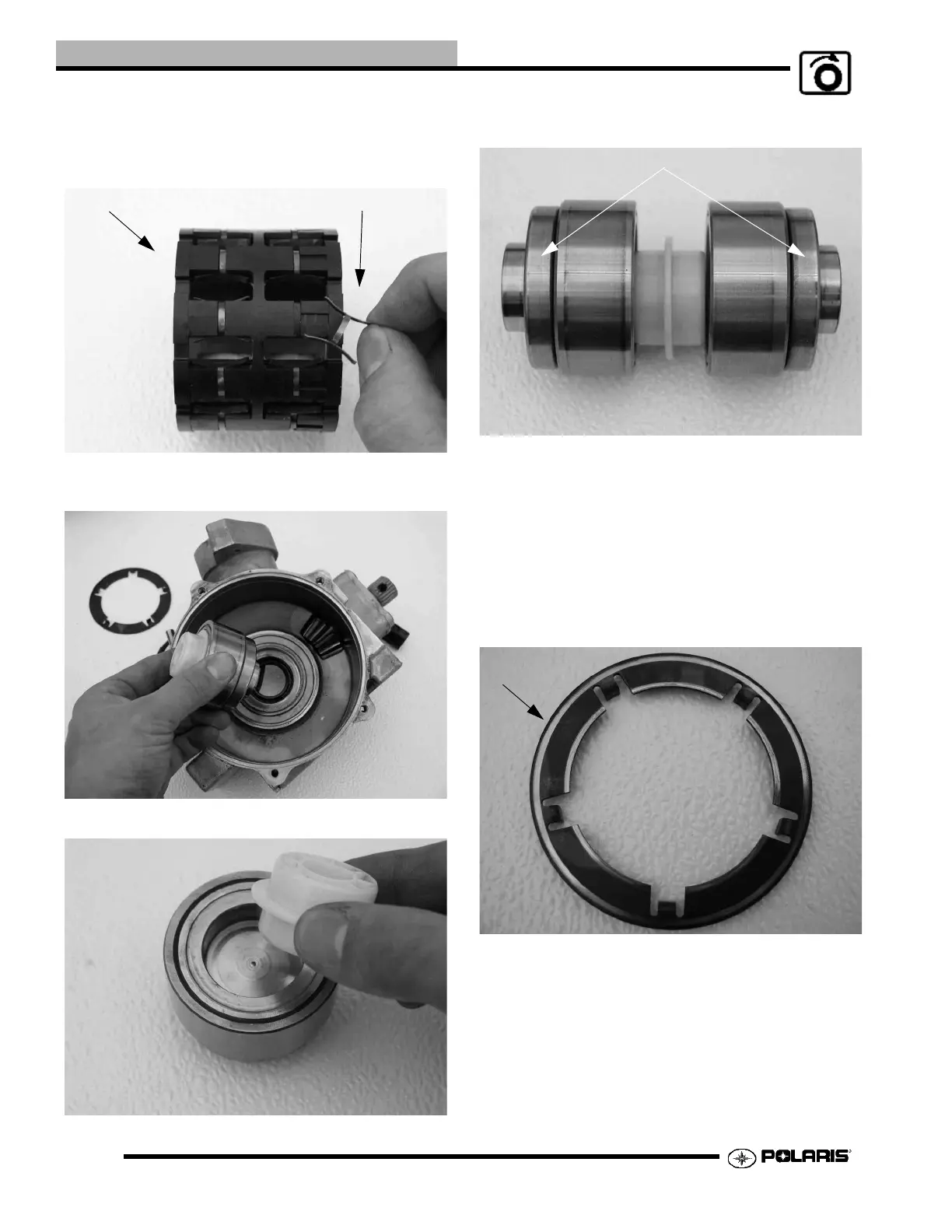

9. Inspect roll cage (B) sliding surface. This surface must be
clean and free of nicks, burrs or scratches. Remove and
inspect the H-springs. Replace any H-springs that appear
damaged or have lost radial tension.
10. Remove the output hub assembly from the right-hand
gearcase half. Inspect surfaces for wear or signs of
damage. Replace component if found to worn or damaged.
11. Inspect the output hub thrust bearing. Replace if wear or
damage is found.
12. Inspect the output hub bearings (arrows). Replace
bearings if wear or damage is found.
NOTE: Due to extremely close tolerances and
minimal wear, the bearings must be inspected
visually, and by feel. While rotating bearings by
hand, inspect for rough spots, discoloration, or
corrosion. The bearings should turn smoothly and
quietly, with no detectable up and down movement
and minimal movement side to side.
13. Inspect the armature plate (E) for a consistent wear
pattern. Uneven wear of the armature plate surface (E)
indicates a warped plate, which may cause intermittent
operation.
B
H-Spring
E
E
