3.12
ENGINE

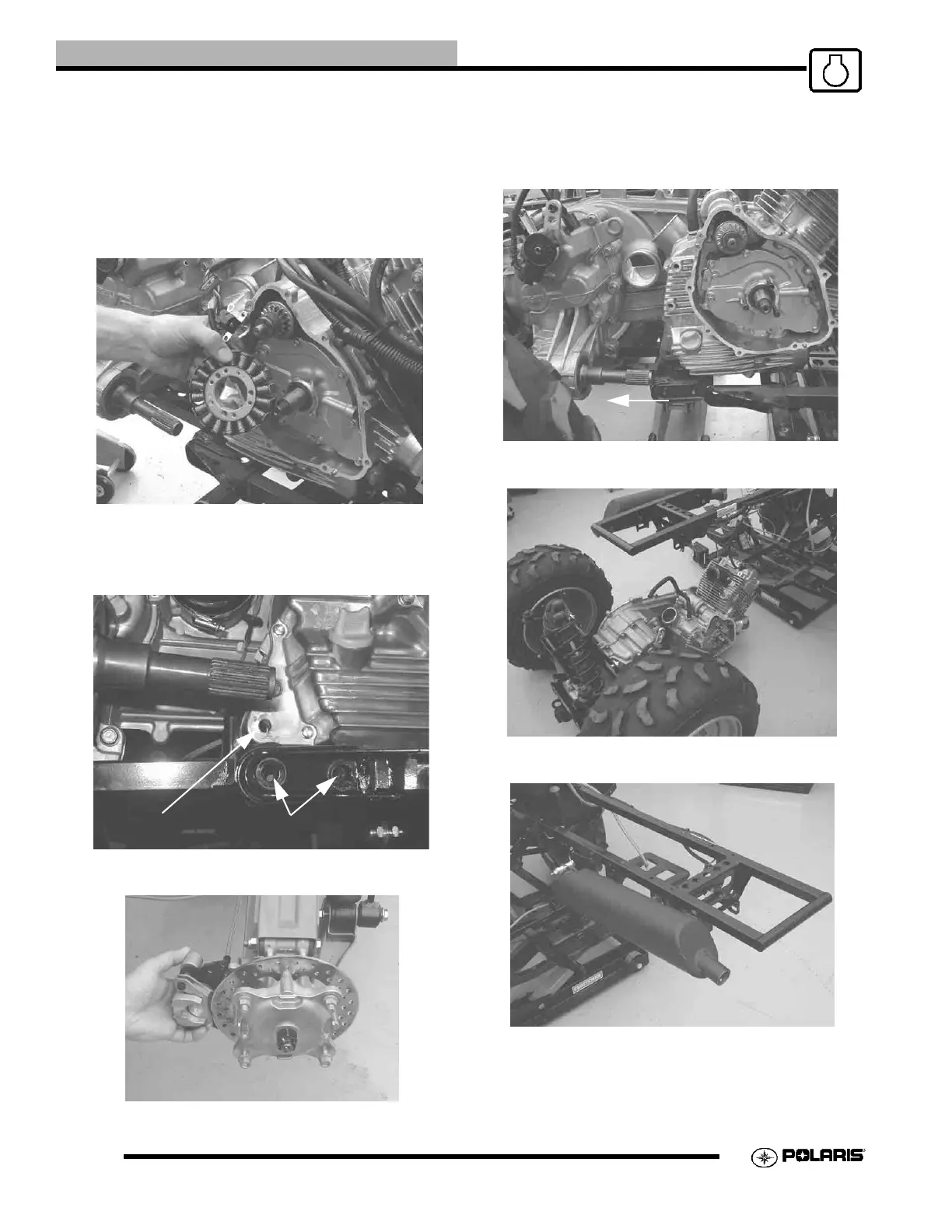

17. Recoil housing, flywheel and stator (or if front cab is
removed, remove front cab and disconnect wires.)
See “Flywheel Removal / Inspection” on page 3.28. for
flywheel removal procedure.
NOTE: If front cab is already removed, the stator
wires can be disconnected. Disregard the steps to
remove recoil cover, flywheel, and stator from the
engine.
18. Front engine mount
19. Support lower sub-frame with a stable platform jack.
20. Rear lower engine mount
21. Sub frame bolts (2 each side)
22. Rear wheel (left side) and brake caliper. Re-install
rear wheel after caliper removal.
23. Top rear shock bolts.
24. Top bolts from sway bar bracket.
25. Lower the jack and pull engine / transmission
assembly out the rear.
Rear mount
2 both sides
