Polycom® RMX™ 1800 Administrator’s Guide
21-4 Polycom, Inc.

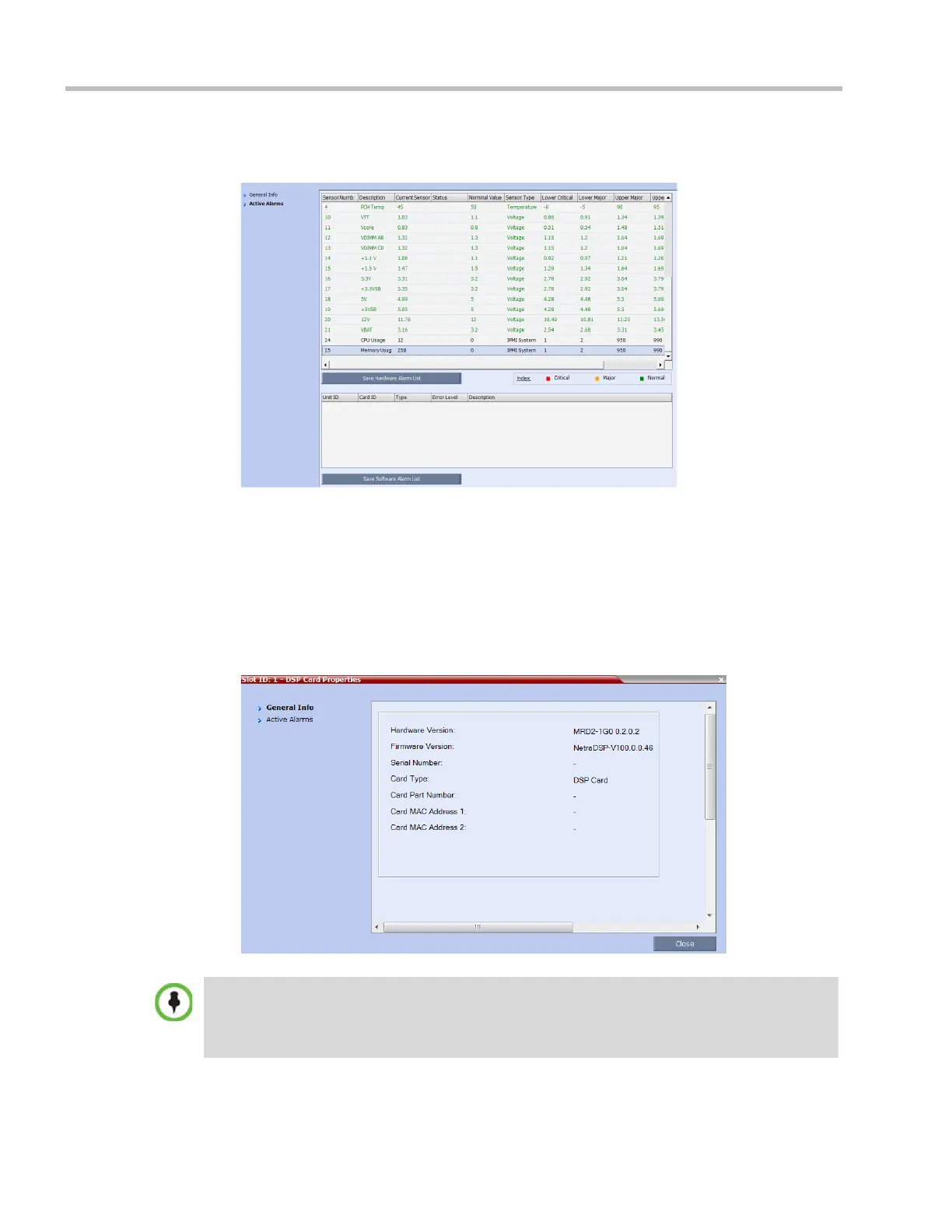

2 Click the Active Alarms tab to view alarms related to the Collaboration Server, i.e.
temperatures and main power sensors.
The Active Alarms dialog box displays fields that relate to faults and errors detected on
the Collaboration Server by sensors. The Active Alarms dialog box is divided into two
sections: hardware Alarm List and SW Alarm List.
Each section’s alarm list can be saved as a *.xls file by clicking the Save HW Alarm List
and Save SW Alarm List buttons respectively. Each alarm list color codes the severity
of the alarm: Critical (RED), Major (ORANGE) and Normal (GREEN).
To view the card properties:
1 In the Hardware Monitor pane, right-click and select properties for the desired card.
The mapping between the DSP slot IDs and the physical PCI slots is as the following:
• Slot ID 1: Riser PCI slot 0 (in the middle)
• Slot ID 2: Riser PCI slot 1 (bottom)
• Slot ID 3: Riser PCI slot 2 (top)
