Section V Parameter Function Table
24
Section V
limited to low-speed pulse.
7 : PID regulation mode
The completion of the main to the frequency of common analog feedback loop control.
Speed control accuracy requirements applicable to the general occasions.
The given value can be given through the keyboard can also be given through the analog.
Analog feedback can represent the pressure, flow, temperature.
Details see the P group of parameters.
The completion of the main to the frequency of common analog feedback loop control.
Speed control accuracy requirements applicable to the general occasions.
For a given value can be given through the keyboard can also be given through the analog.
Analog feedback can represent the pressure, flow, temperature.
Details see the P group of parameters.
Through o36~o46 IO input terminal, set to 17, 18, 19 be configured to switch the source for
a given ratio.
F04
The relationship between
main and auxiliary setting
frequency
The main setting individual
control
0
-
0
Y
The auxiliary setting
individual control
1
Main + auxiliary
2
Main -auxiliary
3
(main*auxiliary)/maximum
frequency
4
Maximum｛main,auxiliary｝
5
Minimum｛main,auxiliary｝
6
Main given and auxiliary given set frequency relations:
Main given value and auxiliary given value can be added up,subtracted, multiplied,maximum,
minimum calculation.
O group parameters can be adjusted to coordinate the main given and auxiliary given
proportion, to meet the requirements of the system fine-tuning and bias.
F04
t
f
f
f
f
f
max
main
auxiliary
setting
frequency
main
auxiliary
setting
frequency
f
f
f

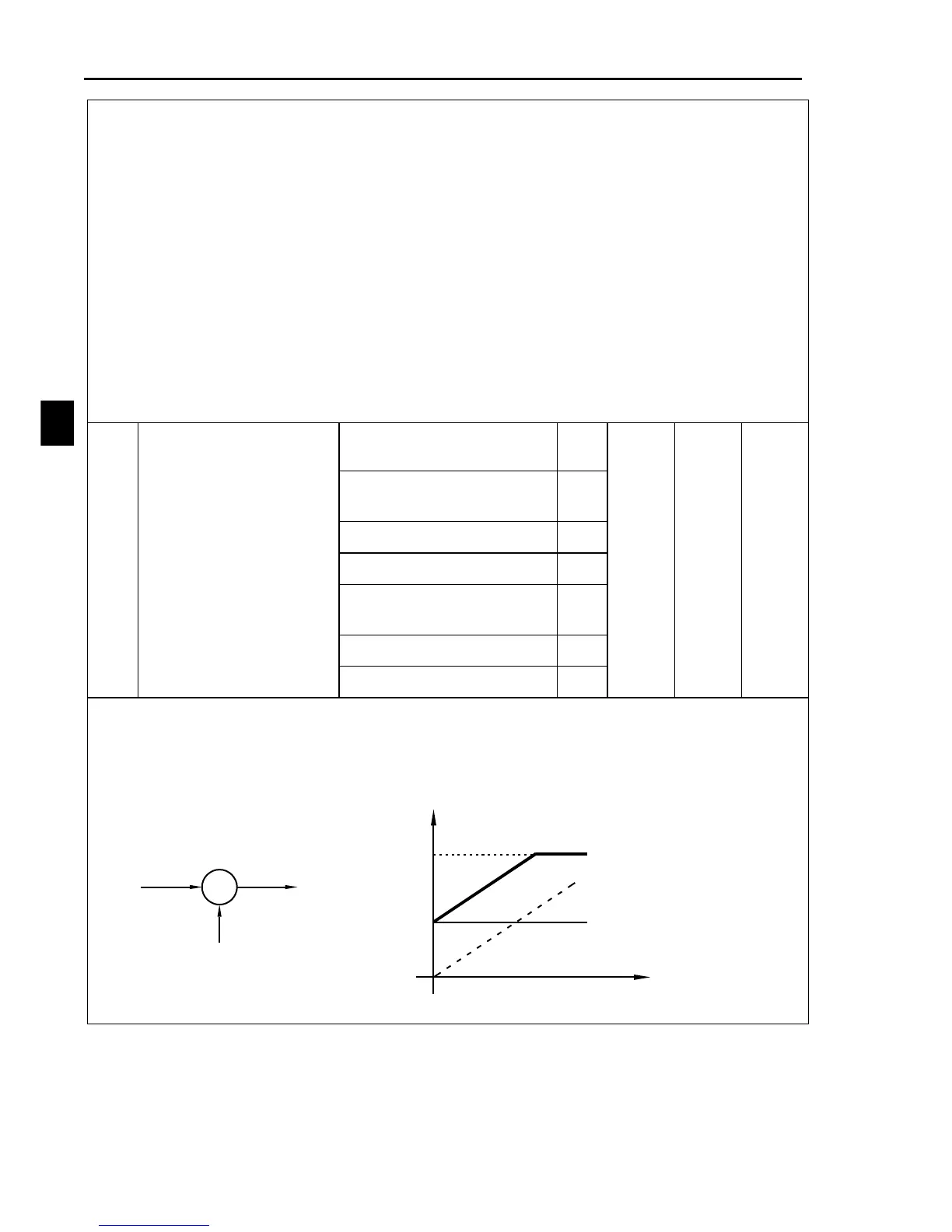

The relationship between main
give and auxiliary given
Main+Auxiliary
