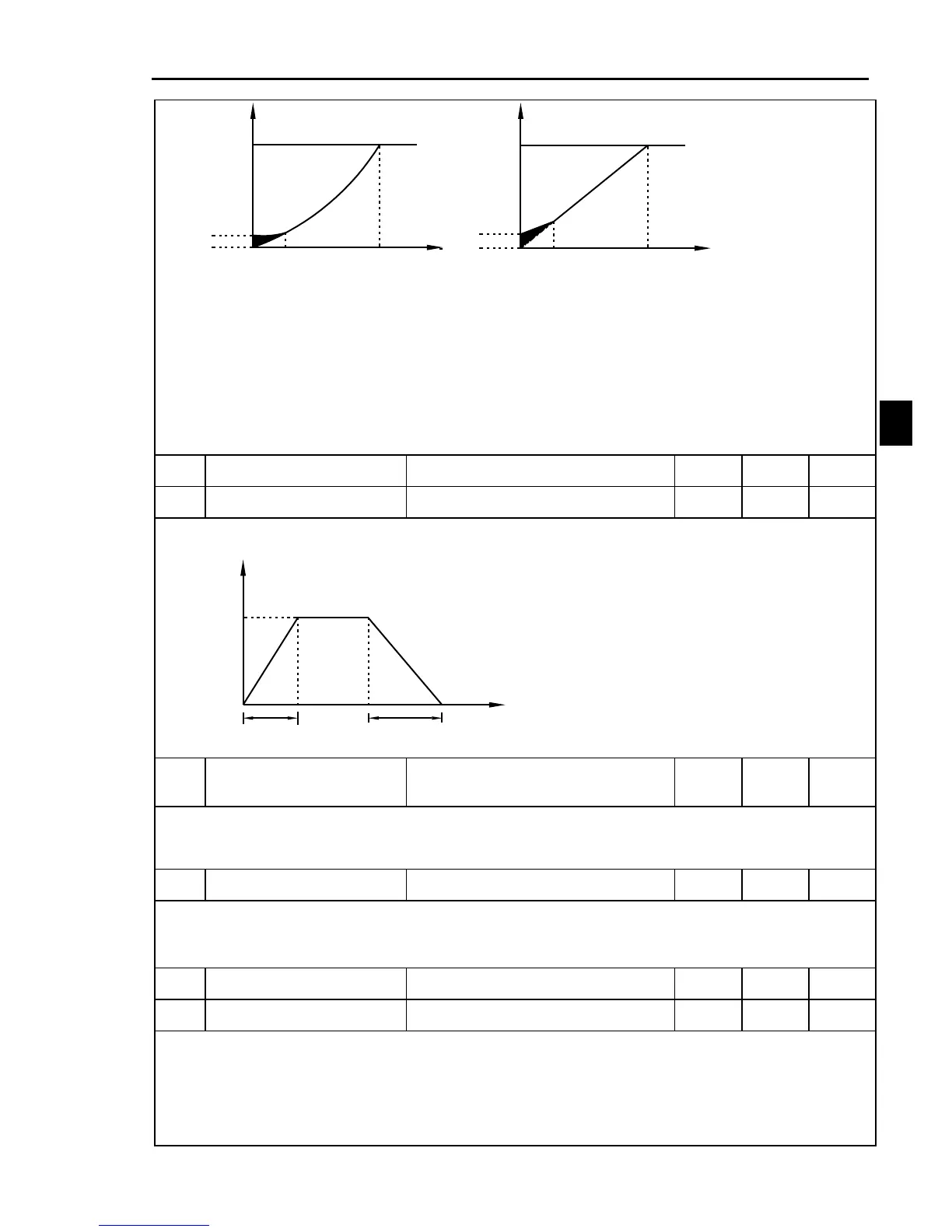

Section V Parameter Function Table
27
motor
rated
voltage
Enhance
voltage
Basic frequency
Voltage
down the torque curve torque boost
Cut-off
frequency
Constant torque curve torque boost
motor
rated
voltage
Enhance
voltage
Basic frequency
Voltage
Cut-off
frequency
Frequency
Frequency
Torque increase is mainly used to improve the low-frequency torque characteristics under
sensorlessV / F control mode.
Torque boost is too low, weak low speed motor
Torque boost is too high, motor over-excitation operation, large inverter output current, and
low efficiency.
The setting frequency of the inverter is lower than the frequency of the torque rising,the
torque rising will be valid;over than the setting frequency the torque rising will invalid.
F09 Accelerate time: accelerate time from 0Hz to maximum frequency.
F10 Decelerate time: decelerate time from maximum frequency to 0Hz
F10
F09
running time
Linear Acceleration
Fmax
Percentage of output
voltage
The percentage of the actual output voltage and the rated output voltage.
Used to adjust the output voltage,output voltage＝inverter rated output voltage*percentage
of output voltage.
Inverter output maximum frequency allowed is also the setting basis of acceleration /
deceleration time.
This parameter setting, you should consider characteristics of the motor speed and capacity.
Lower frequency~Upper frequency
F13 Lower frequency: the lower limit of the output frequency.
F14 Upper frequency: the uppper limit of output frequency.
When the frequency setting command is higher than the upper frequency, the operating
frequency
Will be the upper frequency;When the frequency setting command below the lower frequency ,
