Section V Parameter Function Table
72
Section V
Running at the speed
before the machine
stopped
1
1 bit: Running cycle
0: Single cycle
1: Continuous cycle
2: Single cycle, running according to H01 speed of the end,stop after accepted the stopped
orders.

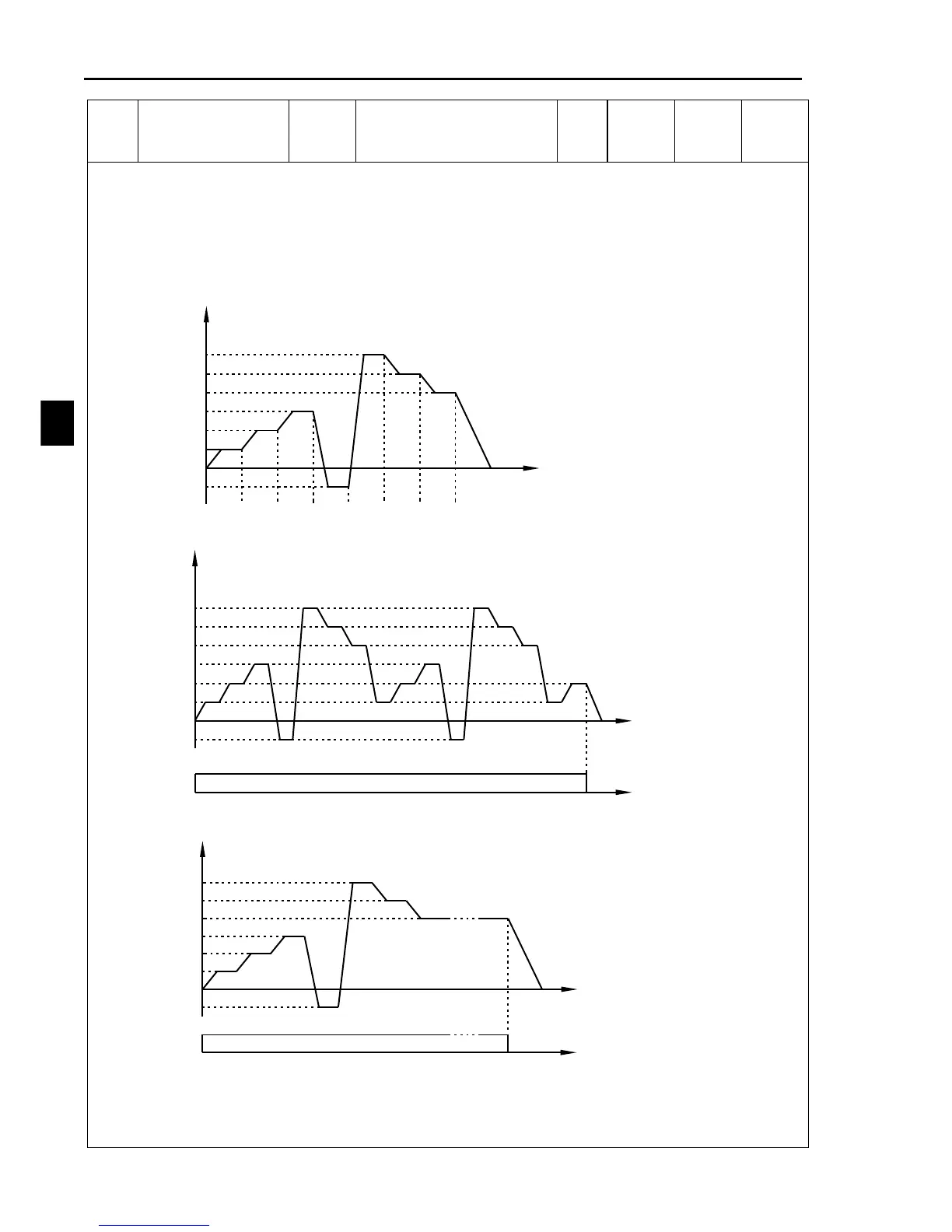

The program runs three styles as following:
Eg1:The program is run single - cycle mode
Single circulation
time
7X
6X
5X
4X
3X
2X
1X
T7
T6
T5
T4
T3
T2
T1
output
frequency
60Hz
50Hz
40Hz
30Hz
20Hz
10Hz
0
10Hz
Eg2:program run Continuous cycle mode
Continuous circulation
time
2X
1X
7X
6X
5X
4X
3X
2X
1X
5X
7X
6X
4X
3X
2X
1X
time
STOP
program
running
putput
frequency
60Hz
50Hz
40Hz
30Hz
20Hz
10Hz
0
10Hz
Eg3:Program is running in single cycle, According to Paragraph seventh of Speed mode
Single circulation, continuous running at step 7 speed
output
frequency
time
time
program
running
STOP
7X
6X
5X
4X
3X
2X
1X
60Hz
50Hz
40Hz
30Hz
20Hz
10Hz
0
10Hz
10 bit: Running condition when pause
0: Speed run when pause
1: Fixed Segment Speed operation when pause
