Replacing the Gripper Spring or Cable
Tools Required:
1. 1.3mm hex driver
2. 2.5mm hex driver
3. 7mm open end wrench
4. Loctite 222
Spare Parts Required: Spring or Cable Assembly
To replace the spring or cable the user must:
1. Remove the Gripper Cover by removing 4 or 6 M2 X 6mm FHCS (depends on model).

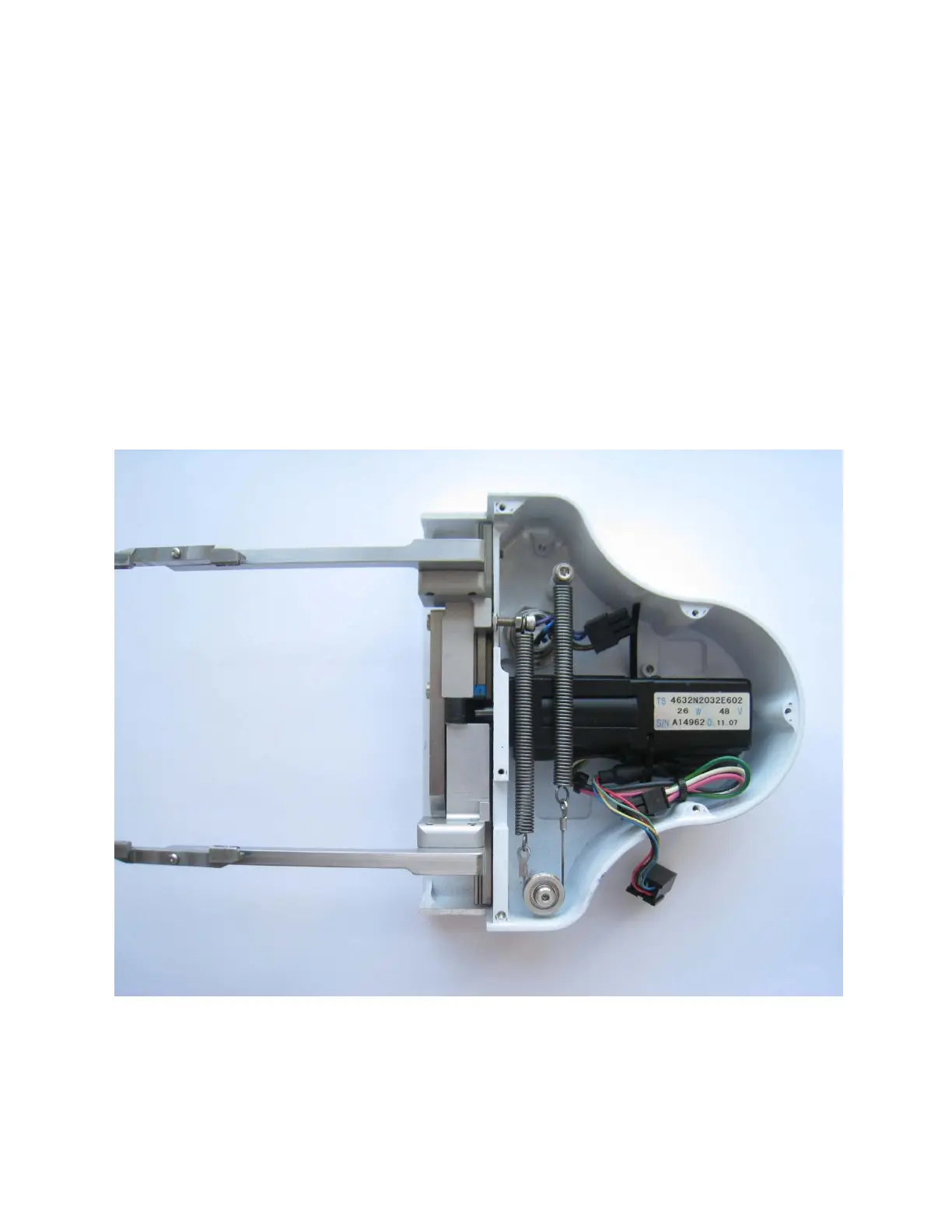

2. Remove the spring cab le assembly by removing the M3 screws shown below.
3. Replace the spring cable assembly and replace the cover.
