Installation Information
41

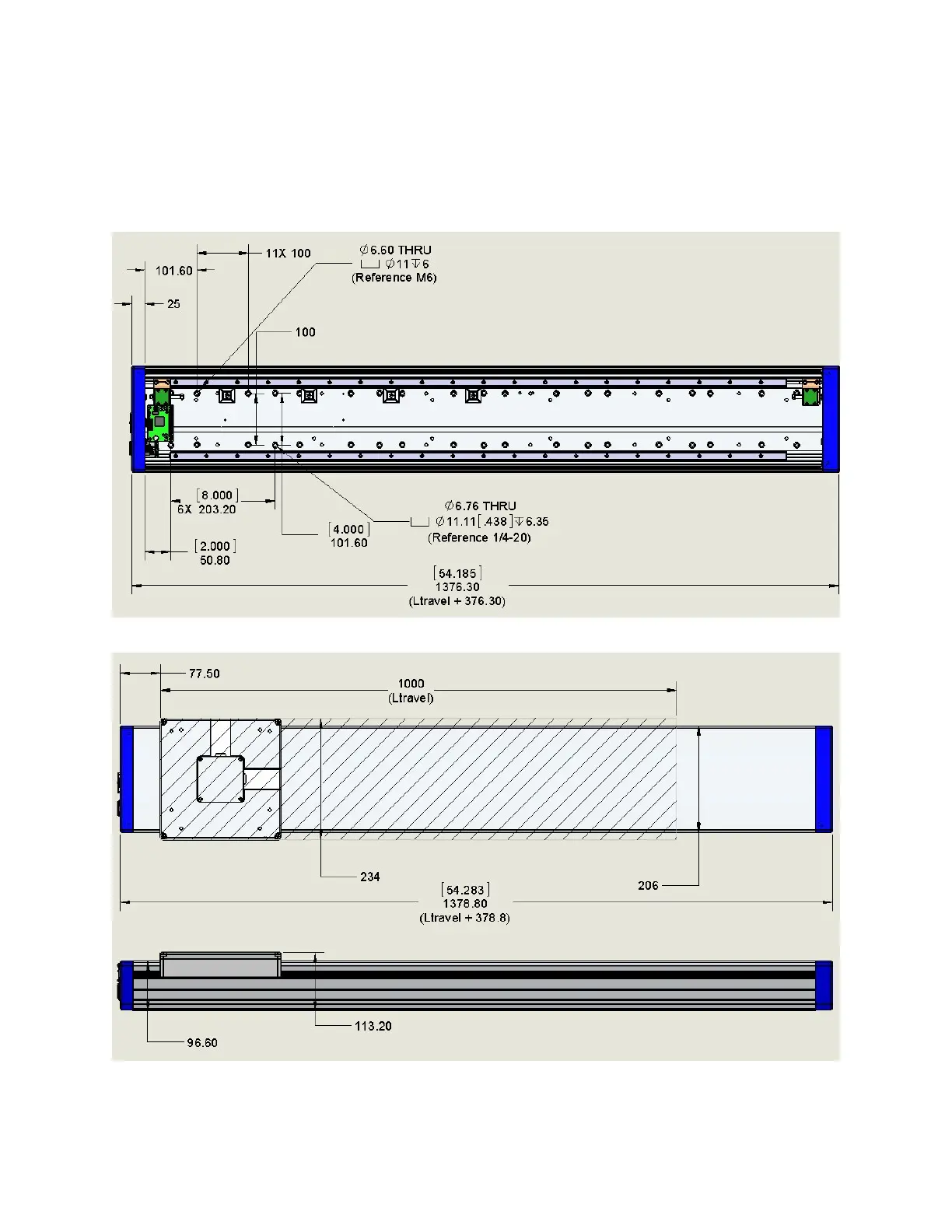

Linear Axis Mounting Dimensions
The linear axis has both an M6 and ¼-20 hole pattern inside the extrusion. You must loosen the
connector end cap slightly and remove the top cover to access these holes patterns. When replacing the
top cover, be sure the tape seals are inside the slot in the top cover and not crushed.
