PreCise PF3400 - Facilities Panel

Hardware Reference
67

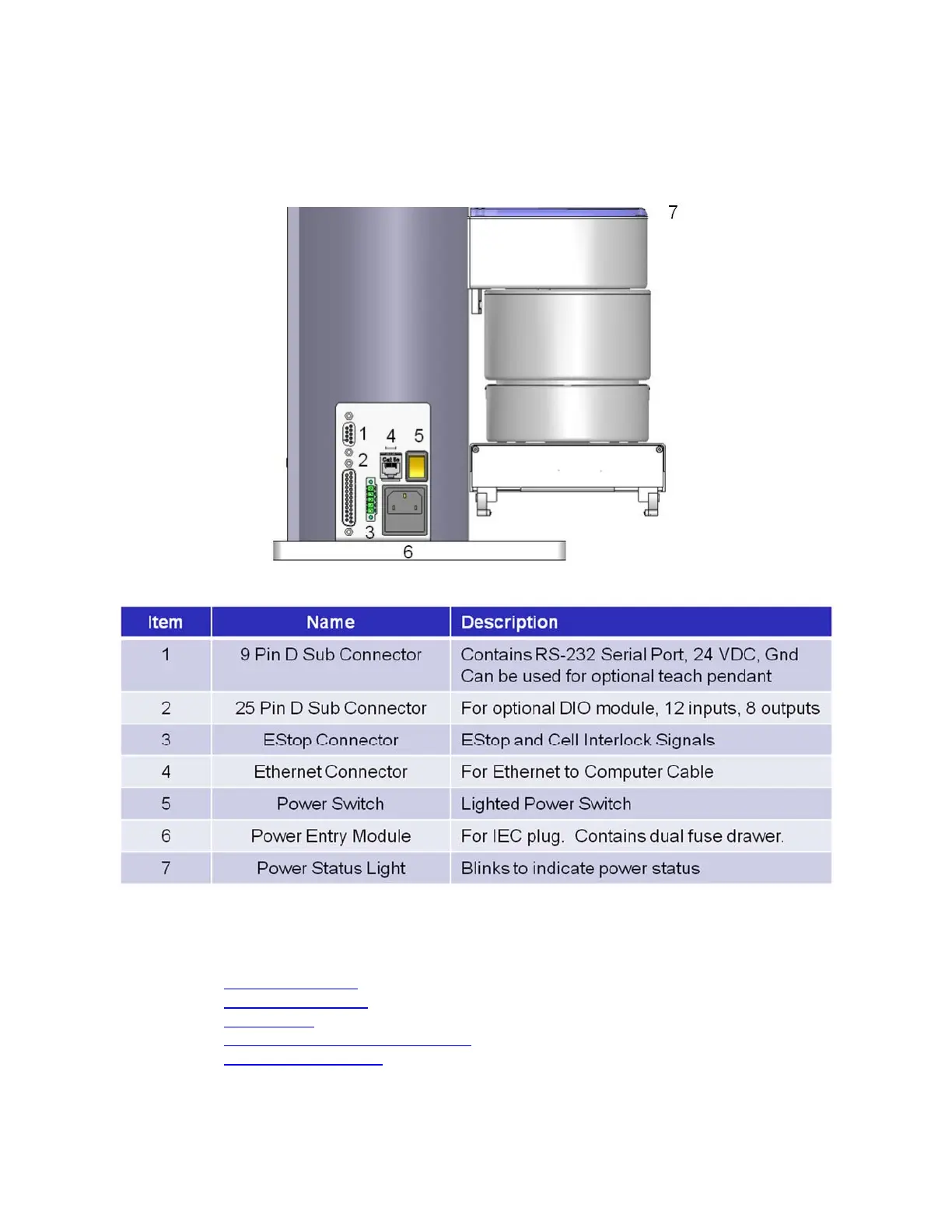

Facilities Panel
The Facilities Panel is located at the base of the robot.
To simplify interfacing, most of the electrical interfaces provided by the robot's embedded Guidance
Controller are available on the Facilities Panel. These include:
 Digital input signals
 Digital output signals
 Ethernet port
 Remote Front Panel / MCP / E-Stop
 RS-232 serial interface
