127

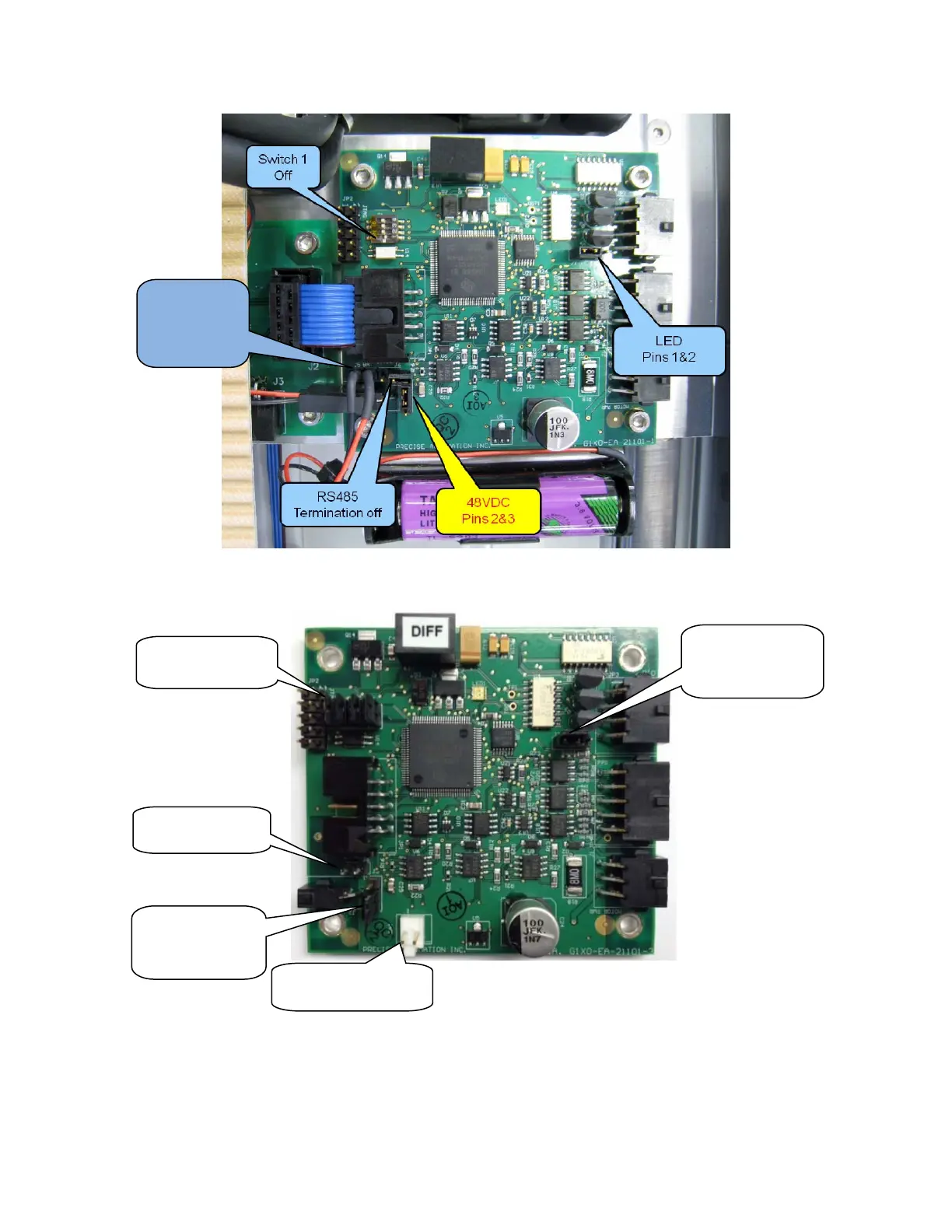

Linear Axis Controller (GSB Rev 2)

Linear Axis Controller Rev2 (GSB Rev 3)

J3 jumper

pins 2 & 3

(Connect 48V)

Remove J8

(Address Bit 0)

Remove J6

(RS485 term)

J7 jumper

pins 1 & 2

(LED not used)

Battery

Pin 1 + 3.6VDC

Battery

wires for

absolute

encoder
