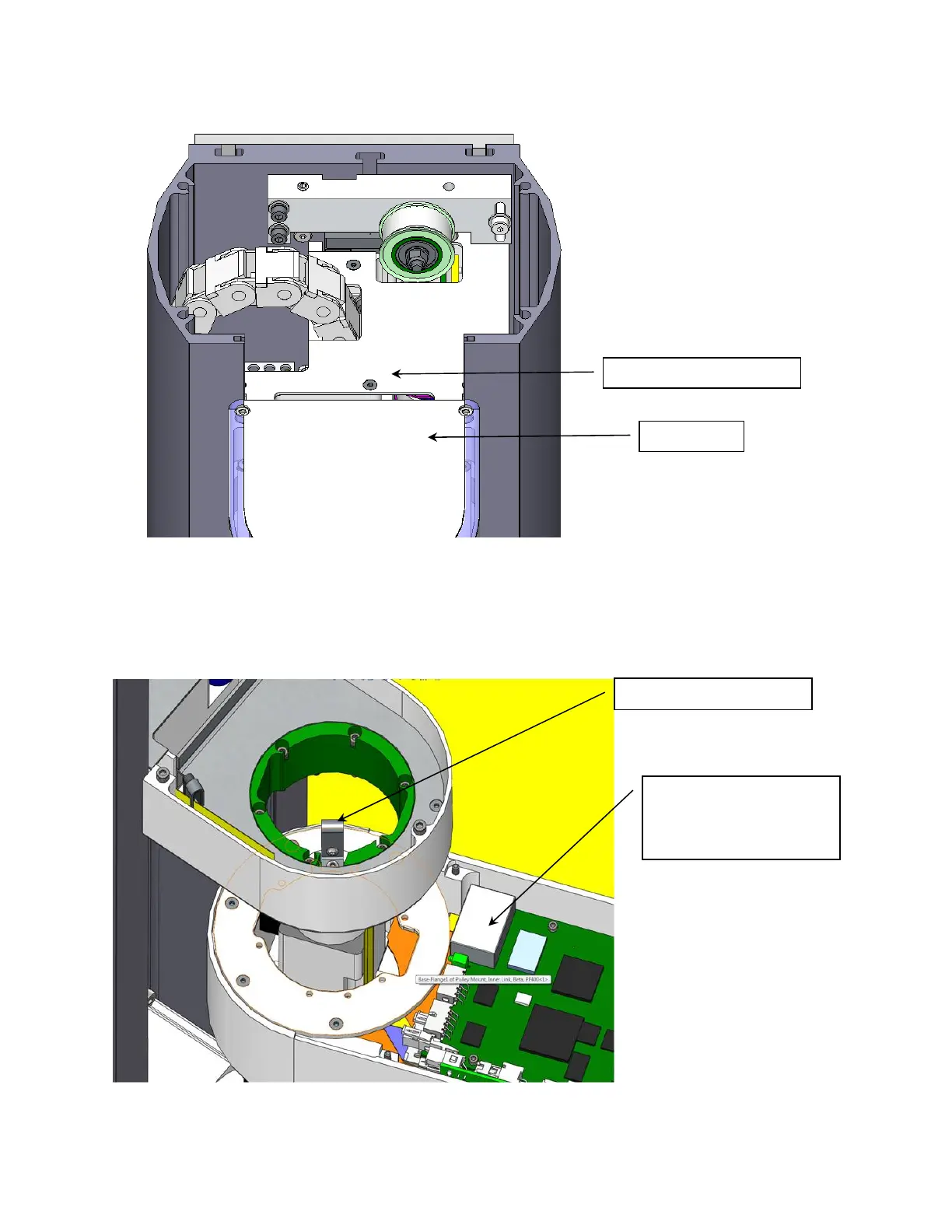

7. Remove the Light Bar by removing 3 M3 X 8 SHCS and unplugging the connector from the J2
Motor Interface PCA.
8. Remove controller from inner link.
9. Detach the inner link from the Z carriage by removing 6 M3 X 35 SHCS and lock washers.
Remove controller first,
unplugging cables, then
detach inner link.
Harness retaining clips.
Z Carria
g
e Inner Cover
Li
g
ht Bar
