2.
Remove the left and right trim landing cover #3 Phillips screw (2x), washer
(2x), and bushing (2x) fastener hardware. Retain part(s) and/or fastener(s) for install-
ation.
1.
Loosen the #2 Phillips trim end cap ( left, right) keeper block screw fastener to
relax tension on the trim landing rear tab clip. Do not remove the keeper block
fastener or the keeper block will fall from the inside cover mount. The trim end cap will
need to be removed to reinstall the keeper block.

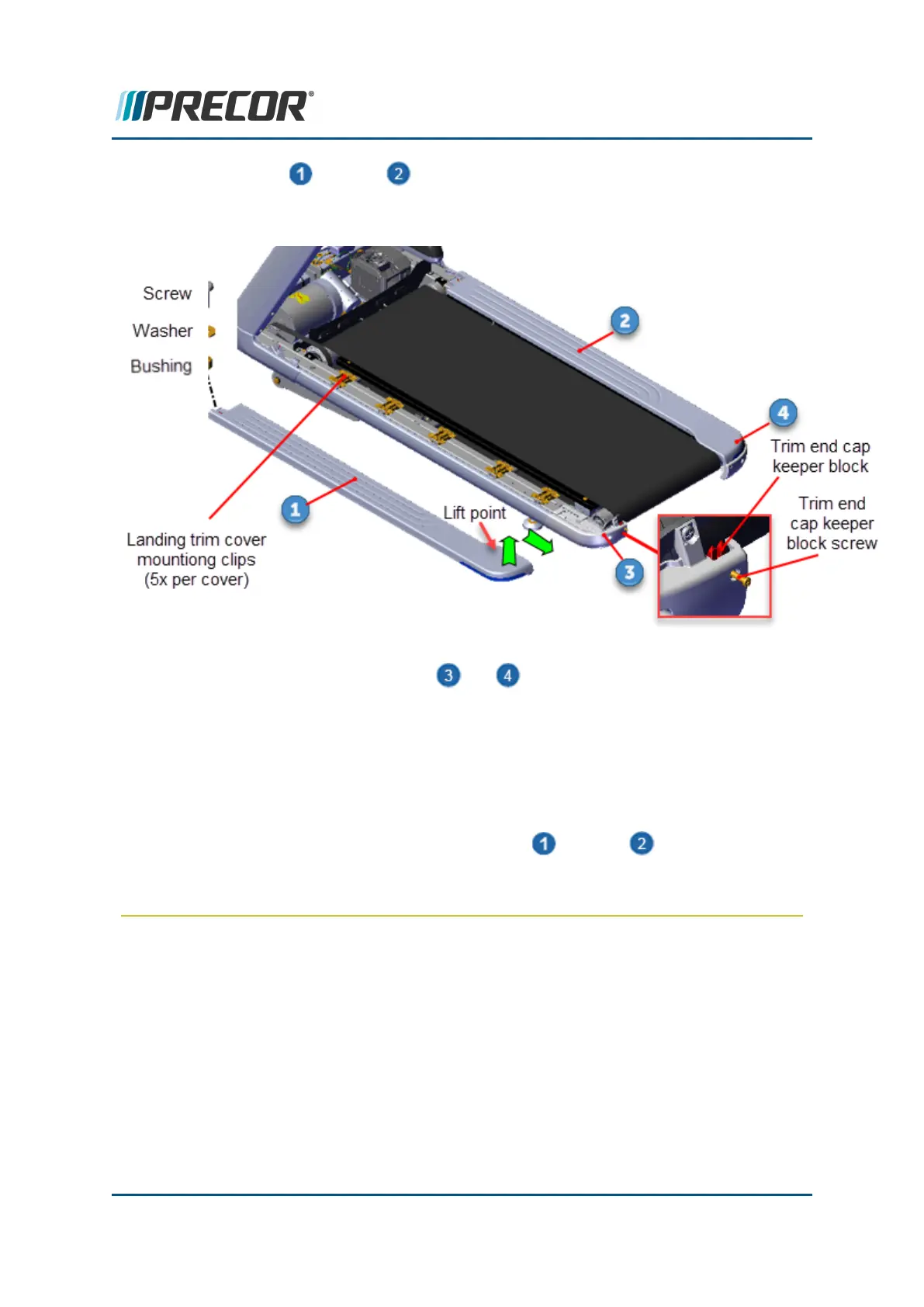

2. Grab the outer edge and the inside edge at the rear of the trim landing cover (see fig-
ure lift point) and lift up to release the rear tab clip. Continue to slide the cover rear-
ward to remove. It requires a strong pull to unsnap and release the cover rear tab clip.
3.
Repeat the same process to remove both the left and right trim landing cov-
ers.
Installation Instructions
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 92
6 Replacement Procedures
Covers and Panels Replacement
