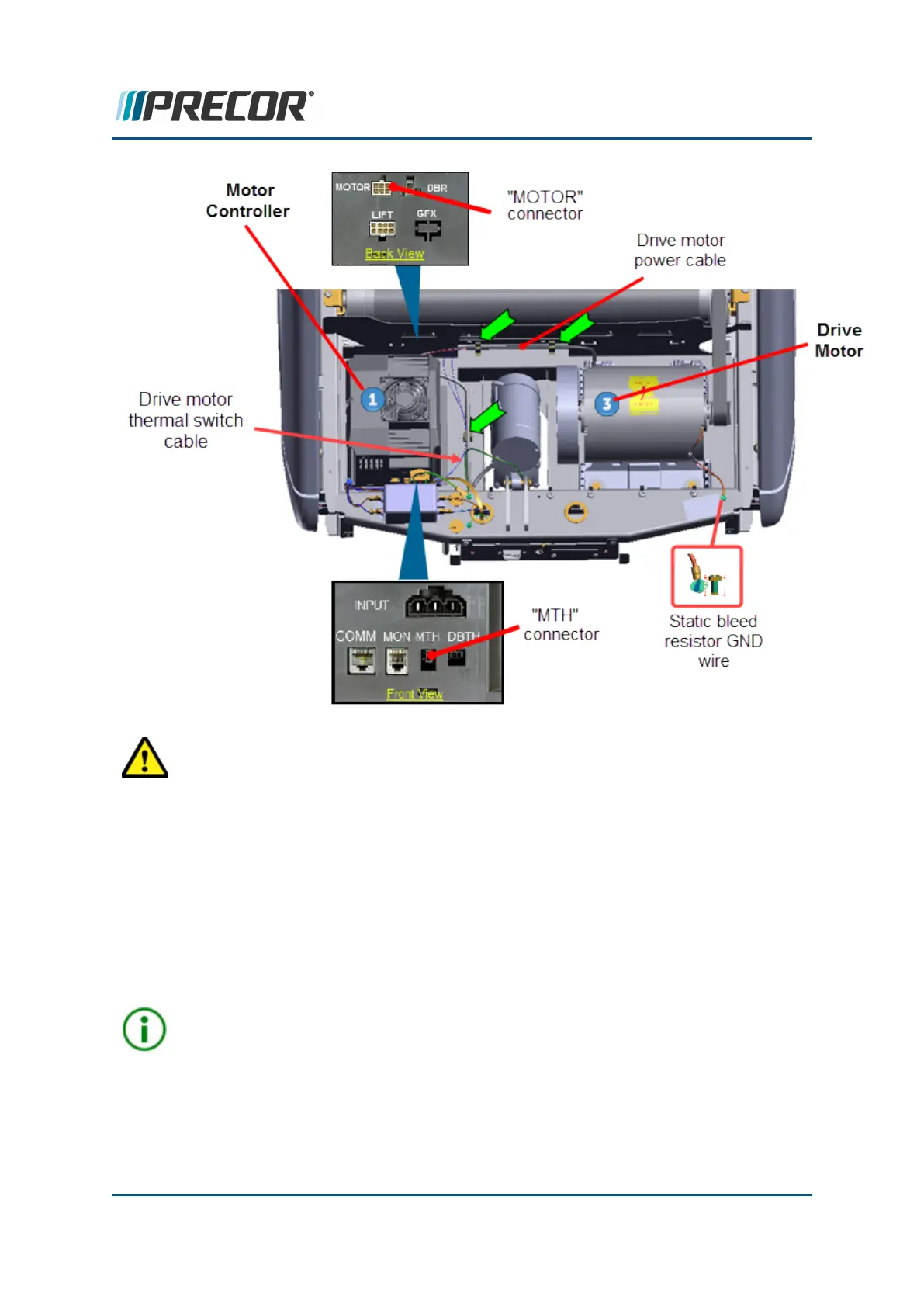

CAUTION:Take your time and be careful when reconnecting the MC cable con-
nectors. Many of the connector contacts are small and can be easily damaged if
incorrectly inserted into the MC connector.
4. Reinstall the MC by sliding the left side base flange under the two left preinstalled
loosened fasteners. Then install the two right side fasteners and fully tighten all four
1/2" hex fasteners, see "Motor Controller (MC) Replacement" on page123.
5. Route cables and secure using the three frame cable clamps. Recheck all cable MC
connections and make sure that the cables have freedom of movement and clear of
any frame or component edges that could pinch or damage the cable wires.
6. Reinstall the drive belt. Place the Drive Belt onto the Roller pulley and walk the belt
onto the Drive Motor pulley.
TIP: Use (turn) the Drive Motor flywheel to make it easier to turn the motor pulley
and help walk the belt onto or off the Drive Motor and Drive Roller pulleys.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 159
6 Replacement Procedures
Drive Motor Replacement
