Removal Instructions
1. Switch the power OFF and unplug
1
the power cord.
2. Remove the hood cover, see "Covers and Panels Replacement" on page86, and
left/right Trim Landing covers, see "Covers and Panels Replacement" on page86.
3. Remove the Take-up Roller, see "Take-up Roller Replacement" on page178.
4. Remove the Drive Roller, see "Drive Roller Replacement" on page168.

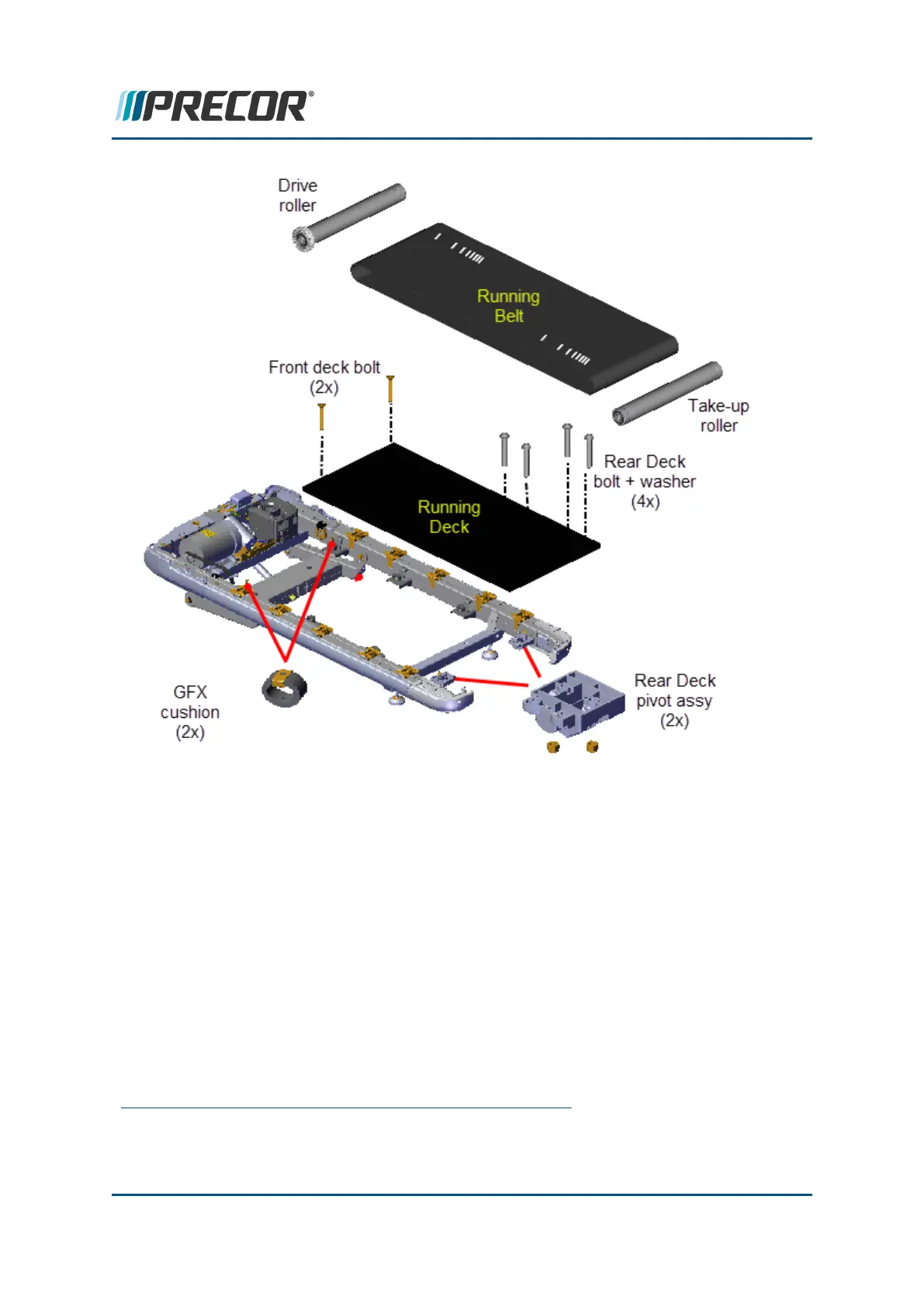

5. Remove the four 5/32" hex key bolt and washer rear deck fasteners. These fasteners
attach to the left and right rear deck pivot assemblies. The 1/2" fastener nuts are
press fit into the bottom of the deck pivot housing, be aware that the nuts can fall from
the housing as the bolts are being removed. If this happens, reinsert the nut into the
pivot housing. Retain part(s) and/or fastener(s) for installation.
1
Disconnect a device power cord plug or cable connector from the power receptacle or out-
let.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 189
6 Replacement Procedures
Running Belt and Deck Replacement Procedure
