3. Touch the designated display positions and follow prompts to complete the touchscreen
calibration.
Debug Information Report shortcut
Console shortcut to download an event log debug information report.
Steps
1. Make sure the console is set to the Welcome banner.
2. Insert a USB flash drive into the Chin USB port.

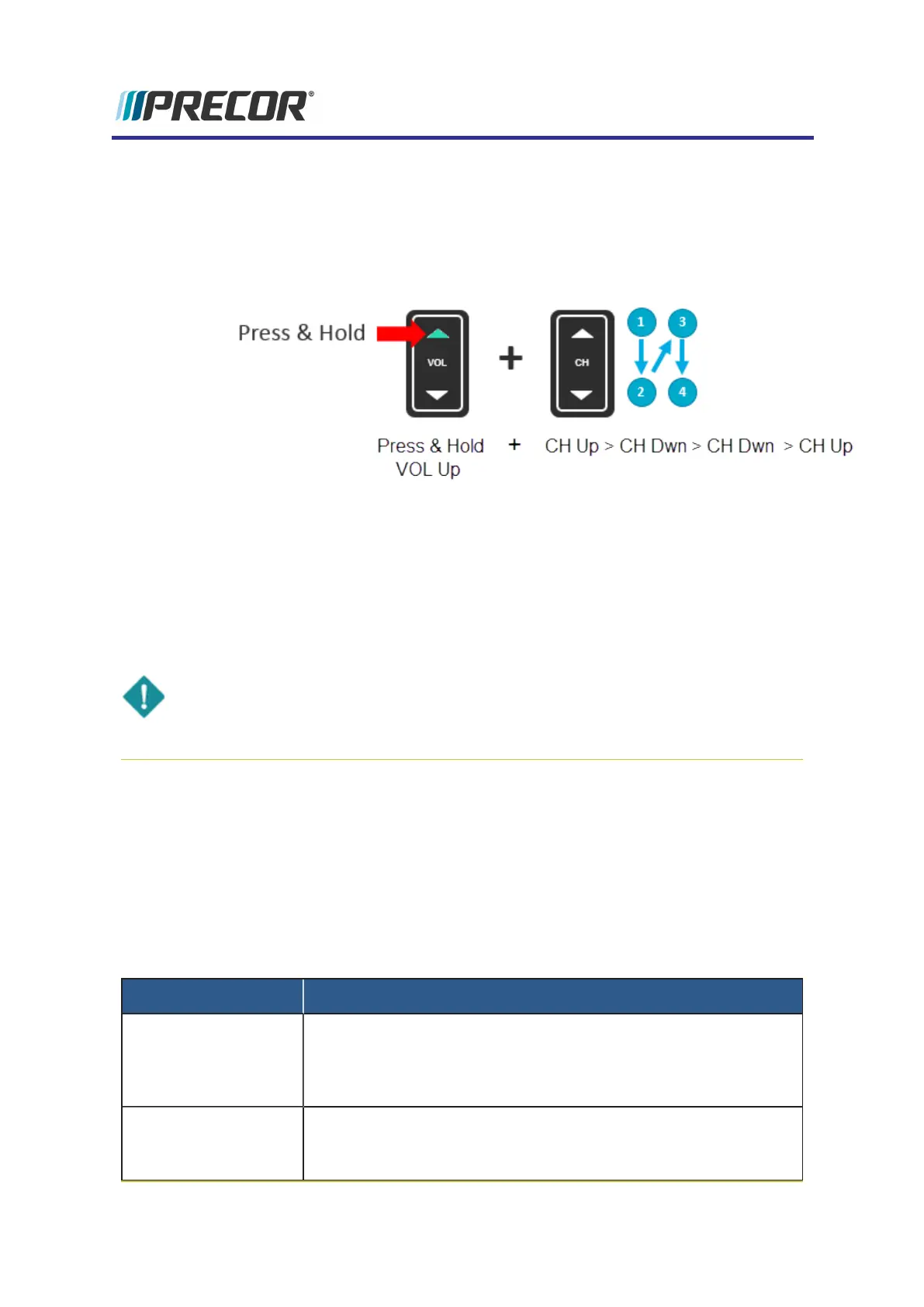

3. Press and hold the VOL Up hardkey while pressing CH up > CH Dwn > CH Dwn >
CH up:
4. Wait for the download to finish and then remove the USB drive..
IMPORTANT: Do not remove the USB drive until the "Report was successful" mes-
sage is shown, (approx. 1 min).
Navigating the Service Menus
The P80 and P82 consoles use the console touchscreen touch sensitive controls to select
items and navigate the service menus. Only one hardkey "Pause" is used to stop a running dia-
gnostic test.
P82 consoles
:
CONSOLE KEY FUNCTION/DESCRIPTION
Touchscreen con-
trols
There are various touch sensitive softkey controls (OK. START,
STOP, BACK, etc.) and icon controls (image boxes, buttons, etc.)
used to control and operate the console. Make selection by touch-
ing the softkey control or icon.
Scroll Up/Dwn Use your finger to swipe the touchscreen up or down to scroll
through menu items. Some menus provide a vertical scroll bar on
the screen right side to scroll Up/Dwn.
P82 Console 47
