COACH EXTERIOR
011894

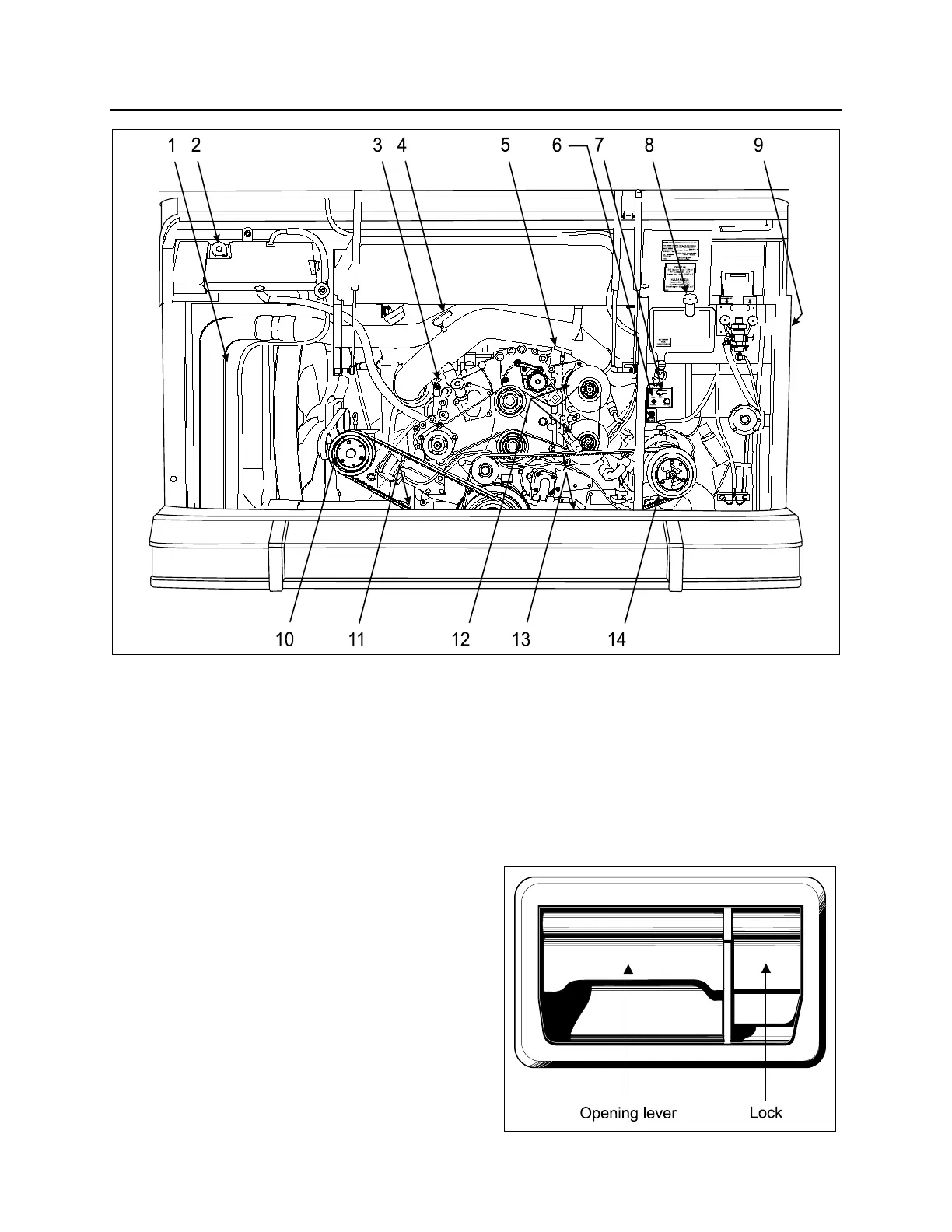

ENGINE COMPARTMENT 01067
1. Radiator and charge air cooler;
2. Coolant fluid surge tank;
3. Transmission fluid dipstick;
4. Air filter restriction indicator;
5. Engine oil dipstick;
6. Starter selector switch and
Engine rear start push-button switch;
7. Belt tensioner control valve;
8. Engine oil reserve tank;
9. Air filter;
10. Radiator fan gearbox;
11. Engine coolant filter/conditioner and
Engine oil filters;
12. Twin Bosch alternators;
13. Primary and secondary fuel filters;
14. Main A/C compressor;
EXTERIOR COMPARTMENTS
Most serviceable parts may be accessed
through exterior compartments. There may be
slight differences in the location of parts and in
the configuration of compartments between
models, depending on options.
EXTERIOR COMPARTMENT DOOR HANDLE 18184
