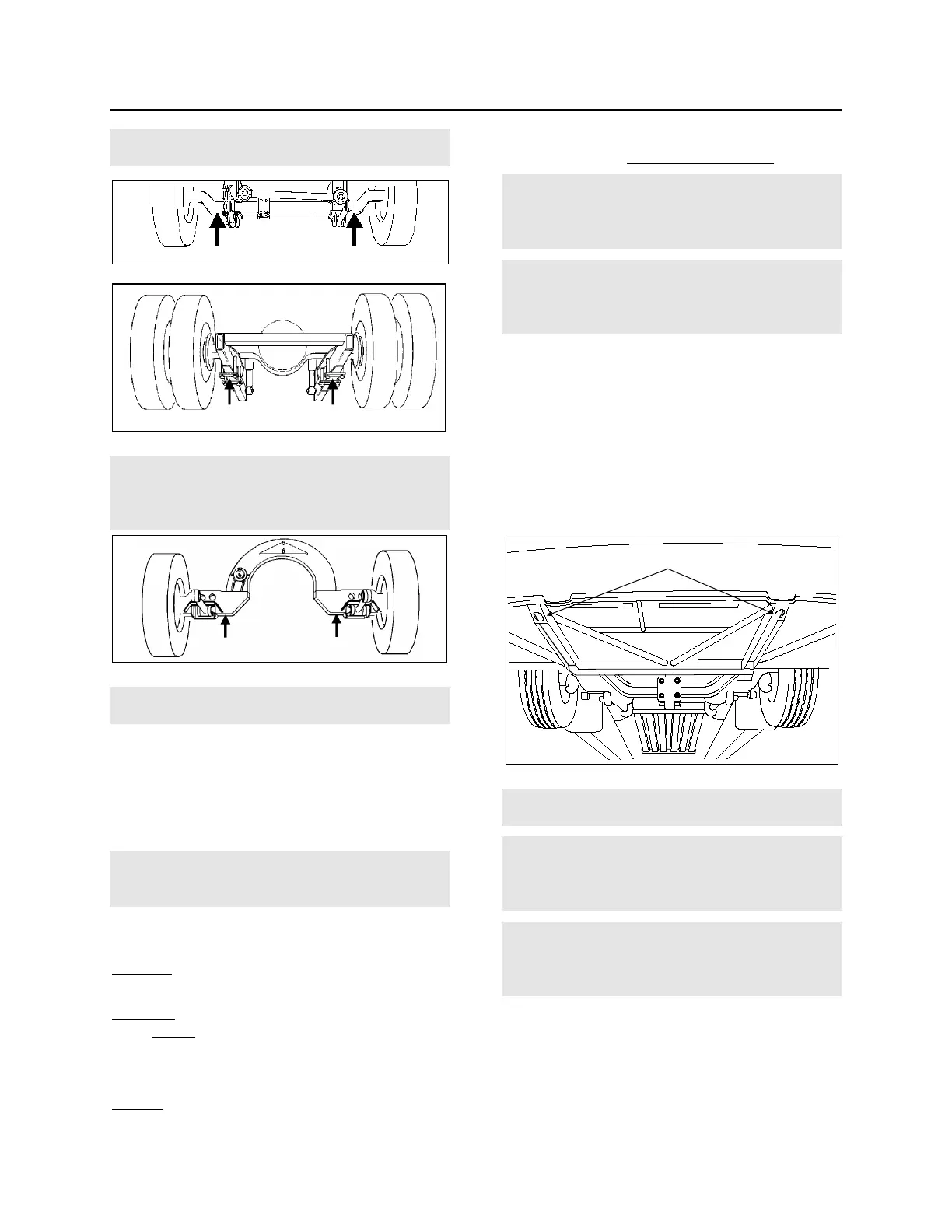

SAFETY FEATURES AND EQUIPMENT
Warning: The suspension of the vehicle must
be in the normal ride position before jacking.
JACKING POINTS ON FRONT AXLE 10005
JACKING POINTS ON DRIVE AXLE OEH3B762
Warning: Always unload or retract the tag axle
before jacking the vehicle from the front and
drive axle jacking points to prevent damage to
suspension components.
JACKING POINTS ON TAG AXLE OEH3B764
Warning: The jacking points on the tag axle
must be used for raising the tag axle only.
Several kinds of hydraulic jacks can be used.
Only jack at the specified jacking points. Jack
must support the following weight:
Front axle: 20,000 lbs. (9 100 kg);
Drive axle: 40,000 lbs. (18 200 kg).
Warning: Do not jack vehicle with passengers
inside. Coach weight depends on equipment
and cargo within. Check before jacking.
HYDRAULIC JACK
To raise
: turn release valve clockwise. Insert
handle in socket and raise by pumping.
To lower: remove handle and turn the release
valve slowly counterclockwise.
Always keep ram and extension screw retracted
when jack is not in use.
Service
: Check oil level when jack fails to raise
to full height. Lower ram completely with release
valve open and jack in upright position, remove
filler plug and refill to level of filler hole with
hydraulic jack oil.
Never use brake fluid.
Warning: Jack is intended for lifting only. Do
not get under the vehicle or load for any reason
unless it is properly supported with safety stands
and securely blocked.
Warning: Do not load jack above rated
capacity. Prevent "side loading", make sure load
is centered on ram. Do not push or tilt load off
jack.
TOWING
To prevent damage to the vehicle, use the two
tow eyes located under the back bumper and/or
fixed to the vehicle frame between the front axle
and the front bumper. Use only a solid link tow
bar and a safety chain to tow the vehicle. If
required, connect an auxiliary air supply to the
vehicle so the emergency/parking brakes don’t
apply while towing.
TOW EYES UNDER VEHICLE 18401
Warning: Do not carry passengers while the
coach is being towed.
Caution: To prevent damage to the drive train
components, disconnect axle shafts or
driveshaft before towing. Do not attempt to push
or pull-start the coach.
Caution: Make sure axle shafts or driveshaft
are installed correctly after towing. Tighten axle
shaft and driveshaft nuts to the correct torque
settings. Do not invert shafts.
DAYTIME RUNNING LIGHTS
The low beams illuminate automatically at
reduced intensity when the engine is started and
the parking brake is released. The daytime
running lights provide added safety by making
