CONTROLS AND INSTRUMENTS
AIR REGISTERS

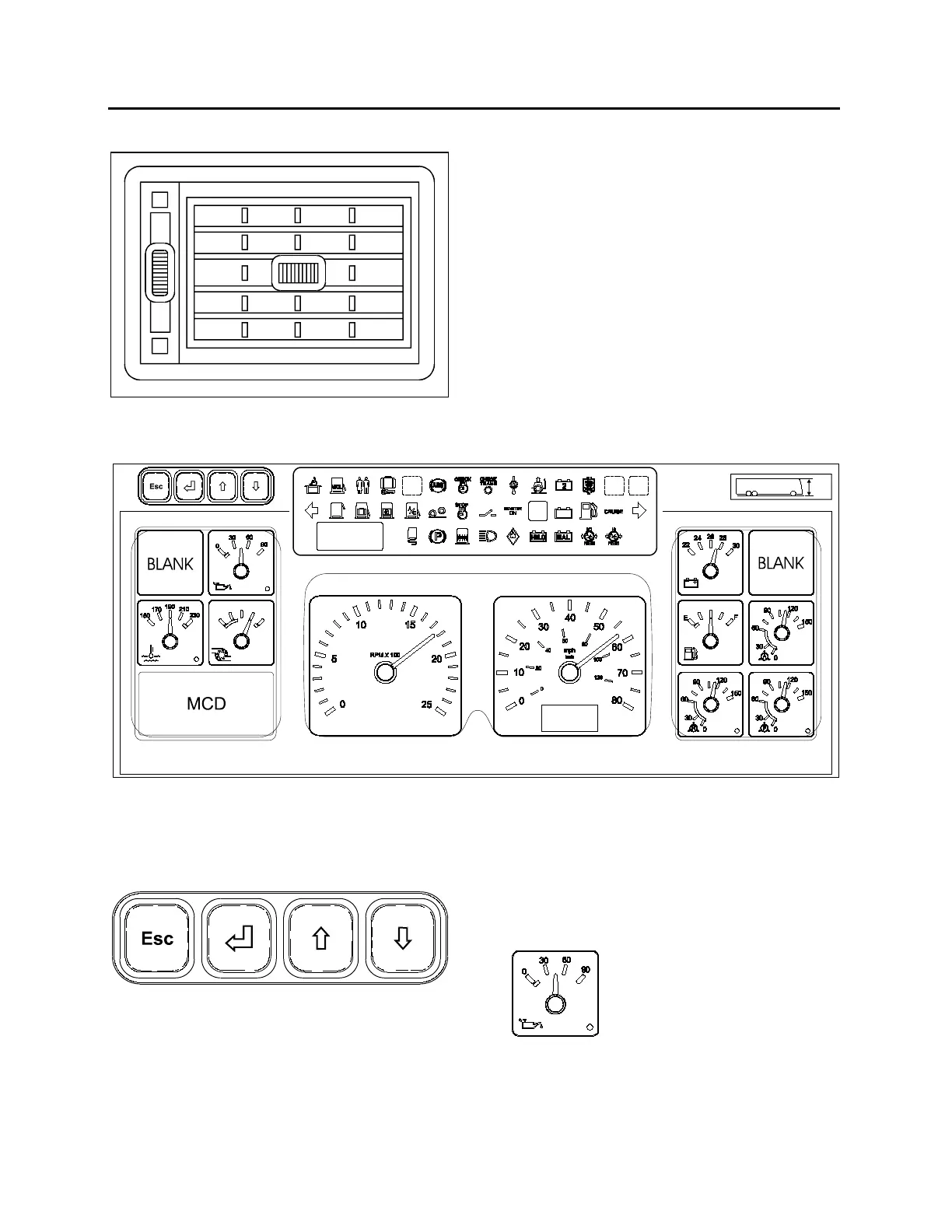

AIR REGISTER 22147
Three adjustable driver air registers in the
dashboard and one near the door feed air to the
driver's compartment. Use the HVAC control
panel to set air temperature and fan speed.
CLUSTER
CLUSTER 06379
The cluster incorporates the Message Center
Display, the Telltale Panel, the Gauges and
Vehicle Clearance Information.
MESSAGE CENTER DISPLAY (MCD)
06399
This standard feature gathers, stores and
displays important information about the
vehicle’s operation on a display screen on the
lower left portion of the cluster. Refer to
Message Center Display in Other Features
chapter for a description of how to set up and
operate the Message Center Display.
GAUGES
Note: Do not refer to dashboard instruments
during adjustment procedures. Use only
calibrated gauges.
Engine Oil Pressure
Indicates engine oil pressure
.
The normal reading should be
between 50 and 70 psi (345 -
480 kPa) at 55 mph (90 km/h).
A low oil pressure
indicator LED (bottom right
corner of gauge
) illuminates when the ECM
decides oil pressure is too low. In such a case,
the ECM will start to power down the engine
until finally shutting it off as explained under
38
