CONTROLS AND INSTRUMENTS
1
2
3
4
5
6
7
8
9
10
13
14
10
1
12 11

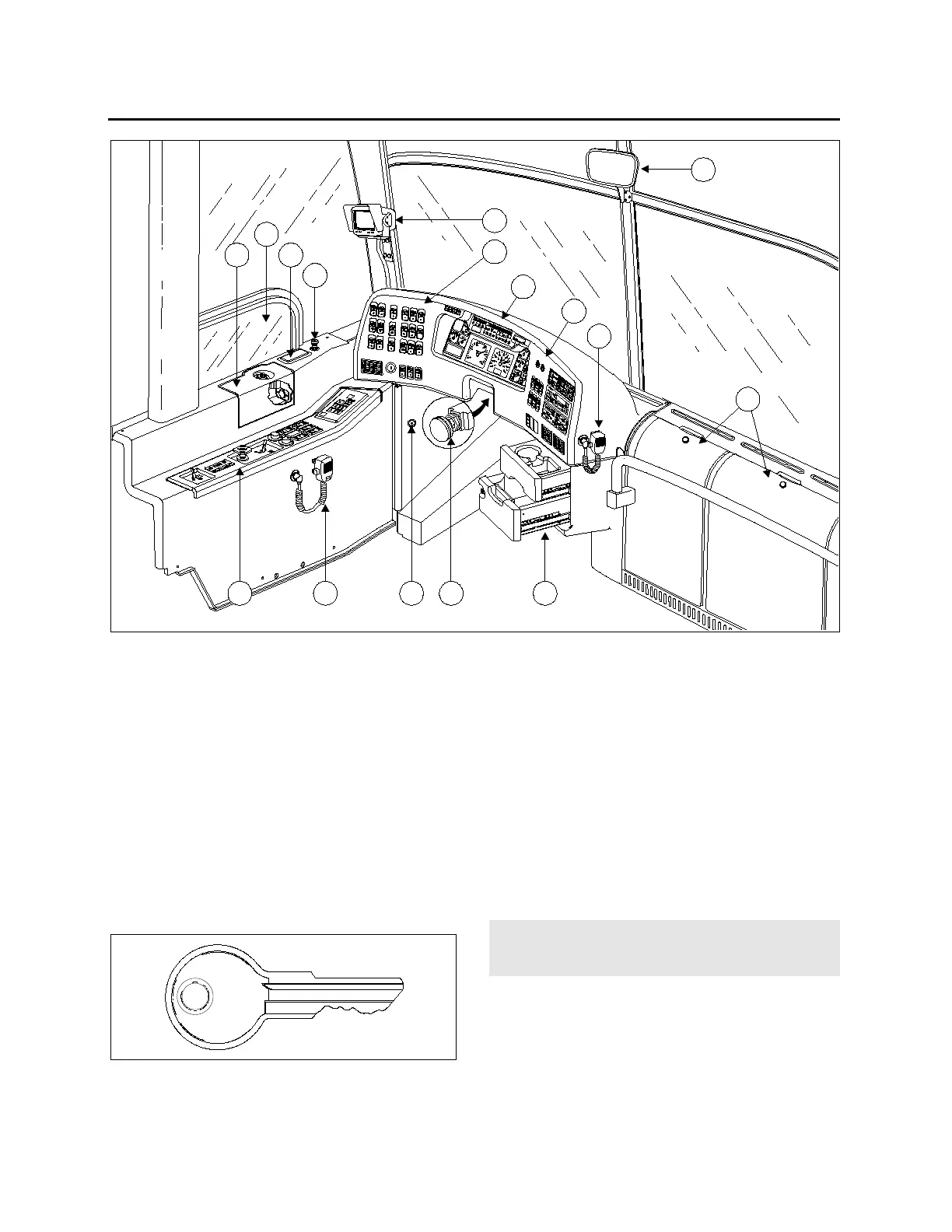

DRIVER'S AREA 18346
1.
Utility compartment;
8.
Aisle mirror;
2.
Driver’s power window;
9.
R.H. dashboard panel;
3.
Ashtray;
10.
P.A. System Microphone;
4.
Cigarette lighter;
11.
Utility drawers;
5.
Rear-view TV monitor (optional);
12.
Foot-operated steering wheel adjustment
unlock air valve;
6.
L. H. dashboard panel;
13.
Diagnostic Data Reader (DDR) receptacle;
7.
Central dashboard and cluster;
14.
Lateral control panel.
KEYS
Depending on options, up to nine different keys
are provided with the coach:
IGNITION KEY
IGNITION KEY 23056
Coaches may be equipped with an ignition lever
instead of an ignition key. With the battery master
switch activated, turn the ignition key
counterclockwise to the ACC position to activate
the electrical circuits.
To start the engine, turn the key clockwise to the
START position, then release it. The key will set
back to the ON position.
Caution: When the vehicle is parked overnight
or for an extended period of time, the battery
master switch should be set to the OFF position.
Note: When the battery master switch is set to
the OFF position, all electrical supply from the
batteries is cut off, with the exception of battery
equalizer check module, ECM, ignition and power
supply, ECU power (Transmission), coolant
heater electronic timer, coolant heater and water
re-circulating pump, pro-driver, power-verter,
entrance door and fire alarm.
