COACH EXTERIOR

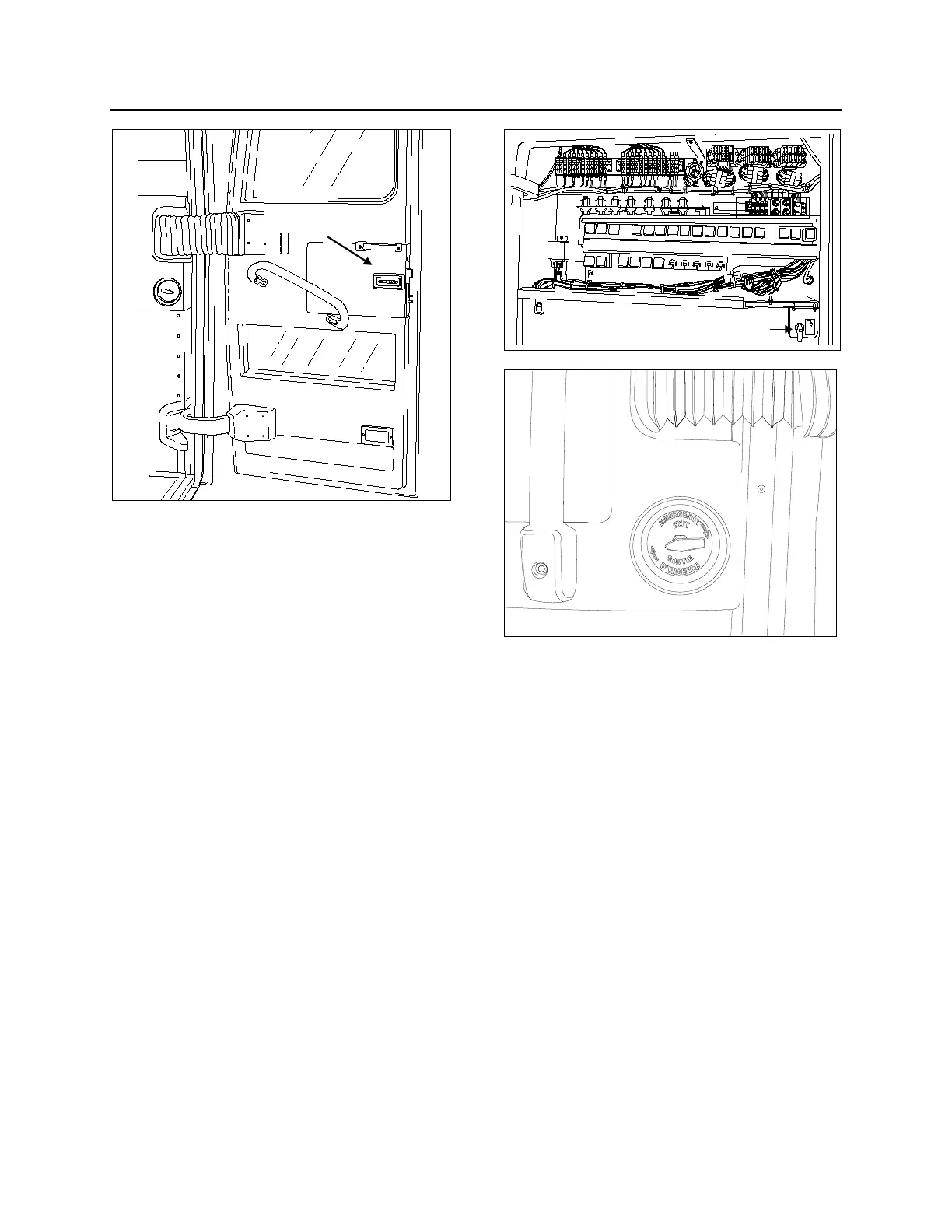

ENTRANCE DOOR 18437
To unlock the entrance door from the inside,
slide the lock lever on the inside of the door to
the left. If the orange tab on the door-lock lever
is visible, the door is unlocked.
Note: If the interior lever is used to exit the
coach and the key is not used to unlock the
door, it will lock again upon closing. Remember
to remove the keys upon exiting.
Door Operation Logic
If the switch is held in position until the door is
fully open or closed, the system holds pressure
in the door cylinder, locking the door in that
position. The door can be opened to any
position by releasing the switch (or button, if
inside) when the desired position is attained.
However, the door is not locked in any position
other than fully open or fully closed. The door
can then be opened or closed further by pushing
or pulling on the door.
When the door is almost shut, a mechanism will
finish the closing of the door. This works even
when the door is shut manually.
Emergency Door Opening
An unlock valve located in the front service
compartment allows emergency opening of the
entrance door from outside the coach. Another
unlock valve located on the front wall, close to
the entrance door allows emergency opening of
the door from the inside.
FRONT SERVICE COMPARTMENT 06461
INTERIOR UNLOCK AIR VALVE 12164
To open the door in an emergency situation, the
door must first be unlocked. Turn the unlock
valve in the direction of the arrows and push (or
pull) the door open. To close the door after
emergency opening, return the valve to its initial
position, open the door using the door cylinder,
then close the door normally. Refer to “Safety
Features and Equipment” chapter.
WHEELCHAIR LIFT DOOR
To open the optional wheelchair lift door, the
coach must be parked on a flat and level surface
with the parking brake on. The wheelchair
access door swings to the side and is
maintained open by a locking mechanism.
Open the baggage bay containing the lift
mechanism (Ricon only). The bay door is
located directly below the wheelchair lift door
and it opens to the side. If the parking brake is
not activated, a switch in the door will activate
the parking brake when it detects the door is
open.
Open the door completely until it locks in the
open position. To close the door, lift on the
locking mechanism arm and slam the door shut.
