CONTROLS AND INSTRUMENTS
SEMI-AUTOMATIC TRANSMISSION
SHIFT CONSOLE
The optional Eaton Fuller AutoShift is a ten
speed semi-automatic transmission which works
similarly to any automatic transmission except
that the driver must depress the clutch pedal for
startups and stops.

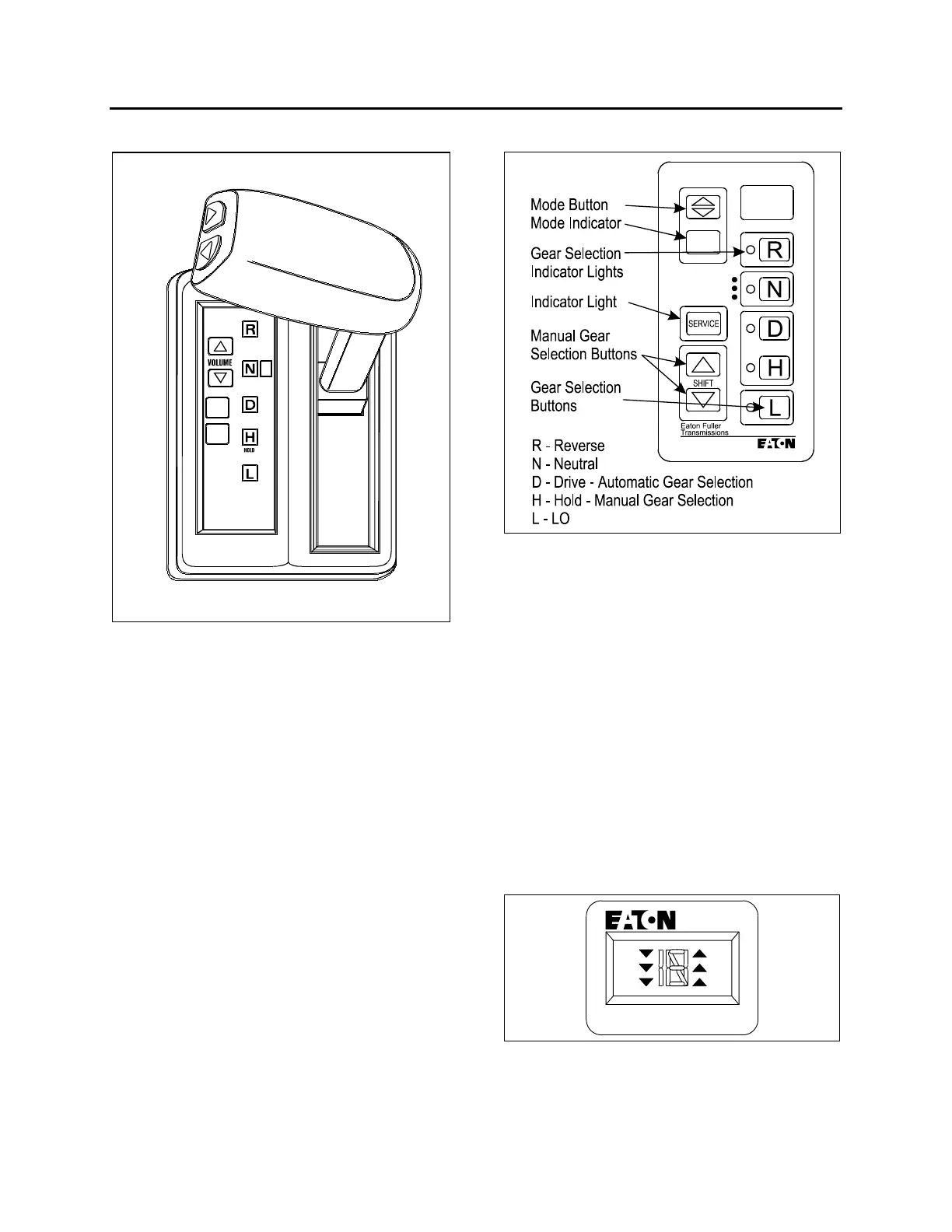

A car-like shift console contains the gear select
lever and position indicators along with indicator
lights. Gear select buttons located on the side of
the handle allow manual control of the
transmission. Optional volume control buttons at
the base of the console allow control of tone
volume.
A display screen on the L.H. control panel informs
the driver of which gear is presently engaged. A
flashing number indicates the next gear to be
engaged. The screen also displays fault codes by
flashing the first digit, then the second digit of the
code. Refer to technical Information chapter
under "Eaton Transmission Fault Codes" for
more information.
AUTOMATIC TRANSMISSION
EATON TRANSMISSION CONTROL PAD 07055
The optional Eaton AutoShift AST 7L automatic
transmission is a seven-speed automatic
transmission.
Control of the transmission is done via a push-
button control pad located on the lateral console.
Gear select buttons located on the pad allow
manual control of the transmission.
The transmission performs a self-test at power-
up. It is normal for the service light to illuminate
briefly at power-up. If the service light stays on
or illuminates while driving, the ECU has
detected a fault code. In that case have the
vehicle serviced as soon as possible.
Fault codes can be flashed on the control pad
service light. Refer to the Technical Information
chapter under Eaton Transmission Fault Codes
for more information.
GEAR DISPLAY MODULE 07056
A gear display module informs the driver of
which gear is presently engaged. A flashing
number indicates the next gear to be engaged.
UP arrows indicate that the input shaft rpm is too
