COACH INTERIOR

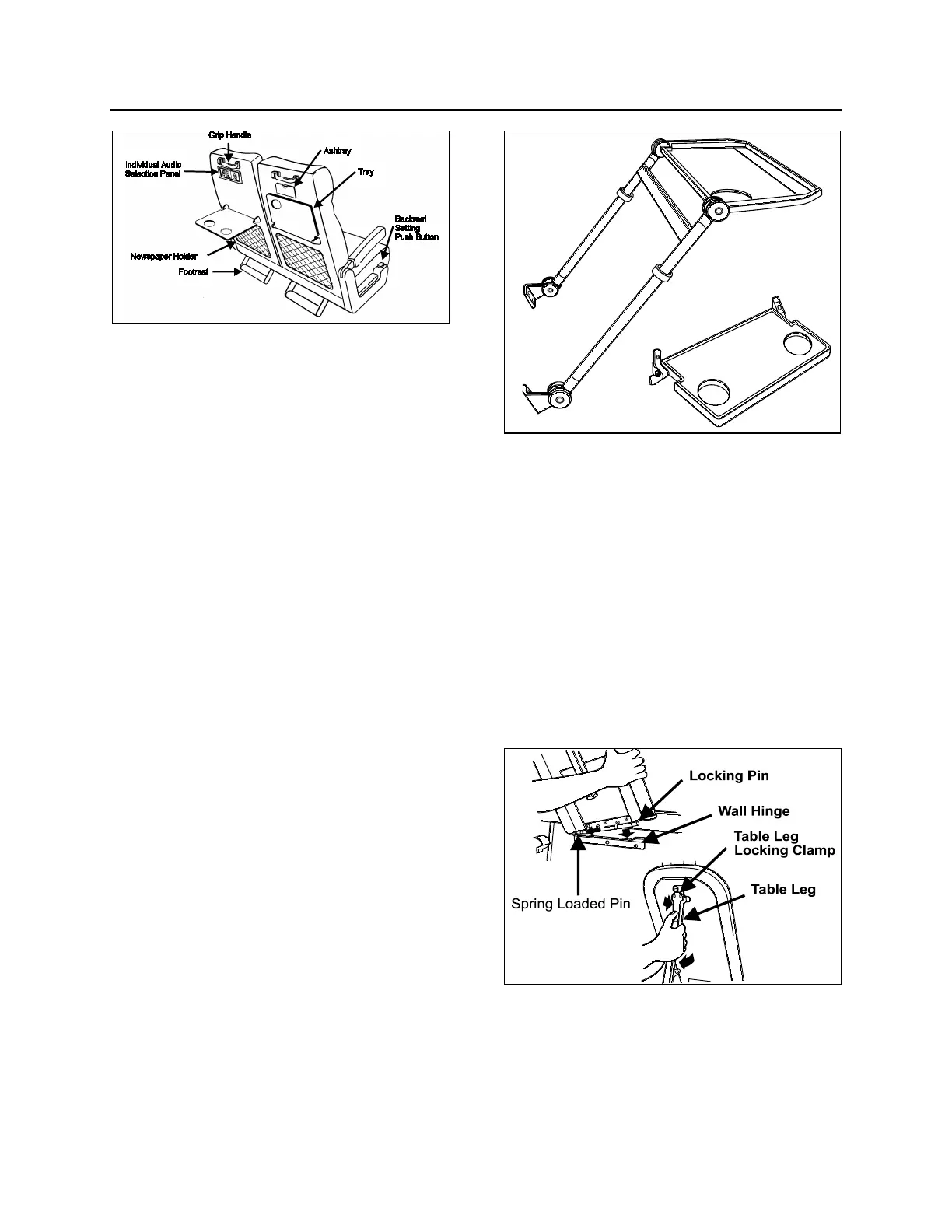

PASSENGER SEAT EQUIPMENT OEH3B226
All seats are track-mounted so that the seating
configuration can be changed. Each set is
mounted on rectangular aluminum bases to make
cleaning between the base and side wall easier.
Passenger seat backrests can be tilted by using
the push-button located on the base of the seat.
Depress and hold push-button, then adjust
backrest to the desired angle. Release push-
button to lock backrest in position.
A folding armrest is installed on the aisle side of
the passenger Another folding armrest is located
between the two seats and can be raised for
passenger convenience. A fixed armrest is
installed on the window side of the seat.
SWIVEL SEATS
The coach may be equipped with two sets of
swivel seats to allow installation of card tables.
The swivel seat can be rotated for passenger
privacy. To rotate seats, unscrew the wing nut
from under each seat cushion then remove
cushions. Remove the four wing screws, pull
seats toward the aisle and rotate the seat
counter-clockwise. Align mounting holes, secure
with wing screws and install seat cushions.
Note: Instructions for making swivel seat
adjustments are affixed on the rear frame under
the seat cushion.
FOLDING TRAYS
Two optional folding tray models can be installed
in the coach.
FOLDING TRAY MODELS OFH3B232
Note: Both tray models as well as the tray
installed in each modesty panel, are equipped
with tumbler holders.
CARD TABLES
Two card tables are provided as standard
equipment and are used in the passenger swivel
seat configuration. The card tables are stored in
the overhead storage compartments in separate
stowage bags.
To install the card table, hold it at 45
o
(degrees) to
the side wall. Insert the spring-loaded pin then
the locking pin into the hinge. Push on the
locking clight to release the leg. Unfold the leg
until the clight locks it in position.
CARD TABLE INSTALLATION OEH3B234
QUICK-LOUNGE SYSTEM
"Quick-Lounge" is a quick-fit modular system
providing luxurious seating accommodations for
passengers.
The optional “Quick-Lounge” system occupies
the same space as the paired seating
