COACH EXTERIOR
ENGINE COMPARTMENT

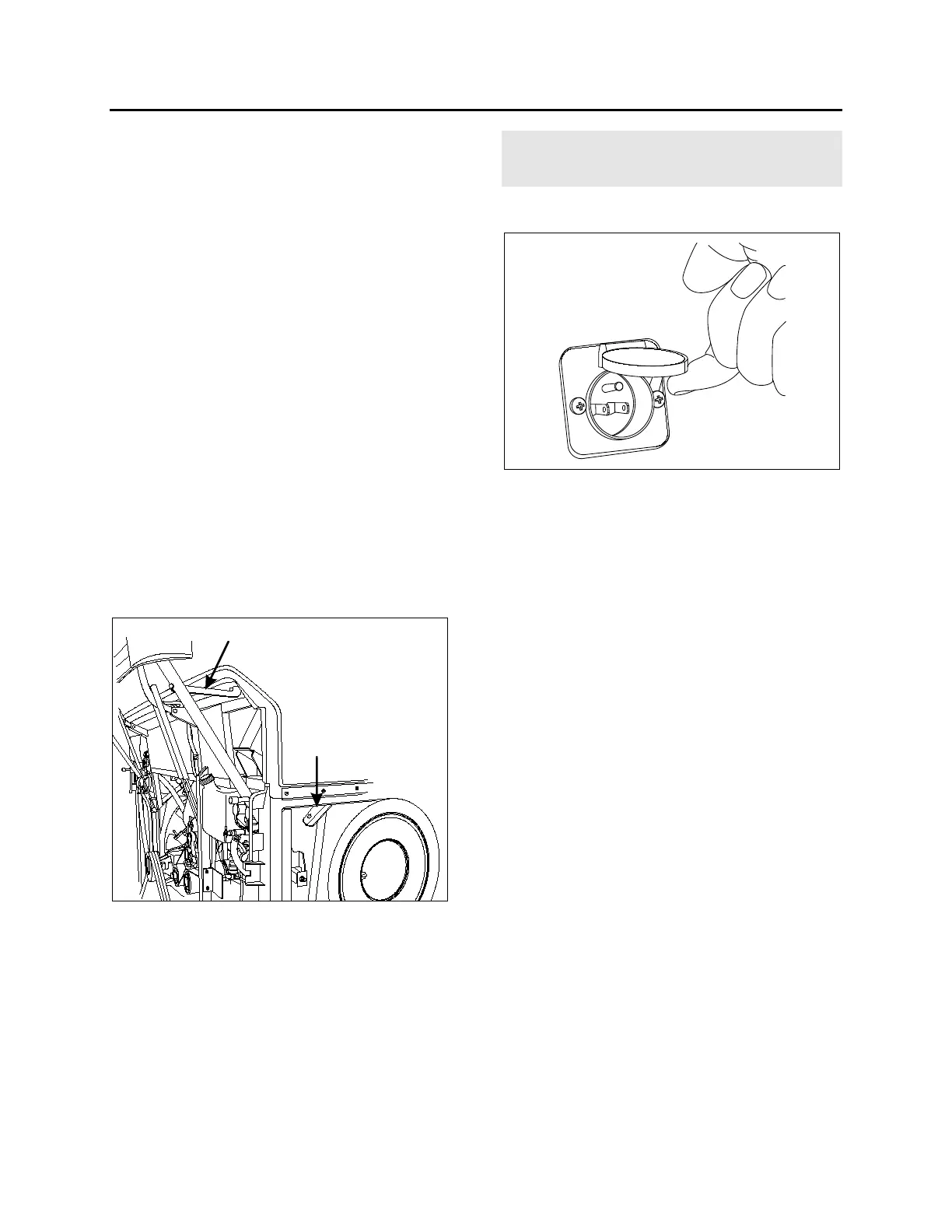

To open the rear engine door, first open the curb
side door then press the release lever. The rear
door release lever is located in the upper rear
section of the engine compartment, as seen
when looking into the curb side engine
compartment. Unlatch the door and pull it out
and up. The door should stay open on it’s own
but it is recommended to always apply the safety
catch as shown.
The engine compartment curb-side door
provides access to the following (if equipped):
• Engine compartment rear door release
lever;
• Alternators;
• Air circuit fill valve and drain cock;
• Fuel filter/water separator;
• Cold weather starting fluid bottle (optional);
• A/C Compressor;
• Air system compressor;
• Sump tank.
Door Latch
Release Lever
Safety Catch
ENGINE COMPARTMENT 18331
This door can be locked or unlocked using the
exterior compartment key or, if so equipped, by
the central door locking system. To open, pull
up the door handle to release the latch, then pull
the door open. The curb-side door also has a
safety catch to prevent it from closing
inadvertently. Release the catch before
attempting to close.
When open, lights illuminate in the engine
compartment and a telltale light illuminates in
the dashboard.
Warning: Unless otherwise stated, do not run
the engine when the engine compartment is
open.
110-120 Volt Connector
110 VOLT CONNECTOR 06390
All connectors must be used with a 110 - 120
volt grounded supply. A connector is located on
the rear engine door and is connected to the
engine block heater and to the fresh water tank
heater, if equipped. Another optional connector
may be located on the main power compartment
door. It connects to the battery charger and
allows for in-station lighting. Refer to "Other
Features" chapter.
MAIN POWER COMPARTMENT
This compartment is closed off from the engine
compartment and is used to house batteries and
electrical components. The following items are
located in the main power compartment:
• Batteries;
• Battery equalizer;
• Main circuit breakers;
• Booster terminals;
• Safety switch;
• Battery charger (optional).
To open the door, insert the key in the lock and
turn. The door will pop open.
Lights in the compartment turn ON automatically
when the door is opened. A telltale light
indicating a compartment door is open will
illuminate on the dashboard.
8
