CONTROLS AND INSTRUMENTS
This telltale light is only activated when the
HVAC control panel is in “Technician” mode.
Refer to the Maintenance Manu
al for
information on control panel troubleshooting
mode.
STEERING COLUMN CONTROLS
Many of the most frequently used controls are
conveniently placed on the steering column or
the steering wheel, just like a passenger car.
The Multi-function lever is located on the left
side of the steering wheel while the optional
transmission retarder lever is located on the
right side of the steering wheel. Switches for the
electric horn and the air horn are located directly
on the steering wheel.
MULTI-FUNCTION LEVER

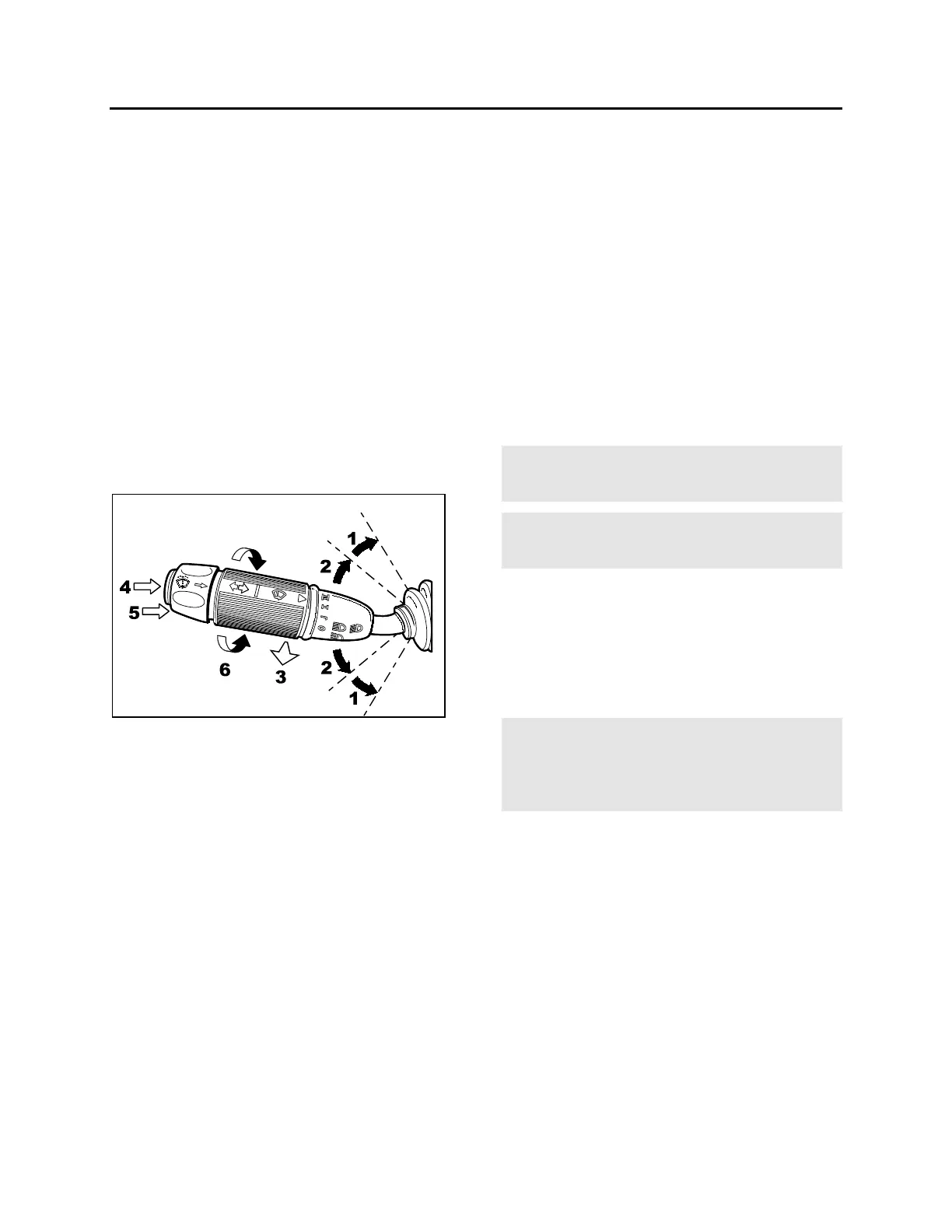

MULTI-FUNCTION LEVER 23133
The multi-function lever is used to operate the
following:
Turn Signal (1)
Move the lever all the way up until it locks in
position to signal a right turn. Move the lever all
the way down until it locks in position to signal a
left turn. The lever automatically returns to the
horizontal OFF position once the turn is
completed.
Lane Change Signal (2)
Move the lever part way to the catch position
and hold until the lane change maneuver is
completed. The lever will spring back into the
OFF position once released.
Headlight Beam Toggle Switch (3)
Toggle between high and low beams by pulling
the lever rearward. Pulling the lever rearward
while the lights are OFF will flash the headlights.
Courtesy Blinkers (4)
Clearance and parking lights can be flashed by
pressing the button located on the lever tip.
Windshield Washer Control (5)
Push the external ring at the end of the lever
toward the steering column to activate the
windshield washers. The wipers come ON and
continue wiping for a few seconds after the ring
is released.
Warning: Before using the windshield washers
in cold weather, heat the windshield with the
defroster to prevent icing and reduced visibility.
Caution: To avoid damaging the pump
mechanism, do not use the windshield washer
when the fluid level is very low or empty.
Windshield Wipers (6)
Turn the lever counterclockwise to activate the
windshield wipers. The first position activates
the wipers intermittently. The second position is
the slow speed and the third position is for high
speed wiping.
Caution: To avoid scratching the windshield,
do not operate the wipers when the windshield is
dry. To avoid damaging the wiper motor, loosen
wiper blades that may be frozen to the
windshield before operating the wipers.
ELECTRIC HORN
The electric horn buttons are on the steering
wheel spokes. Use only the electric horn in
urban areas.
