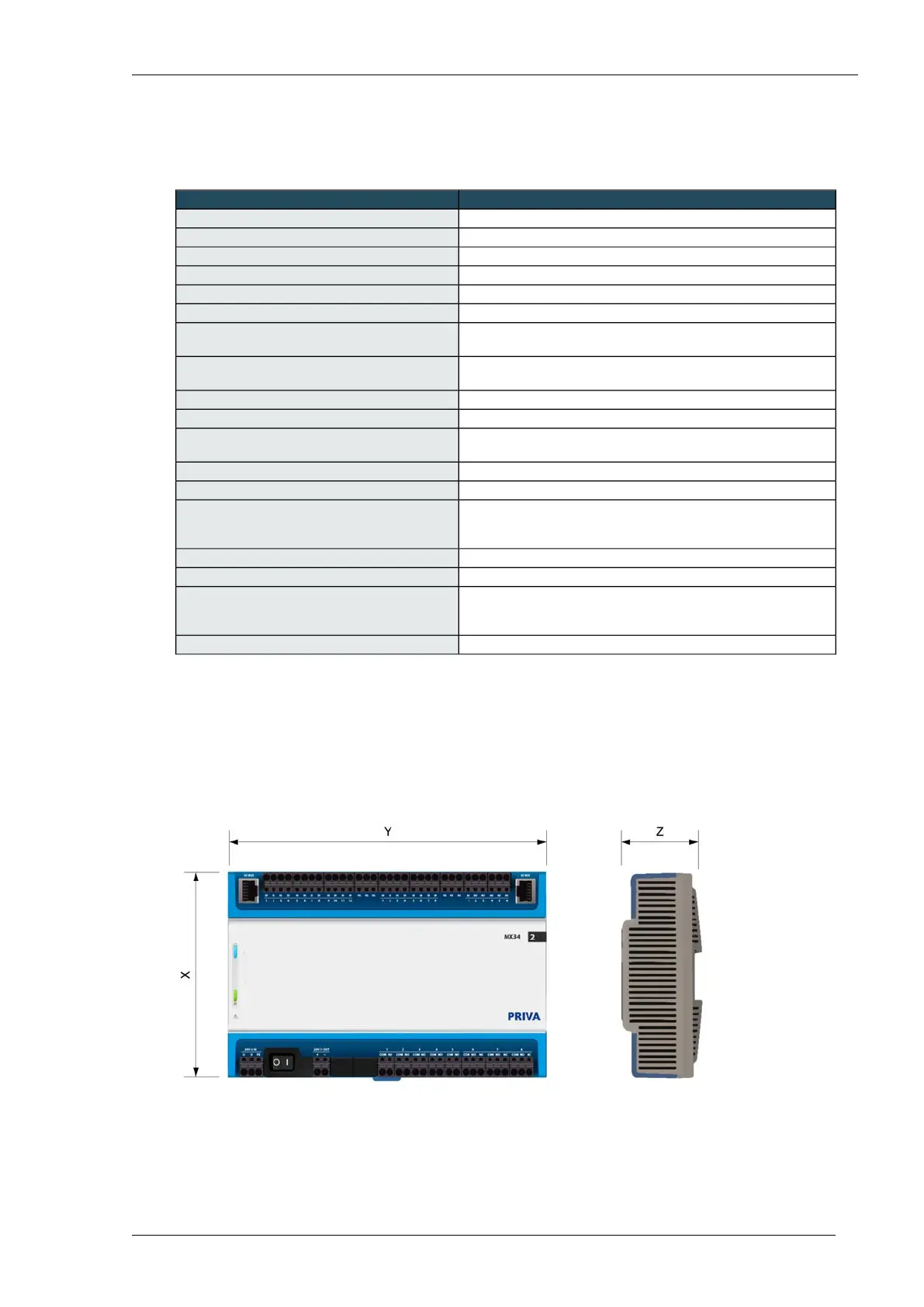

Specifications of Priva Blue ID C-Line MX34 Mix input/output
module
General
Priva Blue ID C-Line MX34 Mix input/output moduleModule article description
5211001Module article number
140 x 216 x 62 mm (5.5 x 8.5 x 2.5 inches)Dimensions (XYZ)
12 TE (HP) (1 TE = 18 mm (0.71 inches))Width according to DIN 43880
53.5 mm (2.11 inches)Mounting depth for DIN 43870 distribution box ¹
0.5 kg (1.10 lb)Weight
24 VDC: 16.4 W
24 VAC: 24.3 VA
Maximum power consumption (including power
for I/O bus and power supply output)
24 VDC: 5.2 W
24 VAC: 8.8 VA
Maximum power consumption (excluding power
for I/O bus and power supply output)
4.1 WTypical power dissipation ²
796,364 hoursMTBF ³
clicks onto DIN rail
can be mounted in DIN 43870 distribution box
Installation
mixture of polycarbonate and ABSHousing material
TPE (synthetic rubber)Button material
12, consisting of:
10 x low current pull-up (inputs 1 … 10)
2 x high current pull-up (inputs 11 and 12)
Number of digital inputs
8Number of universal inputs
6Number of analogue outputs
8, consisting of:
5 with normally open contact
3 with changeover contact
Number of relay outputs
+/- 2 °C (35.6 °F)Accuracy of internal temperature measurements
¹ measured between the front of the DIN rail and the rear of the cover plate.
² Dissipation under the following conditions:
- I/O load of 50%
- 50% of the LEDs on
³ The MTBF is calculated according to the Telcordia SR-332 standard Issue 3 under the following conditions:
- ambient temperature: 35 … 50°C (95 … 122 °F)
- supply voltage: 24 VDC
- time in operation per day: 24 hours
- reliability level: 60%
Specifications of inputs and outputs
For the specifications of the inputs and outputs, see Specifications of inputs and outputs (page 131)
