Compass cabinet components
The Compass cabinet consists of the following main components:
• a controller for controlling the system
• modules with inputs and outputs for connecting the sensors or interfaces
• a gateway for configuring the system or controlling the system via a smartphone
• power supplies for the components in the cabinet and the connected sensors

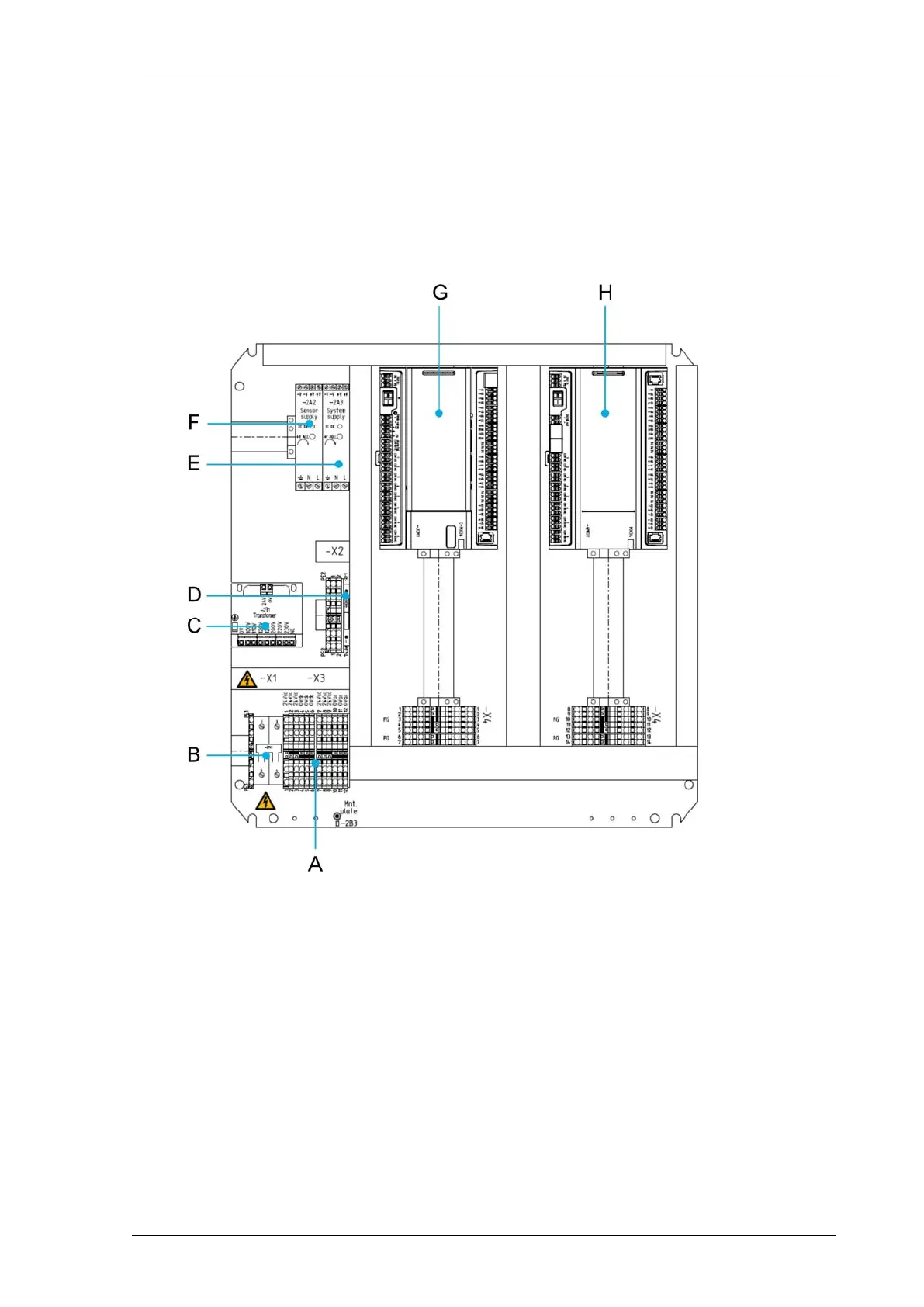

Compass 4S hardware configuration
E. 24 VDC system power supplyA. 0 V and 24 V connections (both VAC and VDC)
F. 24 VDC power supply field equipmentB. circuit breaker
G. DIN rail with controller and space for expansion modulesC. 24 VAC transformer
H. DIN rail with Mix I/O module and space for expansion
modules
D. 24 VAC fuse
