Priva Compass - Flow Sensor; Connecting

142 pages

Save Page as PDF

To Next Page

To Previous Page

Flow sensor

Connecting

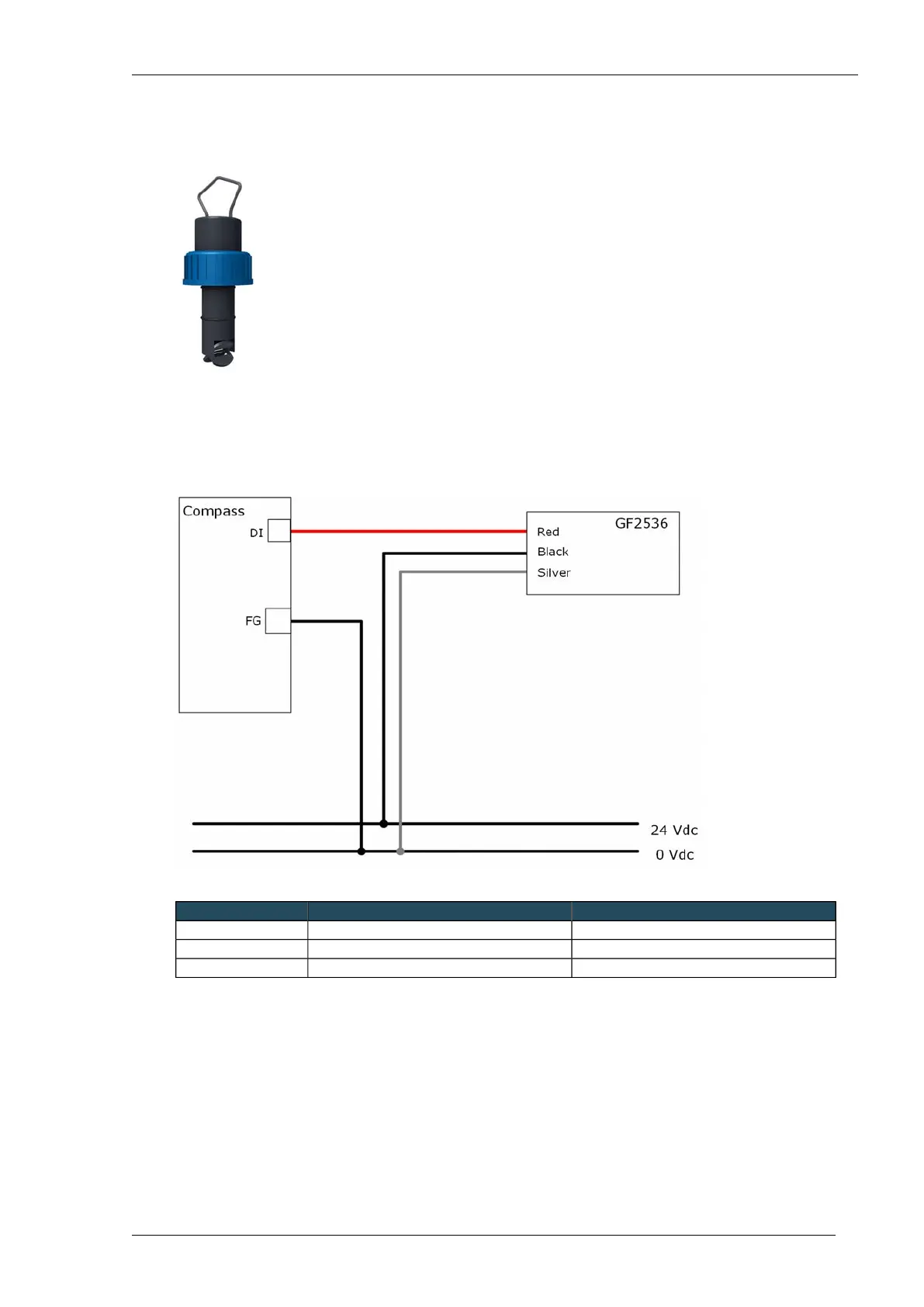

The flow sensor records the volume flow through the irrigation water pipe.

ConnectionFunctionColour

digital input of Compassopen collector signal outputRed

24 VDCpower supply 3.3 .. 24 VDCBlack

FG of CompassgroundMetallic

Installing Priva Compass - 00.01482
