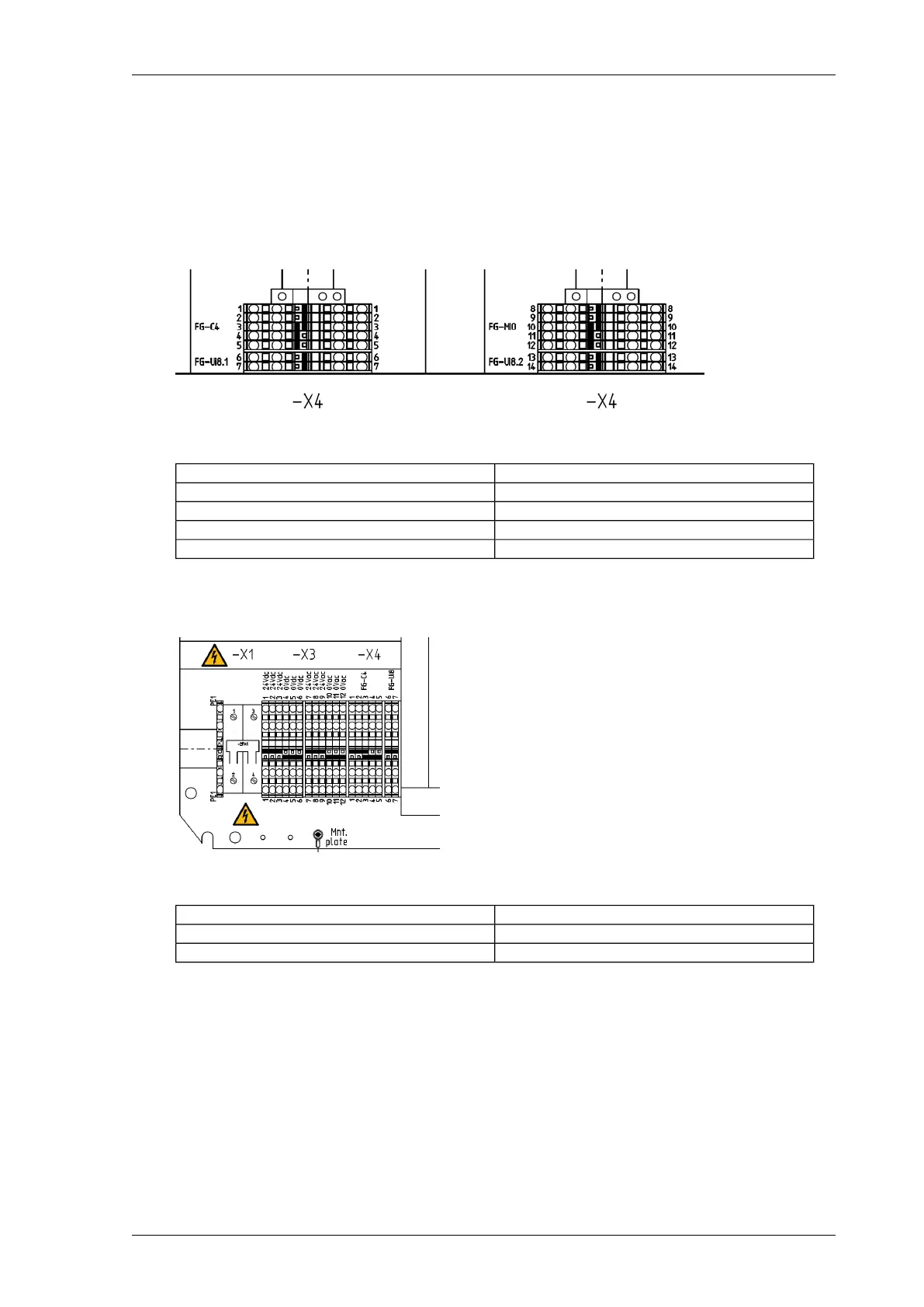

Compass FG terminals
The Compass cabinet has multiple sets of FG terminals. The FG terminals must not be used randomly.
The FG terminals are specific to the different modules in the cabinet. Extension modules are delivered
separately and must therefore be connected with the correct FG terminals after installation.
Compass 4S
FG terminals Compass 4S
ForFG terminals
C4 C-MX34 controllerX4.1 … X4.5
UI8 extension module 1X4.6 … X4.7
MX34 Mix I/O moduleX4.8 … X4.12
UI8 extension module 2X4.13 … X4.14
Compass 2S
FG terminals Compass 2S
ForFG terminal
C4 C-MX34 controllerX4.1 … X4.5
UI8 extension module 1X4.6 … X4.7
13Installing Priva Compass - 00.014
Compass cabinet components
