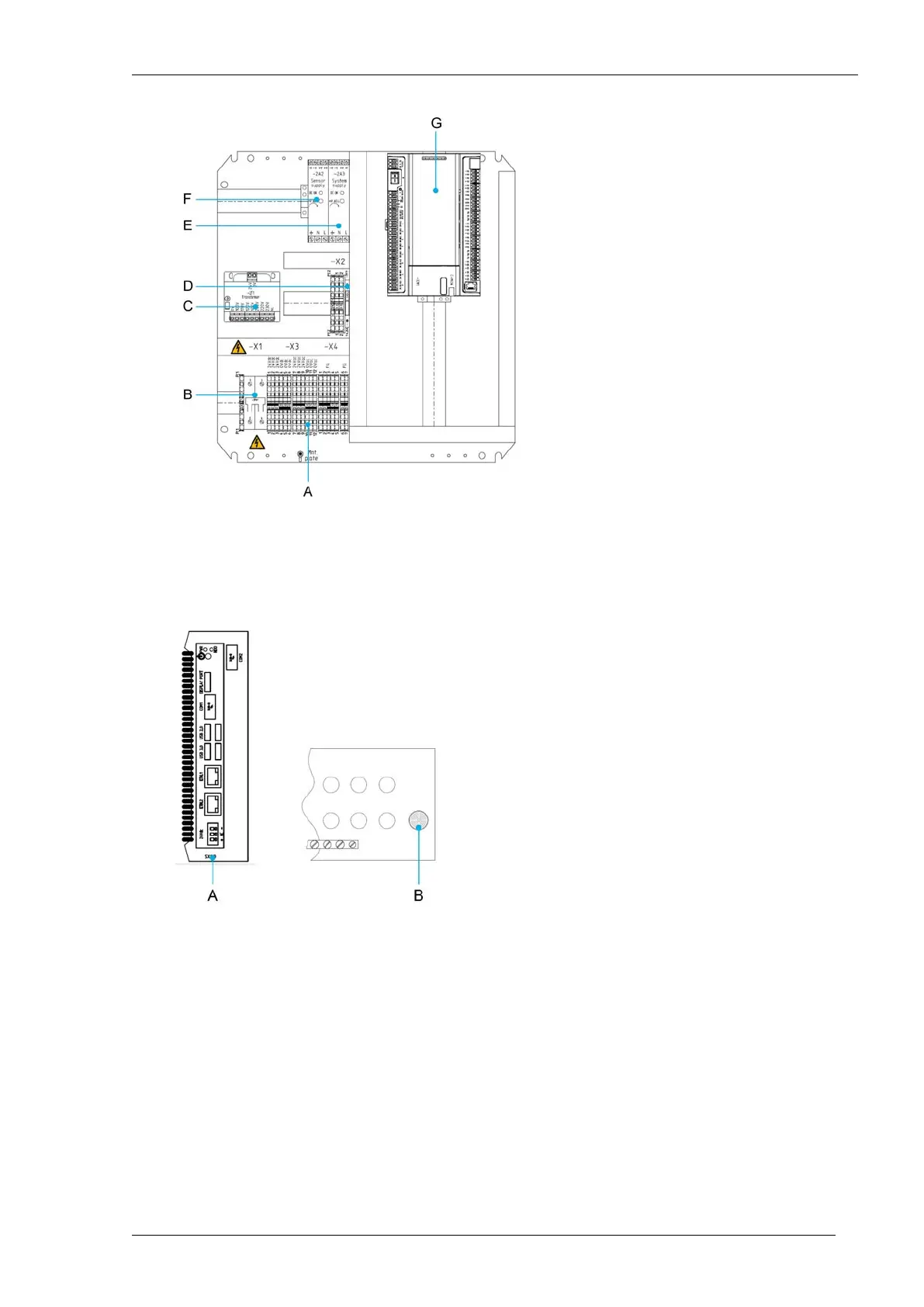

Compass 2S hardware configuration
E. 24 VDC system power supplyA. 0 V and 24 V connections (both VAC and VDC)
F. 24 VDC power supply field equipmentB. circuit breaker
G. DIN rail with controller and space for expansion modulesC. 24 VAC transformer
D. 24 VAC fuse
Door and underside of Compass 4S and Compass 2S
B. buzzer (on the bottom of the cabinet)A. Priva Gateway (mounted on the door)
