Cable grommets and glands
The underside of the Compass cabinet has various types of cable grommets with cable glands. The
cable glands are intended for various types of cabling. Always use a cable grommet and gland that
is associated with a cable type with the specified cable diameter.
Always close a cable gland with a supplied dummy plug if a cable grommet is not being used.
Cable diameterCable typeNumberCable grommet /
gland
10 … 18 mmEthernet
optical fibre ¹
2PG21
6 … 12 mmmains power supply
other cabling
2M20
9 … 16 mmcabling for field equipment6 (Compass 2S)
10 (Compass 4S)
M25
¹ optional

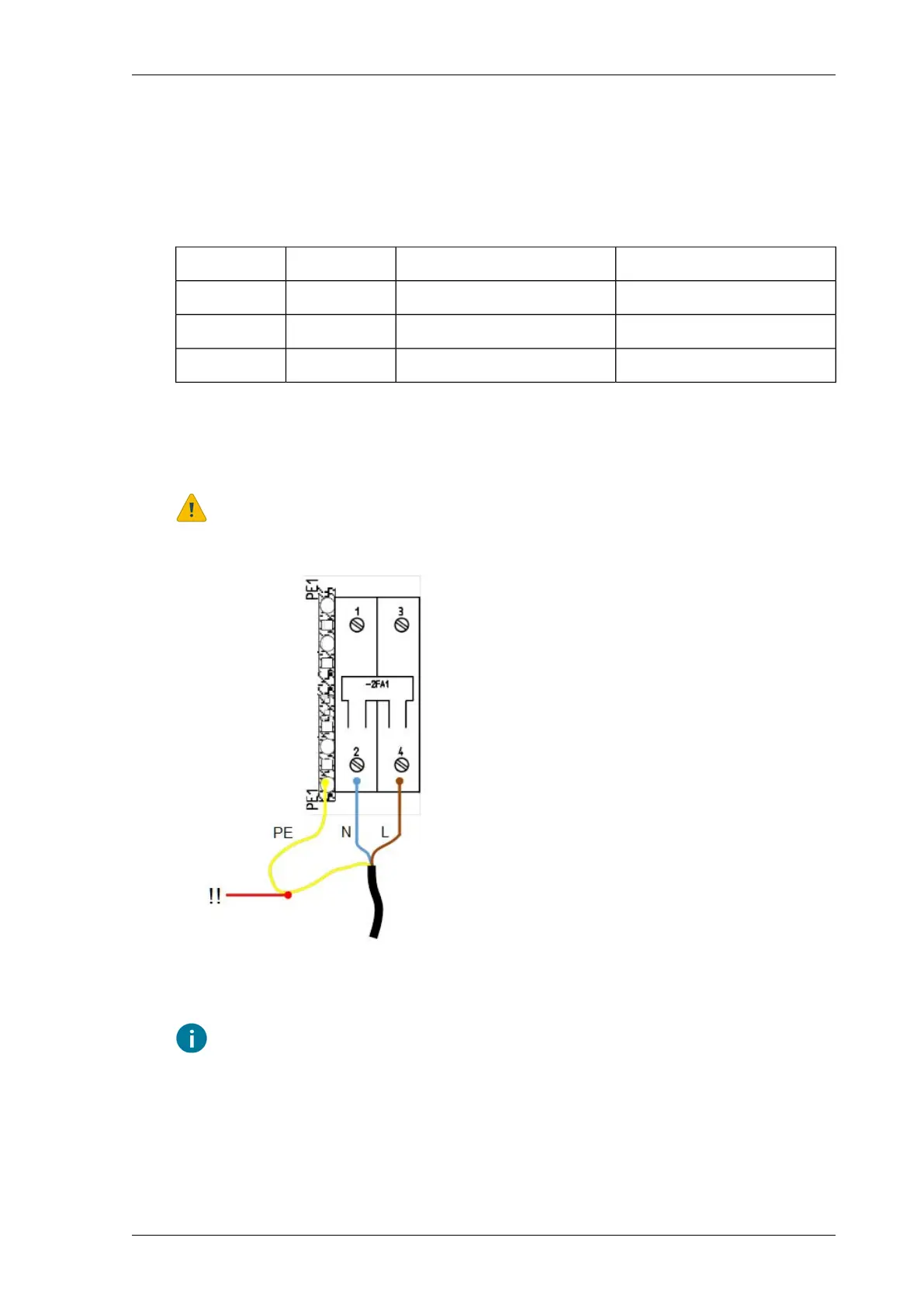

Connecting the mains cable
Always switch off the mains power supply when you are working on electrical connections.
L: Line (phase)PE: Protective Earth (ground)
!!: Length of earth wire = 2x length of phase wireN: Neutral
Use a mains cable with a diameter of 5 … 10 mm. This is suitable for the M20 cable gland.
17Installing Priva Compass - 00.014
