LEDs and line-up LED
During the various phases of commissioning and operation, the LEDs on the modules and the line-up
LED should be predictably on or off, or flashing. The figure and table below show the possible flashing
patterns. After that, there follows an explanation of the meaning of the flashing patterns on the
controller and all modules.

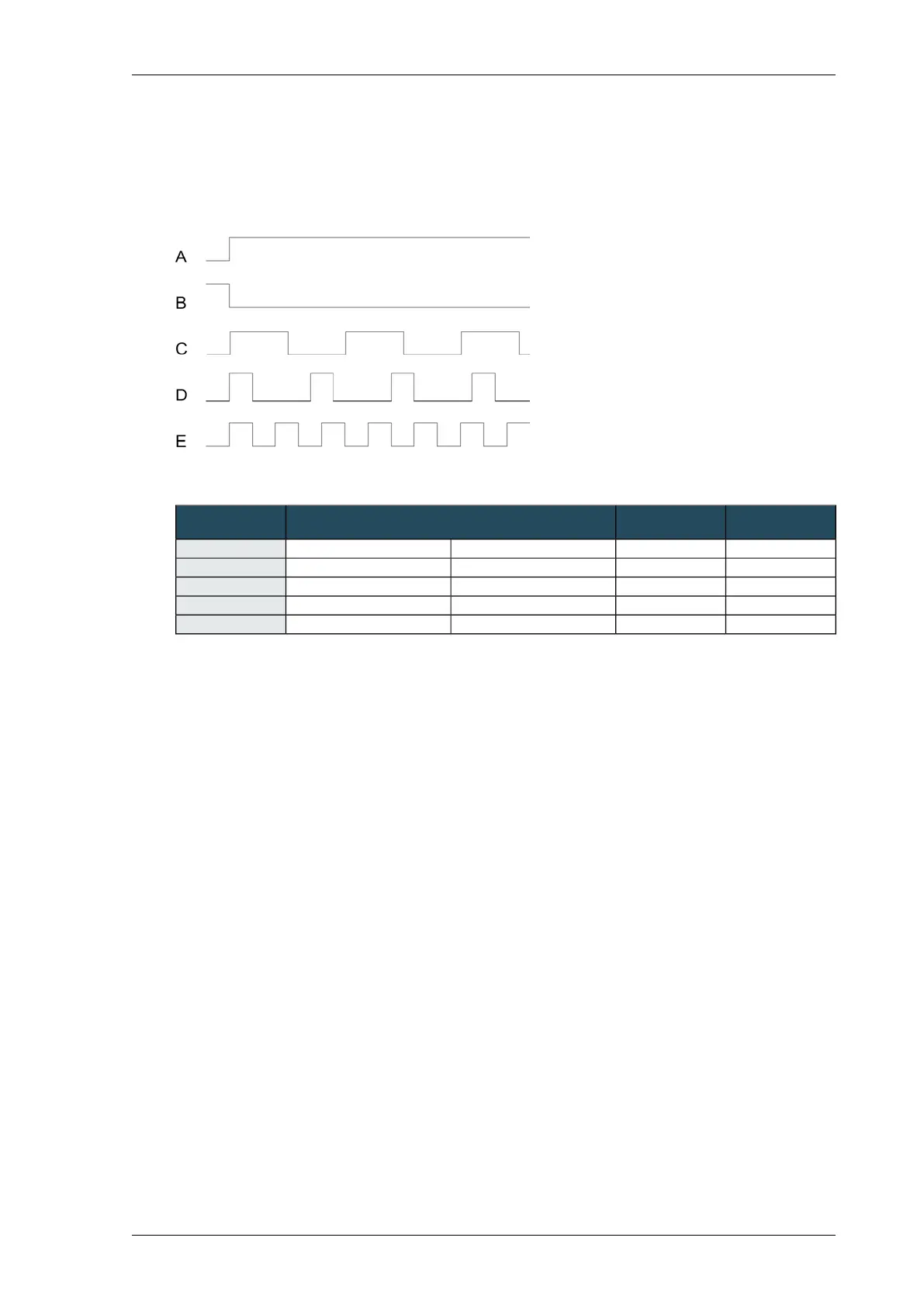

Flashing patterns
LEDsLine-up LEDBehaviour
xx-LED is continuously onA
xx-LED is continuously offB
x0.5 sec. on / 0.5 sec. offLED flashing slowlyC
x0.2 sec. on / 0.5 sec. offLED flashing irregularlyD
xx0.2 sec. on / 0.2 sec. offLED flashing quicklyE
135Installing Priva Compass - 00.014
