Proficient Audio Systems M80 - Connections; Speaker and Subwoofer Connections

24
CONNECTIONS
Front
Left
Front
Right
16AWG Stranded (minimum) Speaker Wire
Subwoofer
Sub
Audio IN
Sub
Control IN
RCA-RCA
Cable
(or appropriate)
Mini-Mini
Cable
(or appropriate)
IR IN
IR OUT
Center
Surround
Left
Surround
Right
Surround
Back
Left
Surround
Back
Right
CENTER
CONTROL
IN
AUDIO
IN
16AWG Stranded (minimum)
Speaker Wire
16AWG Stranded
(minimum)
Speaker Wire
White Stripe
To Positive
White Stripe
To Positive
White Stripe
To Positive
White
Stripe
To Positive
White Stripe
To Positive
White Stripe
To Positive
White Stripe
To Positive

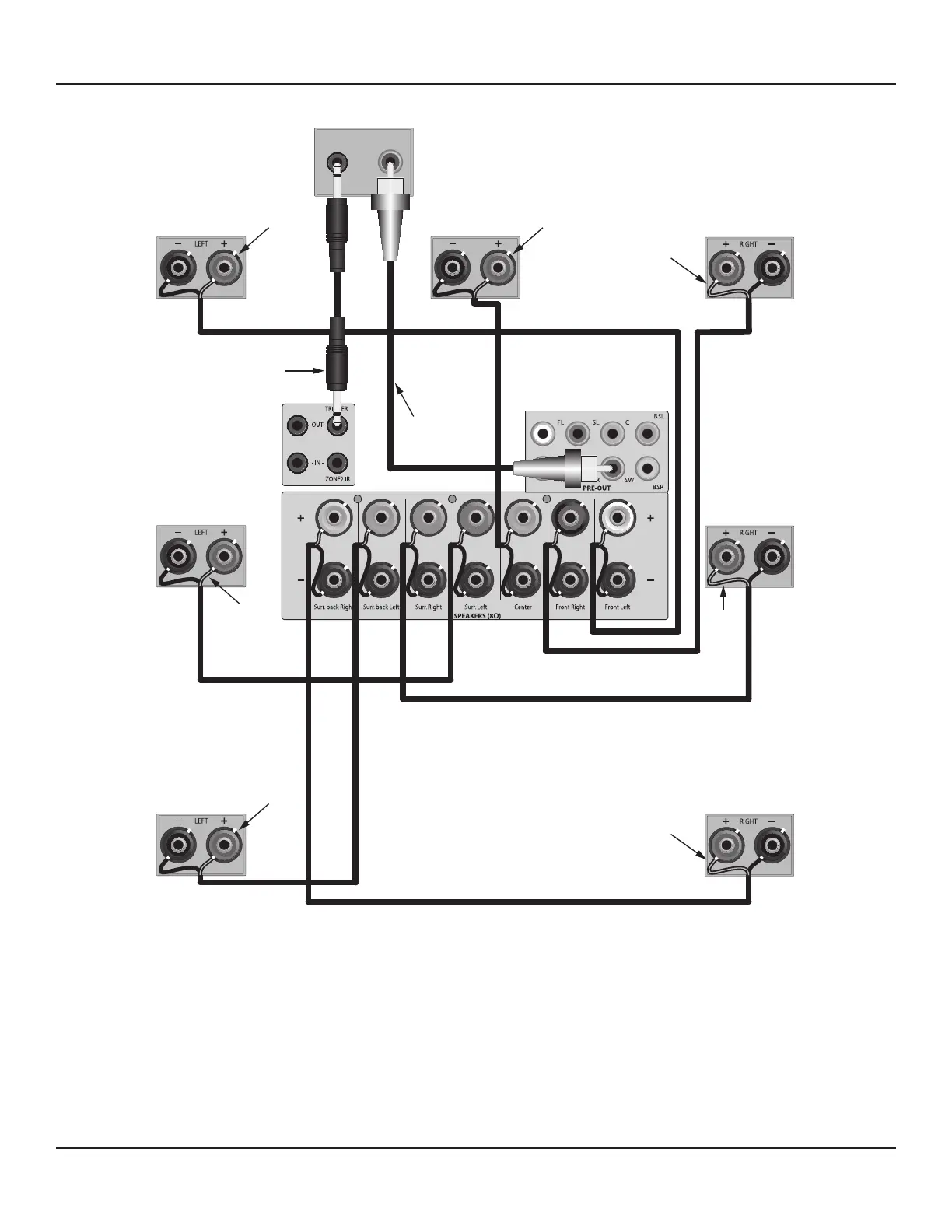

Diagram 7 Speaker & Subwoofer Connections
SPEAKER AND SUBWOOFER CONNECTIONS
Diagram 7 shows a typical application for connecting speakers to the M80 in a 7.1 Surround conguration. Connections for a 5.1
Surround conguration are as shown in Diagram 7 without the Surround Back Speakers. Connections for a stereo conguration
are as shown without the Surround or Back Surround Speakers. The subwoofer connection is optional in a stereo conguration.
Note: The M80 can safely drive 4Ω or 8Ω speakers. 8Ω speakers are recommended for cleanest sound, lowest temperature opera-
tion and to minimize power consumption. Do not connect more than one speaker directly to a set of Speaker Terminals (+/-) at
any time. This can cause the M80 to shut down and may damage the unit. This type of damage is not covered by the Warranty.
For information on Zone 2 speaker connections, see section: Multizone Conguration.
