OPERATING THE M80
Press < to Return Press > to Advance
Tone
Controls
DSP
Options
Listening
Mode
< >
Tone Defeat
Treble
Bass
O
+2 dB
0 dB

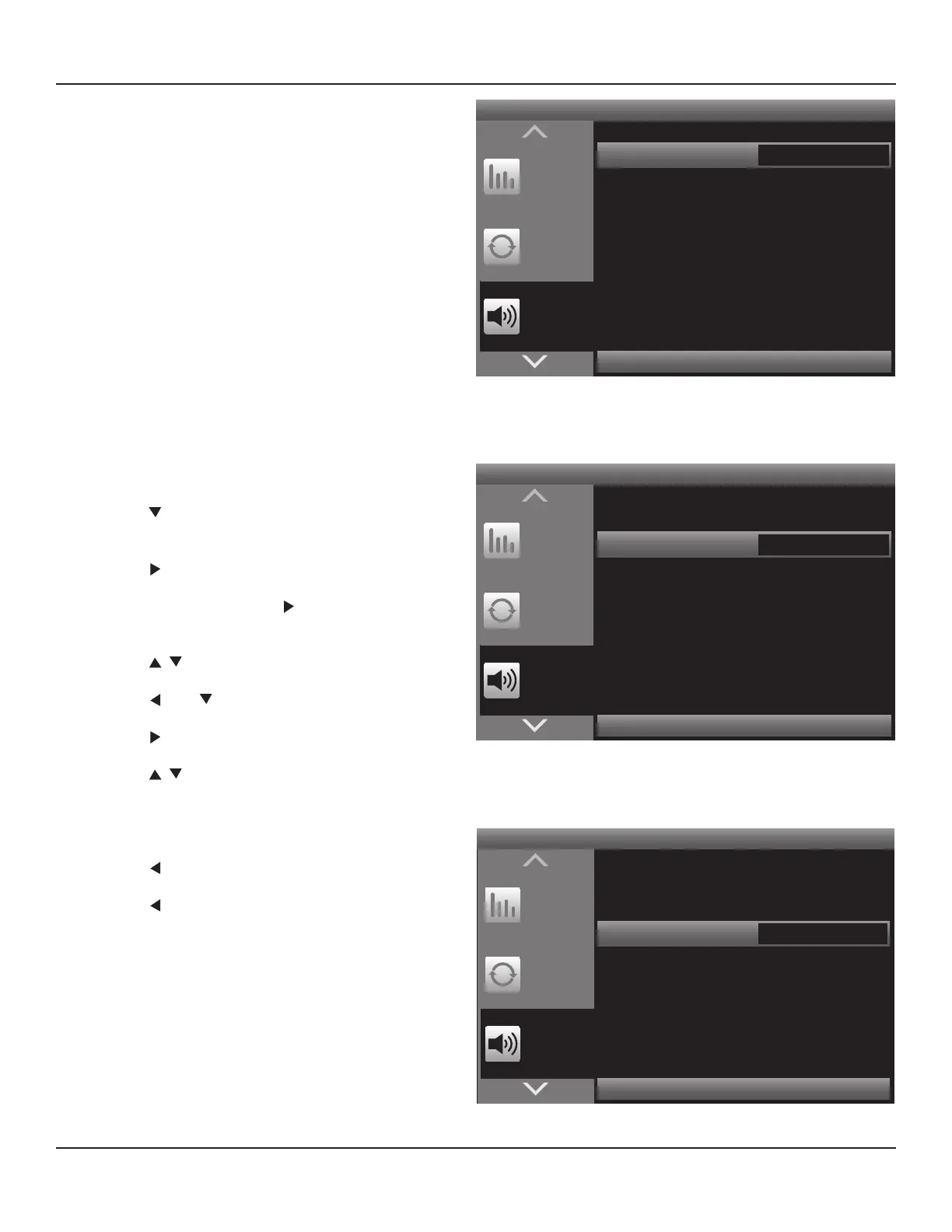

Diagram 82 OSD Tone Controls
Tone Controls
The M80 Tone Controls can be adjusted two ways. One is by
using the OSD the other is by using the Tone button on the
M80 Remote.
The Tone Controls have two modes. Tone Defeat OFF has
the audio signals (analog or digital) pass through the Tone
Controls. Tone Defeat ON has audio signals (analog or digital)
bypass the Tone Controls.
Treble Range: +/-10dB
Bass Range: +/- 10dB
Tone Controls - OSD
The OSD provides intuitive tone controls with the added
benet of the On-Screen Display providing visual con-
rmation of Tone settings when the M80 is hidden in a
cabinet or closet and the Front Panel Display is not directly
visible.
1. Press the Main Menu Button on the M80 Front Panel
or Menu button on the M80 Remote. The OSD will ap-
pear on the Video Display.
2. Press two times so Tone Controls is highlighted in
the OSD Menu. Diagram 82
3. Press . The Tone Defeat line be highlighted.
4. If Tone Defeat is ON, press . The Tone Defeat win-
dow become active.
5. Press to set Tone Defeat to OFF.
6. Press then the Treble line will be highlighted.
Diagram 83
7. Press . The Treble window become active.
8. Press to adjust Treble. The setting will be saved
as it is made.
9. Repeat Steps 6-8 to adjust Bass. Diagram 84
10. Press twice to return to the OSD Menu.
11. Press or Menu to exit the OSD.
