ProMinent gamma/ X Supplementary Operating Instructions

CAUTION!
Pump can be damaged
The panel connector at the housing can break off.
– Never connect a T-coupler directly to the
housing.
Connect the CAN cable with the CANopen bus connector as
shown below (For more - see the documentation for your CANopen
installation).
Insert the mains plug in the power socket - the metering pump
starts to pump as necessary.
9
7
8
6
5
5
8
13
14
P_G_0078_SW

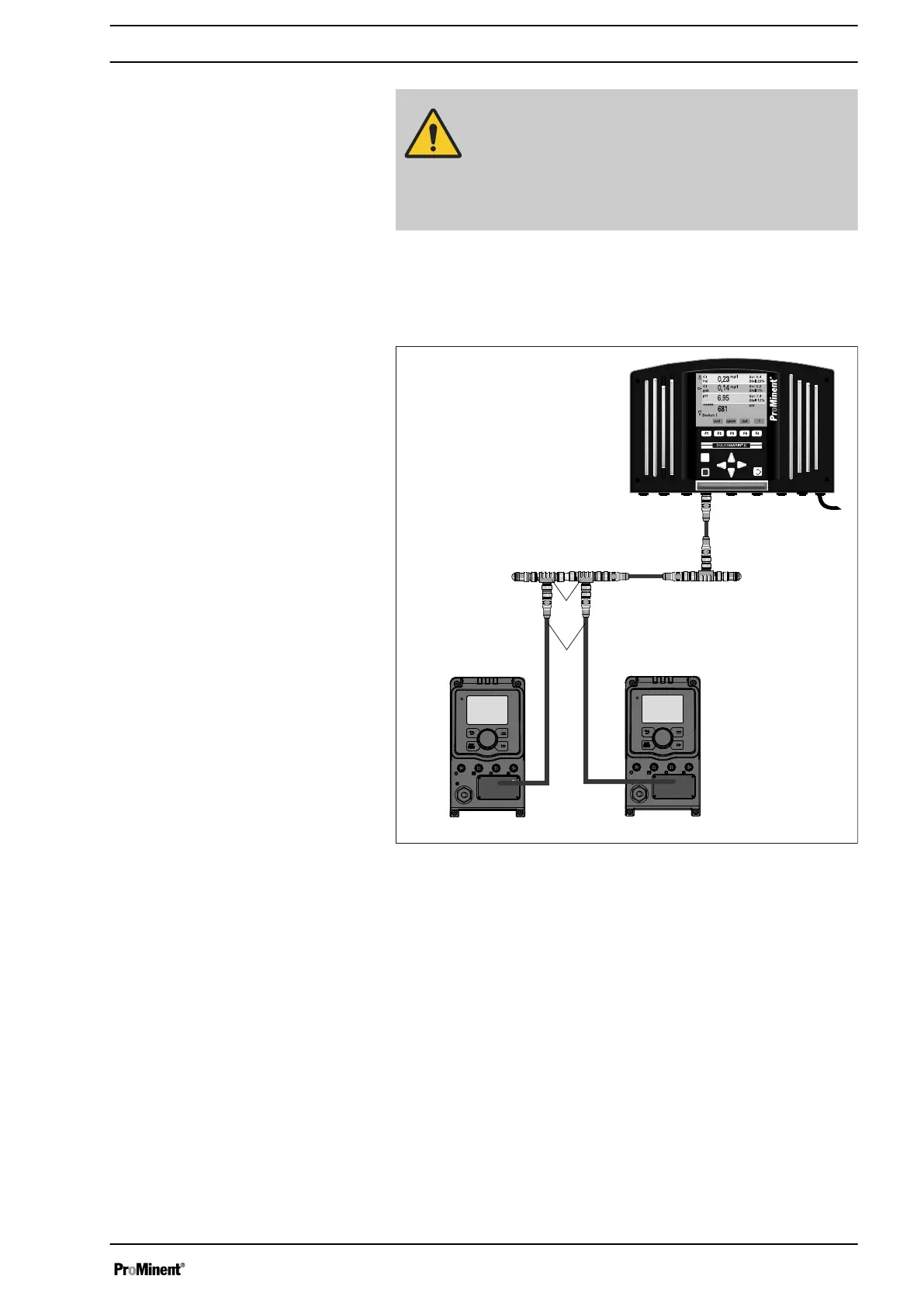

Fig. 4: CAN connector for metering pumps (example with Dulco‐
marin II as control)
5 T-coupler, M 12, 5-pole CAN
6 Termination resistance M12 coupling
7 Termination resistance M12 plug
8 CAN connecting cable CAN connecting cable
9 CAN connecting cable
13 CAN pump gamma/ X e.g. for acid
14 CAN pump gamma/ X e.g. for alkali
Supplementary Operating Instructions CANopen
17

ProMinent gamma/ X Specifications

General

Protection class	IP65
Max. Pressure	25 bar
Power supply	100-230 V, 50/60 Hz
Material of pump head	PVDF, Stainless steel
Temperature range	-10 °C to +45 °C
Type	Diaphragm dosing pump
Stroke length	Adjustable
Stroke frequency	max. 180 strokes/min
Materials in contact with the medium	PVDF, PTFE, stainless steel
Control	Manual, external control via contacts or 0/4-20 mA signal
Control Options	External, potential-free contacts, 0/4-20 mA
Dosing Accuracy	±2%
