ProMinent gamma/ X Supplementary Operating Instructions

Connect the CAN cable to the pump's "Modbus RTU" module
as shown below. For further information, see the documenta‐
tion for your Modbus installation.
9
7
8
6
5
5
8
13
14
P_G_0078_SW

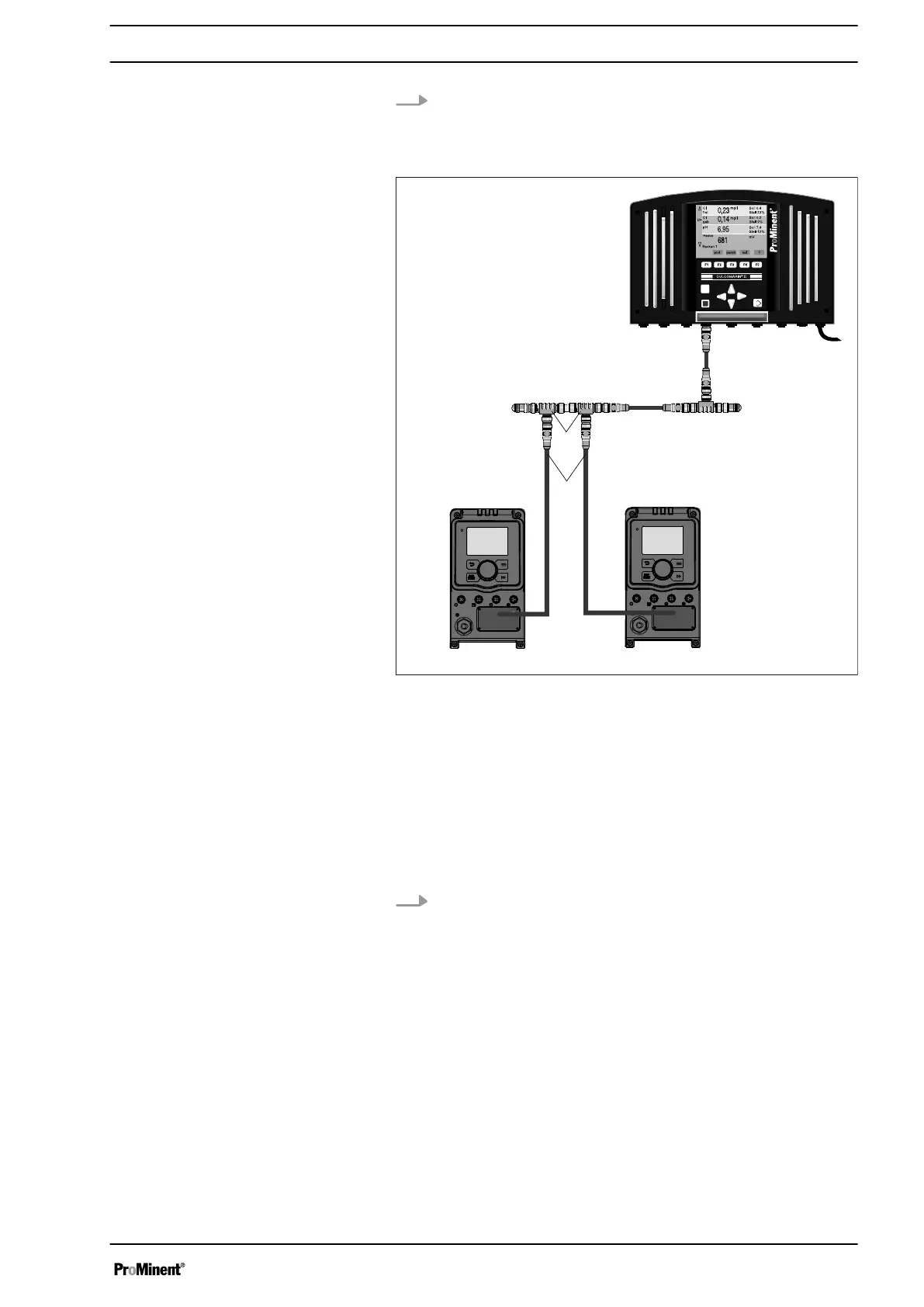

Fig. 10: Modbus connection of metering pumps (example shows a
ProMinent control)
5 T-coupler, M 12, 5-pin. CAN
6 Terminating resistor M 12 coupling
7 Terminating resistor M 12 plug
8 CAN connecting cable CAN connecting cable
9 CAN connecting cable
13 CAN pump gamma/ X e.g. for acid
14 CAN pump gamma/ X e.g. for lye
Insert the metering pump's mains plug into the power socket
- the metering pump may start to pump.
3.4
"Modbus RTU" implementation
This chapter contains general information on the implementation of
the metering pump gamma/ X GMXa into the serial communication
protocol of the Modbus RTU.
The metering pump gamma/ X GMXa acts as a slave (Device 1).
Communication between the metering pump gamma/ X GMXa
(Device 1) and external masters (Device 0) is possible, including a
PLC Programmable Logic Controller.
Supplementary Operating Instructions for Modbus RTU
43

ProMinent gamma/ X Specifications

General

Protection class	IP65
Max. Pressure	25 bar
Power supply	100-230 V, 50/60 Hz
Material of pump head	PVDF, Stainless steel
Temperature range	-10 °C to +45 °C
Type	Diaphragm dosing pump
Stroke length	Adjustable
Stroke frequency	max. 180 strokes/min
Materials in contact with the medium	PVDF, PTFE, stainless steel
Control	Manual, external control via contacts or 0/4-20 mA signal
Control Options	External, potential-free contacts, 0/4-20 mA
Dosing Accuracy	±2%
