Auto-Configuration
Publication ERSC-1008 Rev 1.1 – October 2017

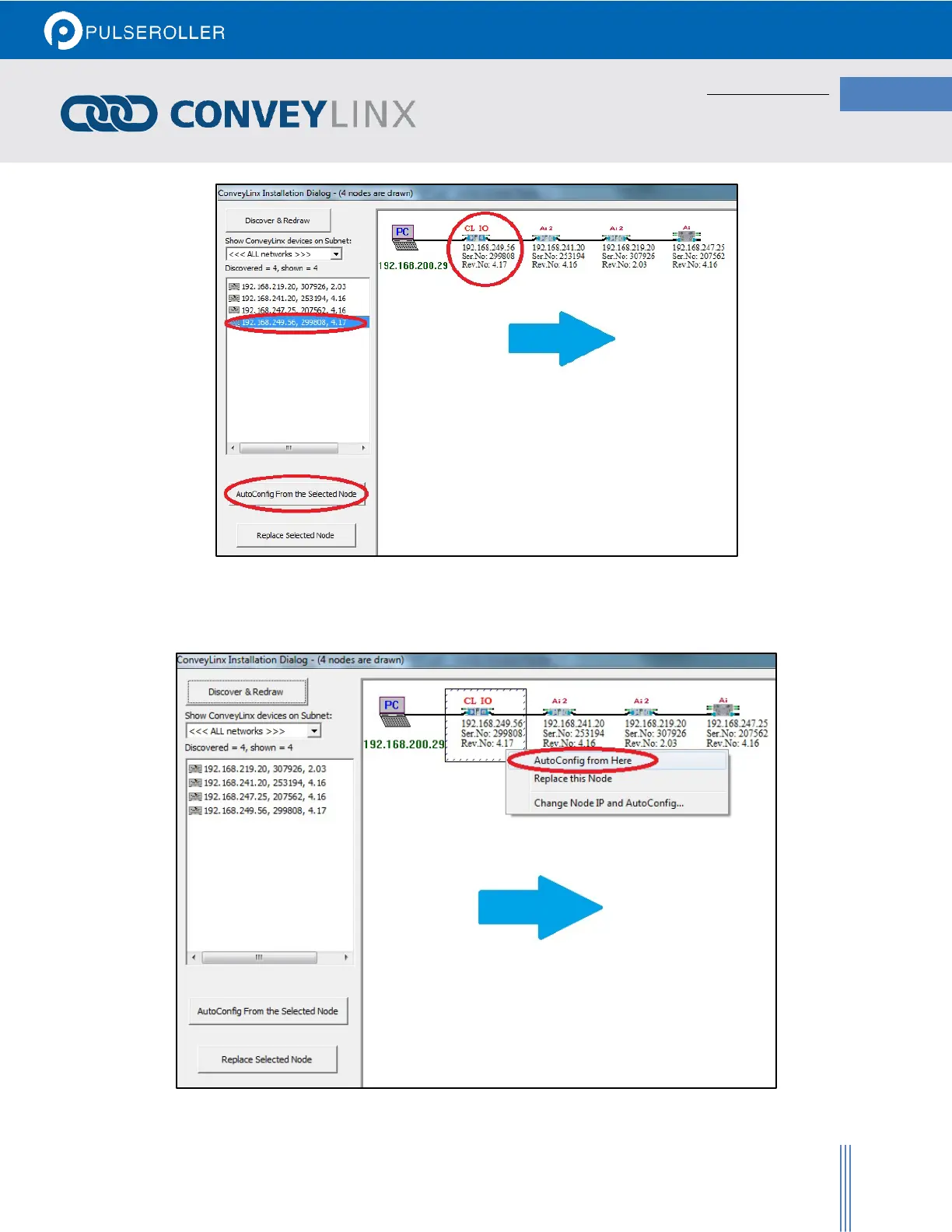

FIGURE 20 – TOPOLOGY VIEW AND INITIATING AUTO-CONFIGURE FROM THE SELECTED NODE
You can also select the module graphic from the topology view and right click to show the context menu and
initiate the Auto-Configuration from there as shown in Figure 21.
FIGURE 21 - AUTO-C O N F I G U R E B Y S E L E C T I NG NODE IN THE TREE VIEW
